Designed for use in small and embedded systems where full-sized PCIe slots are unavailable or impractical, the Magewell Eco Capture Family of cards complements Magewell’s flagship Pro Capture series by offering OEMs and systems integrators a compact capture solution with low power consumption for space-limited applications..
The power consumption of the Magewell Eco Capture cards is 30% to 70% lower (depending on model) than Magewell’s Pro Capture cards with similar input signal connectivity. The products with low power consumption will make it less challenging when users design the heat dissipation system for the chassis.
Superb OS and API Compatibility
M.2 Eco Capture models are available with drivers for Windows and Linux operating systems, and support x86, x64 & ARM architectures. The devices support OS-native capture APIs, while our SDK provides custom Magewell APIs that enable developers to achieve lower-latency capture and synchronize channels across multi-channel or even multiple capture cards.
Flexible Input Interfaces
Eco Capture cards can capture up to four HD signals or one 4Kp60 signal, supporting HDMI, 3G-SDI, quad-link 3G-SDI and single-link 12G-SDI input. All models support up to eight channels of embedded audio per input.
ECO CAPTURE FAMILY
FLEXIBLE INTERFACE CHOICES
Offer single/dual/quad-channel video capture. Support HDMI (up to 4K) or SDI (up to 2K) signals.
Eco Capture Dual HDMI M.2
Eco Capture Dual SDI M.2
Eco Capture HDMI 4K M.2
Eco Capture Quad SDI M.2
Eco Capture AIO M.2
Eco Capture SDI 4K Plus M.2
Eco Capture HDMI 4K Plus M.2
Eco Capture 12G SDI 4K Plus M.2
Offer single/dual/quad-channel video capture. Support HDMI (up to 4K) or SDI (up to 2K) signals.
Power consumption 30%-70% lower (model-dependent) than standard Pro Capture cards with similar input(s).

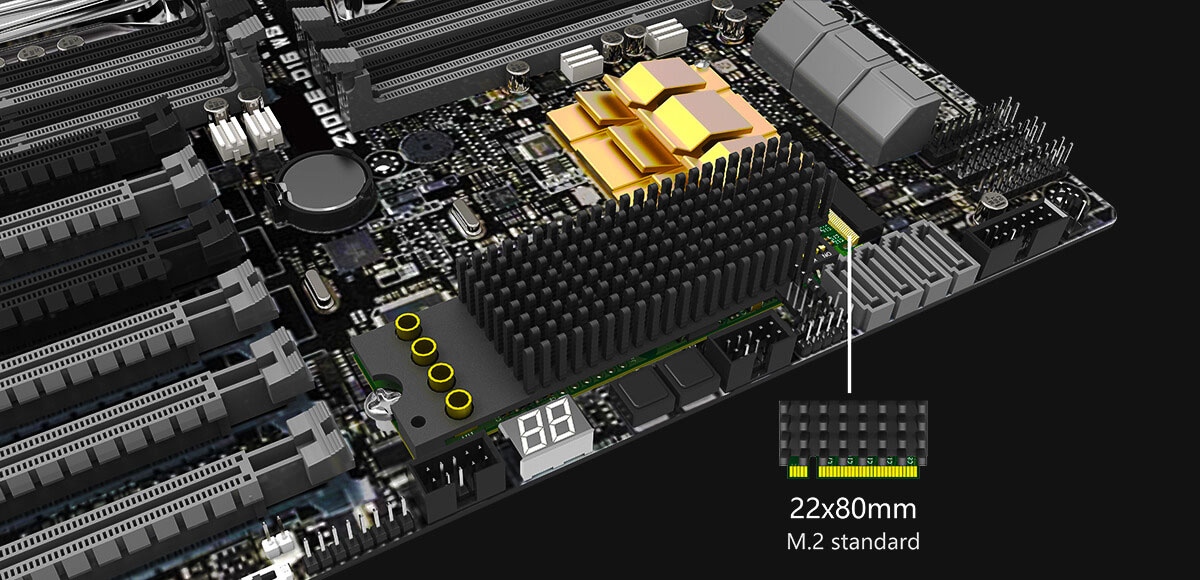

Use high-speed interface with M.2 connector (PCIe Gen2) providing sufficient bandwidth for capturing multiple HD signals or one 4Kp30 signal. The card is in M.2 standard size of 22 x 80 mm.
Users can use the OS and software they are familiar with to ensure high efficiency. COMPATIBILITY OF MULTIPLE OPERATING SYSTEMS Support Windows, Linux. Users can choose their favorite OS. Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64). Linux (based on V4L2, support x86, x64 &ARM architecture). FIRMWARE UPDATE Optimize or enhance the performance or add functions to the products without changing the hardware. Users can update the firmware for multiple cards simultaneously by themselves. POWERFUL AND EASY-TO-INTEGRATE SDK Provide various APIs and advanced functions to Windows and Linux professional users. SOFTWARE COMPATIBILITY Support operating system native video capture APIs, including DirectShow, DirectKS, V4L2, ALSA and QuickTime. Support DirectSound based audio acquisition interface, extended interface based on IKsPropertySet. Compatible with almost all software based on DirectShow architecture.
Users don’t need to select the input signal format to have it correctly recognized.AUTO-DETECTION OF INPUT SIGNAL When the signal is connected, the card will automatically detect the input signal and link the audio input with the video input. SUPPORT 3D HDMI Support 3 types of 3D HDMI signals: frame packed, top-and-bottom, and side-by-side. TIMECODE Eco Capture cards can analyze the time information (hour, minute, second and frame) in HDMI signal output by Sony/Canon DSLR. CLOSED CAPTION Eco Capture SDI cards support closed caption 608 by enabling this function in the driver filter and show the closed caption in the captured video. They can support closed caption 708 when SDK is used.
FPGA-based video processing, effectively reducing CPU usage.
The high-performance Magewell Eco Capture SDI 4K Plus M.2 captures one channel of 4K video up to 4096×2160 at full 60 frames per second over a single-link, 12G-SDI interface.
The Magewell Eco Capture HDMI 4K M.2 Card allows you to connect an HDMI source to your computer and capture up to DCI 4K 4096 x 2160 resolution with embedded audio.
The Magewell Eco Capture Dual SDI M.2 Card supports 2 x SDI input sources simultaneously and allows you to capture up to 2048 x 1080 resolution (via 2K/3G/HD/SD-SDI) with embedded audio from each source to your computer.
The Magewell Eco Capture Dual HDMI M.2 Card supports two HDMI input sources simultaneously and allows you to capture up to 2048 x 2160 resolution with embedded audio from each source to your computer.
