Magewell Pro Capture Family brings you the best quality, performance and value. The cards are compatible with both Windows and Linux so more A/V professional s can experience the incredible cards. You can find a model to meet your need, because Pro Capture Family captures all the popular video signals. A FPGA is used for video processing and data transmission, greatly reducing CPU usage. Various featuresare included to improve the user experience so users can start to capture easily, and the cards maintain stable performance after long periods of use.
Models include; Pro Capture HDMI (2k/4K), Pro Capture SDI (2K/4K), Pro Capture AIO (2K/4K), Pro Capture DVI, Pro Capture Mini PCIe cards with single, dual or quad inputs.

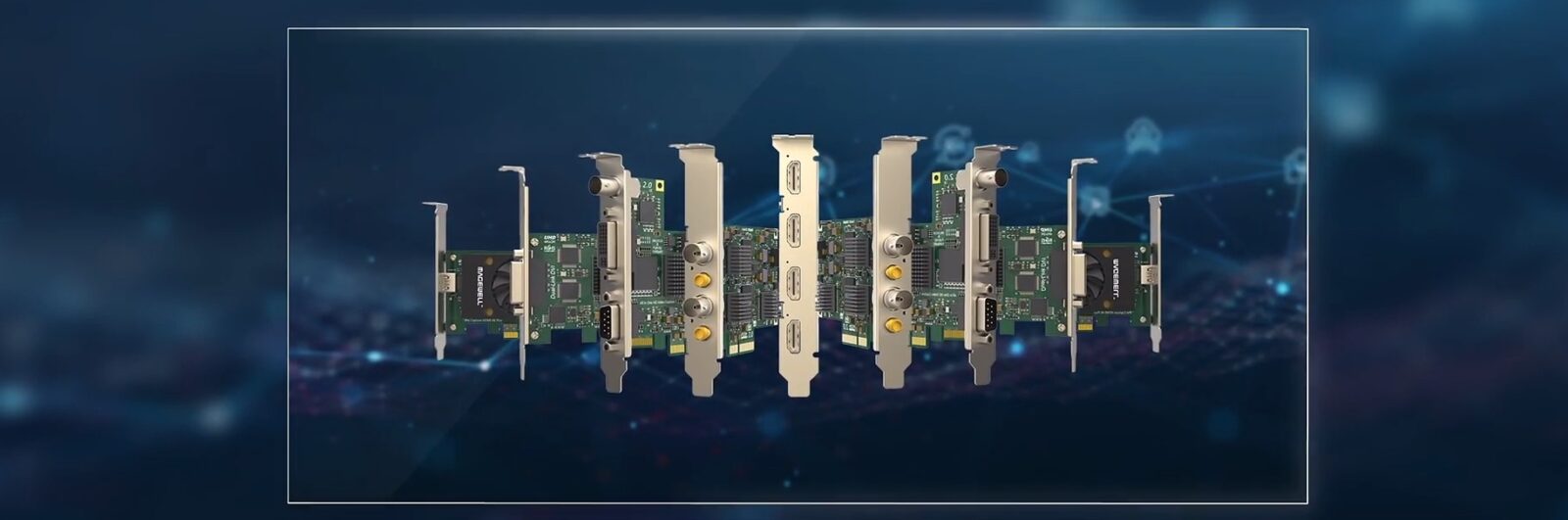

Magewell Pro Capture Range (PCIe)
FULL RANGE OF INTERFACE CHOICES
Magewell provides support to most of the popular signals as well as signal from retro and legacy equipment.
HDMI 6 Models
SDI 4 Models
AIO 3 Models
DVI 3 Models
MINI 2 Models
SD 1 Model
Offer single/dual/quad-channel video capture. Support HDMI (up to 4K), SDI (up to 2K), DVI & SD signals.
Super-low processing and transmission latency down to 64 video lines. For example, the capture latency of 1080p 60Hz and YUY2 can be lower than 1 ms. Low-latency mode doesn't require SDK integration. To further reduce the total latency, users can integrate Magewell SDK to enable partial notification function. Click here for more information.
One video source can be delivered as any number of normal streams or two real-time streams to different software for processing. The resolution, frame rate, deinterlacing mode, image control, etc of each stream can be different. Each stream can reach the set frame rate with no frame drops. For example, users can live broadcast, record and preview a skiing contest simultaneously using Flash Media Live Encoder, Capture Express and Windows Media Encoder. This function causes 0 CPU usage.
Multiple cards can be installed on the same host and work at the same time. Mark the card by setting the number on the rotary switch. There are hexadecimal numbers on the rotary switch. Users can set the number on the rotary switch on each card. The number will appear together with the name of the cards in device manager and video capture software. When multiple same cards are mounted, the user can locate a certain card quickly by the number. Set different numbers on the rotary switches of the cards
Users don’t need to select the input signal format to have it correctly recognized.AUTO-DETECTION OF INPUT SIGNAL When the signal is connected, the card will automatically detect the input signal and link the audio input with the video input. SUPPORT 3D HDMI Support 3 types of 3D HDMI signals: frame packed, top-and-bottom, and side-by-side. TIMECODE Pro Capture cards can analyze the time information (hour, minute, second and frame) in HDMI signal output by Sony/Canon DSLR. CLOSED CAPTION All the Magewell SDI capture cards can support Closed Caption 708 and 608 if Windows SDK is used.
FPGA-based video processing, effectively reducing CPU usage. Up/Down Conversion Color Adjustment Color Space Conversion Crop Hardware timestamp OSD High fidelity video processing pipeline Deinterlacing SG-DMA transmission mode
Magewell Pro Capture DVI 4K Capture 4K resolution video using the low-profile PCI Express x 4 capture card, compatible with DCI 4K and UHD video formats up to 4096 x 2160 for recording, editing, or streaming
Supporting several input signal types, the Magewell Pro Capture AIO 4K card occupies only a single PCIe 2.0 slot in your computer while enabling video capture from a variety of devices. It accepts 6G-SDI, HDMI and DVI-D video signals, up to a maximum resolution of 4096×2160
The Magewell Pro Capture Dual SDI 4K Plus is a two-Channel 4K Capture Card that allows you to capture up to two channels 12-G SDI , four channels 6G-SDI or 8 channels 3G-SDI. Capture two 12G-SDI signals in one of the following connecting methods:
The Magewell Pro Capture mini HDMI is an ideal solution for applications that require the capture of HD sources in real time from a mini sized PCIe card that can be embedded into low form factor equipment
The Magewell Pro Capture SDI 4K Plus card captures a single channel of 4K video at 60 frames per second over single-link 12G-SDI, dual-link 6G-SDI or quad-link 3G-SDI connectivity. Supports video resolutions up to 4096×2160, including the 3840×2160 Ultra HD standard
The Magewell Pro Capture HDMI 4K is a PCIe Gen2 x4 capture card for UHD supports up to 4096×2160 video resolution. It supports HDMI 2.0 video + audio. Capture 4k x 2k, Compatible with Windows and with Linux, included software Capture Express
