Magewell USB Capture
Plug & Play, Driver Free, Automatic input signal detection
USB Capture HDMI Gen 2
USB Capture SDI Gen 2
USB Capture AIO
USB Capture Utility
USB 3.0 FOR DATA TRANSMISSION & POWERFUL SUPPLY
The devices use USB 3.0 interface and no external power is needed. They also support USB 2.0 port, but the real-time frame rate will be reduced due to limited bandwidth. Users can also use a USB 3.0-to-Type C cable to connect it via USB Type C interface on the computer.
COMPATIBILITY OF MULTIPLE OPERATING SYSTEMS
Support Windows, Linux, macOS and Chrome OS.Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64). Linux (Ubuntu 12.04–16.10, CentOS 7). OS X 10.9–10.11. macOS 10.12 ChromeOS.
DESIGNED FOR LONG HOURS OF STABLE WORK
Metal housing to help heat dissipation of the chip. Use USB 3.0 Type A connector, which doesn’t easily get loose after long time of use. A USB Capture passes 7×24 working test in temperature between 0-50 ℃.
SOFTWARE COMPATIBILITY
Support operating system native video capture APIs, including DirectShow, DirectKS, V4L2, ALSA and QuickTime. Support DirectSound based audio acquisition interface, extended interface based on IKsPropertySet. Compatible with almost all software based on DirectShow architecture.
Showing all 3 resultsSorted by latest
-

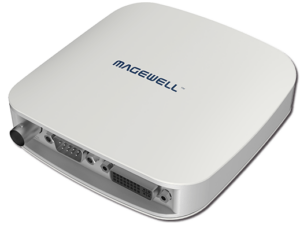

Magewell USB Capture AIO
£485.00 (ex VAT)Magewell PN: 32110
One channel HD Capture Device
- SDI + embedded audio + analog audio
- HDMI + embedded audio + analog audio
- DVI + audio
- VGA + audio
- Component + audio
- Composite + audio
- S-video + audio
Magewell USB Capture AIO is a 12-bit audio & video capture/playback device that supports USB 3.0, and allows you to capture from various input sources.
-
Magewell USB Capture SDI Gen 2
£259.00 (ex VAT)Magewell USB Capture SDI Gen 2
Magewell PN: 32070
One Channel SDI to USB Capture Device- Capture/Import SDI Signals to Computers
- Compatible with Windows, Linux, Mac & Chrome OS
- Connect Broadcast/Surveillance Equipment
- Up to 2048 x 1080 Resolution Support
- Ideal for Recording / Streaming
- 1 x SD/HD/3G/2K SDI Input
- USB 3.0 Interface
The Magewell USB Capture SDI Gen 2 (SDI to USB Capture Device) is a slim and compact dongle that lets you easily import an SDI signal into your computer for recording or streaming. The USB Capture SDI Gen 2 a handy and efficient way of connecting cameras, decks, switchers, and other broadcast and surveillance equipment to your computer.
-
Magewell USB Capture HDMI Gen 2
£259.00 (ex VAT)Magewell USB Capture HDMI Gen 2
Magewell PN: 32060
One Channel HDMI to USB Capture Device- Supports up to 1920 x 1200p60 Resolution
- Performs Frame Rate Conversion
- Compatible with Windows, Linux, Mac & Chrome OS
- Plug-and-Play Using Existing Drivers
- Hardware Scaling and Deinterlacing
- 1 x HDMI Input
- USB 3.0 Interface
Magewell USB Capture HDMI Gen 2 allows users to record or stream an HDMI signal via USB 3.0. With its HDMI v1.4a input, the USB Capture device support resolutions up to 1920 x 1200p60. If you need to stream or record at a certain resolution, the USB Capture HDMI will internally up- or down-covert the input signal to the set resolution.
