Magewell Eco Capture HDMI 4K M.2

Magewell PN: 11520

Single channel 4k capture card

  • Captures one channels of 4K video up to 4096×2160 (including 3840×2160 Ultra HD)  with HDMI + embedded audio
  • Ultra-compact M.2 2280 size (22x80mm / 0.87” x 3.15”)
  • M.2 2280 type M (PCIe Gen2 x4)
  • Windows/Linux

Quote Me

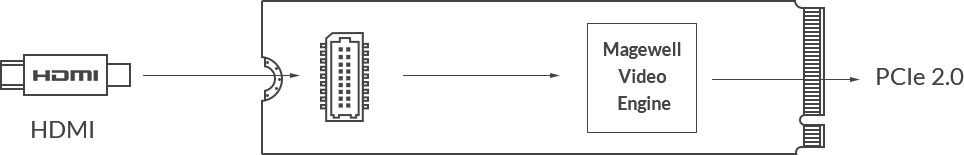

The Magewell Eco Capture HDMI 4K M.2 Card allows you to connect an HDMI source to your computer and capture up to DCI 4K 4096 x 2160 resolution with embedded audio.

Description

Magewell Eco Capture HDMI 4K M.2

The first three models in the Eco Capture family each feature a high-speed PCIe 2.0 bus interface with an M.2 connector; enabling multi-channel HD or single-channel 4K (Ultra HD) capture. The dual-channel Eco Capture Dual HDMI M.2 and Eco Capture Dual SDI M.2 capture; HD or 2K video up to 1080p60 over HDMI or SDI interfaces, respectively; while the Magewell Eco Capture HDMI 4K M.2 captures video up to 4096×2160 at 30 frames per second via HDMI. All three configurations also support up to 8 channels of embedded audio.

The three initial Eco Capture models each measure 22x80mm (0.87×3.15in), matching the M.2 2280 standard specification. The power consumption of the Eco Capture cards is 30% to 70% lower (depending on model) than Magewell’s Pro Capture cards with similar input signal connectivity.

Magewell Eco Capture HDMI 4K M.2



Stream replication enables each input channel to be delivered to multiple software applications simultaneously with identical capture parameters, enabling concurrent functionality such as encoding, recording and preview through distinct tools. High-quality video processing functions including up/down/cross-scaling, image controls and color space conversion are performed by the cards’ on-board FPGA. Thus reducing CPU usage, while additional processes such as frame rate conversion and de-interlacing are available in software through the included drivers or third-party applications.

Two options are provided to support different input connectivity

Part Number: 11524

Magewell Eco Capture HDMI 4K M.2 Magewell Eco Capture HDMI 4K M.2 Magewell Eco Capture HDMI 4K M.2

Part Number : 11520

Magewell Eco Capture HDMI 4K M.2 Magewell Eco Capture HDMI 4K M.2 Magewell Eco Capture HDMI 4K M.2
The M.2 Eco Capture models  are available with drivers for Windows and Linux operating systems. OS-native capture APIs including DirectShow, DirectKS; V4L2 and ALSA is supported. A comprehensive SDK will be offered for developers to directly access the full feature set of the cards.
Low Power Consumption – Multiple Replicated Capture Streams – Low Latency Mode – Multiple Devices on One Host – Mounting Hole – Continuously Work for 24hx7 – Windows & Linux SDK – 2-year Warranty – Dip Switch – LED Status Indicator



InterfaceVideo EngineSignal Detection & SupportSoftware EnvironmentOthers
Input Interface
• HDMI x1
• Support input resolution up to 4096×2160 pixels

Host Interface
• M.2(PCIe Gen2 x4)
8-bit video processing

Deinterlace

Cropping

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

SG-DMA Transmission mode
Auto Detection of Input Signal Format

3D HDMI

Time Code
OS
• Windows, Linux, Mac

Driver and Firmware
• Universal Driver, Updatable Firmware

Included Software
• Pro Capture Utility, Capture Express

Compatible Software
50+
Low Power Consumption

Multiple Replicated Capture Streams

Low Latency Mode

Multiple Devices on One Host

Mounting Hole

Continuously Work for 24hx7

Windows&Linux SDK

2-year Warranty

Dip Switch

LED Status Indicator



Additional information

Part Number:

Without Cables, HDMI Cables Included, DVI Cables Included

Specifications

Supported OSWindows
• Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture)
• Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64)
• CentOS 6.5/7 (x86 & x64)
• Fedora 25/26/27 (x86 & x64)
• Red hat 6.5 and above (x86 & x64)
• Other Linux OS with kernel version 2.6.35 and above
Recommended OS (tested)Windows
• Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
• Ubuntu 12.04/14.04/16.04 (x86 & x64)
• Ubuntu 17.04/17.10 (x64)
• CentOS 6.5/7.2 (x86 & x64)
• Fedora 25/26 (x64)
• Red hat 6.5 (x86 & x64)
Supported APIsWindows
• DirectShow
• DirectKS
• Wave API/DirectSound/WASAPI
Linux
• V4L2
• ALSA
Supported SoftwareVLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software
Input InterfacesJST SHD 20-Pin socket
• DVI 1.0
• HDMI 1.4
Host InterfaceM.2 2280 Type M (PCIe Gen2 x4)
Input featuresSupport for input video resolutions up to 4096x2160 pixels
HDMI Specific Features297MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Support for RGB/YUV 4: 4: 4 8-bit format signals with a pixel frequency of no more than 297MHz
Support for YUV 4:2:2 12-bit format signals with a pixel frequency of no more than 297MHz
Support for RGB/YUV 4:4:4 10/12-bit format signals with a pixel frequency of no more than 170MHz
Support for up to 8-channel IEC60958/IEC61937 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for extraction of Sony/Canon DSLR time code
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode
Video Capture FormatsSupport for capture image resolutions up to 4096x2160 pixels
Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth & image resolution)
Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
More capture formats are supported via Magewell Capture SDK for DirectKS
Video Processing Featuresvideo processing pipeline with ~360Mpixels/s processing bandwidth
8-bit 4:4:4 video processing
Video cropping
Video scaling
Video de-interlacing
• Weave
• Blend top & bottom field
• Top field only
• Bottom field only
Video aspect ratio conversion
• Auto or manual selection of input aspect ratio
• Auto or manual selection of capture aspect ratio
• Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
• Auto or manual selection of input color format & quantization range
• Auto or manual selection of capture color format, quantization range & saturation range
• Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
• Support for Limited or Full quantization range
• Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Multiple Cards per SystemSupport for multiple cards plugged to one system
On-board dip switch to set card number with 16 positions
System hardware device tree will display “01: Eco Capture HDMI 4K M.2” when dip switch is set to 0001, and so on
The video and audio device names displayed in your software will include the card number (set by the dip switch)
Multiple Replicated Capture StreamsUnlimited capture streams for any one input channel, but the capture streams should be in the same capture format.
Timestamp & A/V SynchronizationHardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA~1200MB/s per channel DMA bandwidth in PCIe 2.x system
~800MB/s per channel DMA bandwidth in PCIe 1.x system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipsets
SDKMagewell Capture SDK for DirectShow for easy integration (Windows)
Magewell Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver TweaksAll options can be controlled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade
Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.
LED Indicator
Status LEDs indicate the working state of each channel:
• Pulsing slowly: idle
• On: input signal locked
• Off: input signal unlocked
• Double blinks: memory failed or FPGA configuration failed
Form FactorM.2 2280 standard size
Power ConsumptionMax current at 3.3V: ~ 1.12 A
Max power consumption: ~ 3.75 W
Working EnvironmentOperating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

Accessories

Magewell Eco Capture HDMI 4K M.2 Magewell Eco Capture HDMI 4K M.2 Magewell Eco Capture HDMI 4K M.2

1 x SHD to HDMI type A breakout

Part number: 90070

It is included when you order Part number 11520

1 x FPC to HDMI type A adapter

Part number: 90092

It is included when you order Part number 11524

1 x FPC ribbon cable (10 cm)

Part number: 90091

It is included when you order Part number 11524
