Eco Capture HDMI 4K Plus M.2

£625.00 (ex VAT)

Eco Capture HDMI 4K Plus M.2

Single channel 4Kp60 capture card

SKU:
  • Captures one-channel HDMI + embedded audio
  • High throughout for capture and supports higher frame rates
  • M.2 2280 standard size for small or portable systems

Quote Me

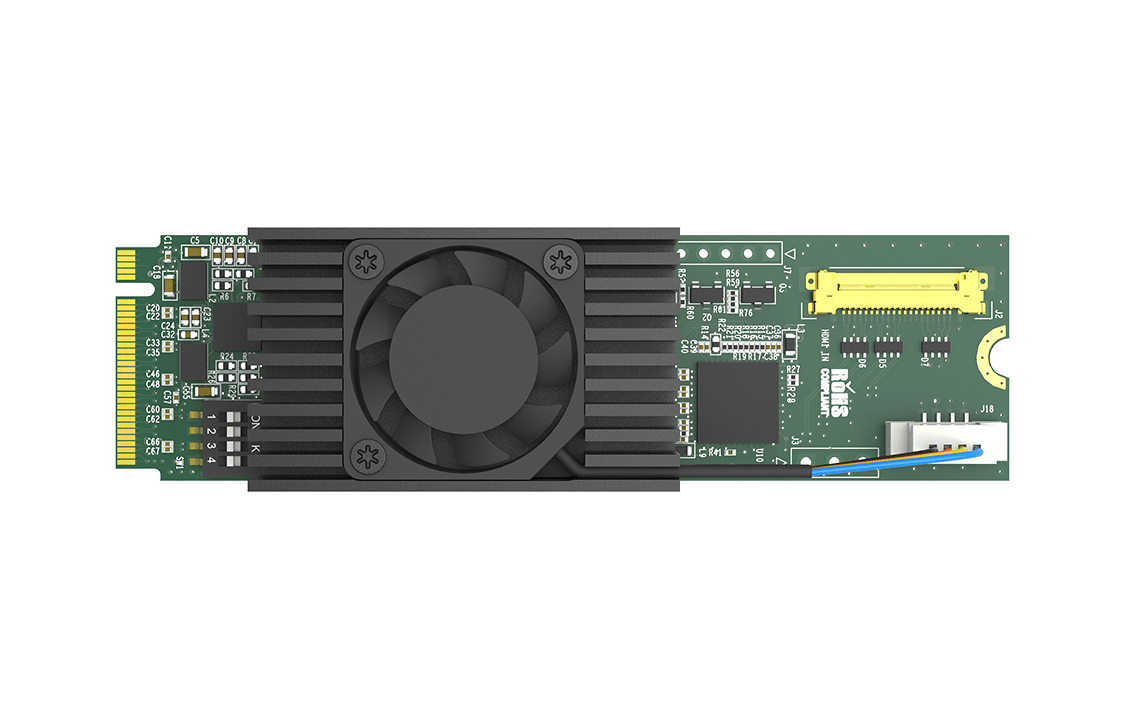

The Magewell Eco Capture HDMI 4K Plus M.2

Description

Magewell Eco Capture HDMI 4K Plus M.2

The Magewell Eco Capture HDMI 4K Plus M.2, Captures one-channel HDMI + embedded audio, High throughout for capture and supports higher frame rates

Ideal for use in small and embedded systems where full-sized PCIe slots are not available. The cost-effective Eco Capture family offers systems integrators and OEM developers a robust capture solution with low power consumption for space-constrained applications. The low-latency Eco Capture devices feature a high-speed PCIe 2.0 bus interface with an M.2 connector and measure just 22x80mm (0.87×3.15in), matching the M.2 2280 size specification.
interface-eco capture hdmi 4k   eco capture hdmi 4k plus

Specifications and Features

Interface

Input Interface

  • HDMI x1
  • Supports input resolution up to 4096×2160 60fps

Host Interface

  • M.2 2280 Type M (PCIe Gen3 x4)

Video Engine

  • Auto detection of input signal format
  • Color formats conversion
  • Low latency mode
  • SG-DMA transmission mode
  • Multiple replicated capture streams

Software

Others

  • 2-year warranty
  • Continuously work for 24hx7
  • LED status indicator
  • Multiple devices on one host
  • On-board dip switch to set card number

Specifications

Eco Capture HDMI 4K Plus M.2 Specifications

document Download

Input Features

  • 594MHz HDMI receiver, max input video: 4096×2160 4:4:4 60fps
  • Max input audio: 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate
  • Support input RGB/YUV 4:4:4 8-bit, YUV 4:2:2 12-bit, or RGB/YUV 4:4:4 10/12-bit signals up to 594MHz pixel clock
  • Support up to 8-channel IEC60958/IEC61937 audio streams via SDK
  • Support HDR10
  • HDMI input interface: LVDS 0.5PH 20-Pin to DVI-D 1.0, HDMI 2.0

Process and Capture Features

  • ~2400MB/s per channel DMA bandwidth in PCIe 3.x system
  • ~1600MB/s per channel DMA bandwidth in PCIe 2.x system
  • ~800MB/s per channel DMA bandwidth in PCIe 1.x system
  • Video processing pipelines with ~360Mpixels/s processing bandwidth
  • Capture videos up to 4096×2160, frame rates up to 240fps. Typical outputs include (actual capture frame rate can be limited by the PCIe bandwidth and internal working frequency.):
    • 4096x2160p 5/10/15/25/29.97/30/50/60
    • 3840x2160p 5/10/15/25/29.97/30/50/60
    • 1920x1080p 5/10/15/25/29.97/30/50/60/120
    • 1280x720p 5/10/15/25/29.97/30/50/60/120 etc.
  • Output NV12/I420/YUYV/UYVY/RGB24/RGB32 videos
  • Support custom output formats using Magewell Capture SDK
  • Support custom EDID, video scaling, de-interlacing, color format conversion and frame rate conversion
  • Support multiple replicated capture streams, and unlimited capture streams for any one input channel with the same format
  • Support timestamp & A/V synchronization
    • Hardware based 100ns high resolution clock
    • Audio frames (192 audio samples) & video frames are stamped with hardware clock
    • Hardware clock can be synchronized across cards via SDK
  • Support firmware upgrade

SDK & APIs

  • The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
  • Windows DirectShow/DirectKS/Wave API/DirectSound/WASAPI
  • Linux V4L2/ALSA

Supported OS

  • Windows 10/11/Server 2016 (x86 & x64) and above
  • Linux (x86, x64 & ARM architecture)

Input Interfaces

  • LVDS 0.5PH 20-Pin (Part number: 11580)
    • DVI-D 1.0
    • HDMI 2.0

Host Interfaces

  • M.2 2280 Type M (PCIe Gen3 x4)

Supported Softwares

  • VLC
  • VirtualDub
  • OBS
  • XSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Adobe Flash Media Encoder
  • Any other DirectShow/V4L2 encoding/streaming software

LED Indicator

  • Status LEDs indicate the working state of each channel:
    • Pulsing slowly: input signal unlocked
    • On: input signal locked
    • Double blinks: memory failed or FPGA configuration failed
    • Off: firmware or power supply abnormal

Form Factor

  • M.2 2280 standard size (22 mm x 80 mm)

Accessories

  • LVDS 0.5PH 20-Pin cable (Part number: 11580)
  • LVDS 0.5PH 20-Pin to HDMI adapter (Part number: 11580)

Power Consumption

  • Max current at 3.3V: ~ 2 A
  • Max power consumption: ~ 6.6 W

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing

Accessories



cable hdmi adapter

1 x LVDS 0.5PH 20-Pin cable
Part number: ACC00160

1 x LVDS 0.5PH 20-Pin to HDMI adapter

DownLoads

Download: Eco Capture Drivers

Download: User Manual for Eco Capture Family
