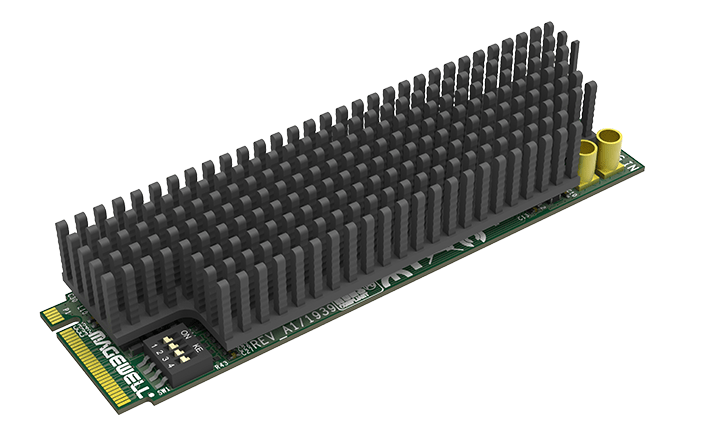

Magewell Eco Capture SDI 4K Plus M.2

Magewell PN:

Single channel 4K capture card

SKU: 115600000

  • Captures SD/HD/3G/6G/12G SDI + embedded audio

Quote Me

The high-performance Magewell Eco Capture SDI 4K Plus M.2 captures one channel of 4K video up to 4096×2160 at full 60 frames per second over a single-link, 12G-SDI interface.



Description

Magewell Eco Capture SDI 4K Plus M.2 – This high-performance card captures one channel of 4K video up to 4096×2160 at full 60 frames per second over a single-link, 12G-SDI interface.

Ideal for use in small and embedded systems where full-sized PCIe slots are not available. The cost-effective Eco Capture family offers systems integrators and OEM developers a robust capture solution with low power consumption for space-constrained applications. The low-latency Eco Capture devices feature a high-speed PCIe 2.0 bus interface with an M.2 connector and measure just 22x80mm (0.87×3.15in); matching the M.2 2280 size specification.

The new 4K 12G-SDI model joins four existing Eco Capture M.2 configurations; a single-channel model that captures 4K video at 30fps via an HDMI interface; dual-channel models that capture HD and 2K video over HDMI or SDI; and a quad-channel HD/2K model with SDI inputs. All five Eco Capture products also support up to eight channels of embedded audio per input.

Interface

Magewell Eco Capture SDI 4K Plus M.2

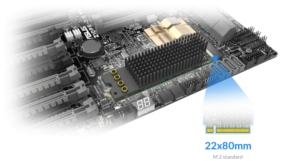

Standard Size & High-Speed Interface

Use high-speed interface with M.2 connector (PCIe Gen2) providing sufficient bandwidth for capturing multiple HD signals or one 4Kp30 signal. The card is in M.2 standard size of 22 x 80 mm.

Eco Capture SDI 4K Plus M.2

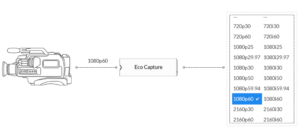

Auto-Detection of Input Signal

When the signal is connected, the card will automatically detect the input signal and link the audio input with the video input.

Magewell Eco Capture SDI 4K Plus

The Magewell Eco Capture SDI 4K Plus M.2 model is available with drivers for Windows and Linux operating systems. OS-native capture APIs including DirectShow, DirectKS, V4L2 and ALSA are supported; and a comprehensive SDK enables developers to directly access the full feature set of the cards. The Eco Capture family also provides advantages for manufacturers of products such as smart displays by delivering lower latency than processor architectures often used in System-on-a-Chip devices.

Stream replication enables each input channel to be delivered to multiple software applications simultaneously with identical capture parameters. FPGA-based video processing provides high-quality up/down/cross-scaling, picture controls and color space conversion without tasking the host system CPU.

Specifications

Supported OSWindows
• Windows
Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
• Linux (support x86, x64 & ARM architecture)
• Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
• CentOS 6.5/7 (x86 & x64)
• Fedora 25/26/27 (x86 & x64)
• Red hat 6.5 and above (x86 & x64)
• Other Linux OS with kernel version 2.6.35 and above
Recommended OS (tested)Windows
• Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
• Ubuntu 12.04/14.04/16.04 (x86 & x64)
• Ubuntu 17.04/17.10/18.04 (x64)
• CentOS 6.5/7.2 (x86 & x64)
• Fedora 25/26 (x64)
• Red hat 6.5 (x86 & x64)
Supported APIsWindows
• DirectShow
• DirectKS
•Wave API/DirectSound/WASAPI
Linux
• V4L2
• ALSA
Supported SoftwareVLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software
Input InterfacesMMCX
• SD/HD/3G/6G/12G SDI
Host InterfaceM.2 2280 Type M (PCIe Gen2 x4)
Input featuresSupport for input video resolutions up to 4096x2160 pixels
SDI Specific FeaturesIntegrated cable equalizer supporting cable lengths up to 230M for HD signals
Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS/6G/12G standards
Support for 4K (4096x2160) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 8 (mono) audio channels at 48KHz
Support for extraction of audio formation information & channel status data
Support for Closed Caption via SDK
Video Capture FormatsSupport for capture image resolutions up to 4096x2160 pixels
Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth. )
Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
Support for 4:4:4 10-bit capture formats: V410, Y410
More capture formats are supported via Magewell Capture SDK for DirectKS
Video Processing FeaturesVideo processing pipelines with ~720Mpixels/s processing bandwidth
10-bit 4:4:4 video processing
Video scaling
Video de-interlacing
• Weave
• Blend top & bottom field
Video color format conversion
• Auto or manual selection of input color format & quantization range
• Auto or manual selection of capture color format, quantization range & saturation range
• Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
• Support for Limited or Full quantization range
• Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Multiple Cards per SystemSupport for multiple cards plugged to one system
On-board dip switch to set card number with 16 positions
System hardware device tree will display “01: Eco Capture SDI 4K Plus M.2” when dip switch is set to 0001, and so on
The video and audio device names displayed in your software will include the card number (set by the dip switch)
Multiple Replicated Capture StreamsUnlimited capture streams for any one input channel, but the capture streams should be in the same capture format.
Timestamp & A/V SynchronizationHardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA~1600MB/s per channel DMA bandwidth in PCIe 2.x system
~800MB/s per channel DMA bandwidth in PCIe 1.x system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipsets
SDKMagewell Capture SDK for DirectShow for easy integration (Windows)
Magewell Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver TweaksAll options can be controlled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade
Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version.
LED Indicator
Status LEDs indicate the working state of each channel:
• Pulsing slowly: idle
•On: input signal locked
• Off: input signal unlocked
• Double blinks: memory failed or FPGA configuration failed
Form FactorM.2 2280 standard size
AccessoriesMMCX to BNC cable
Power ConsumptionMax current at 3.3V: ~ 2.17 A
Max power consumption: ~ 7.16 W
Working EnvironmentOperating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

Accessories

Magewell Eco Capture SDI 4K Plus M.2

1 x MMCX to SDI breakout

Part number: 90052
