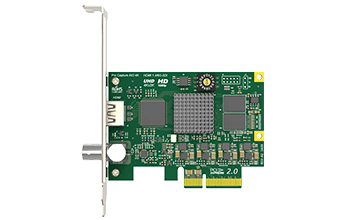

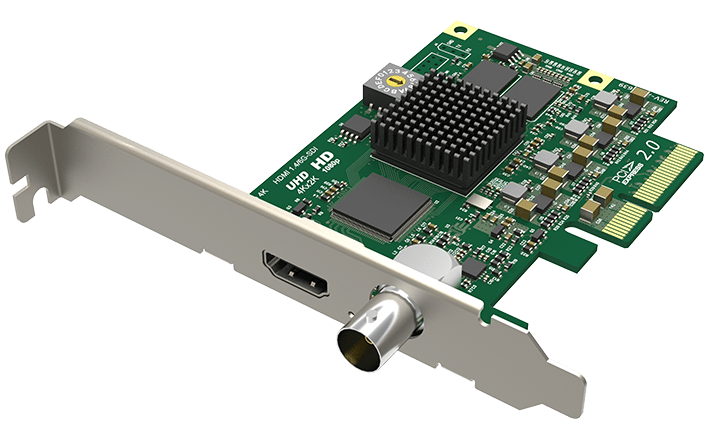

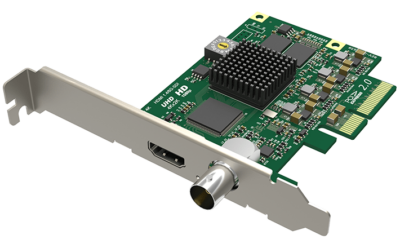

Magewell Pro Capture AIO 4K ¦ All in One HD One Channel Capture Card

Description

Magewell Pro Capture AIO 4K is a single channel 4K resolution video with embedded audio, is compatible with DCI 4K and UHD video formats up to 4096 x 2160, and inputs using either its HDMI or SDI (BNC) ports. Capture uncompressed video and audio from a camera or switcher on your computer for recording, editing, or streaming.

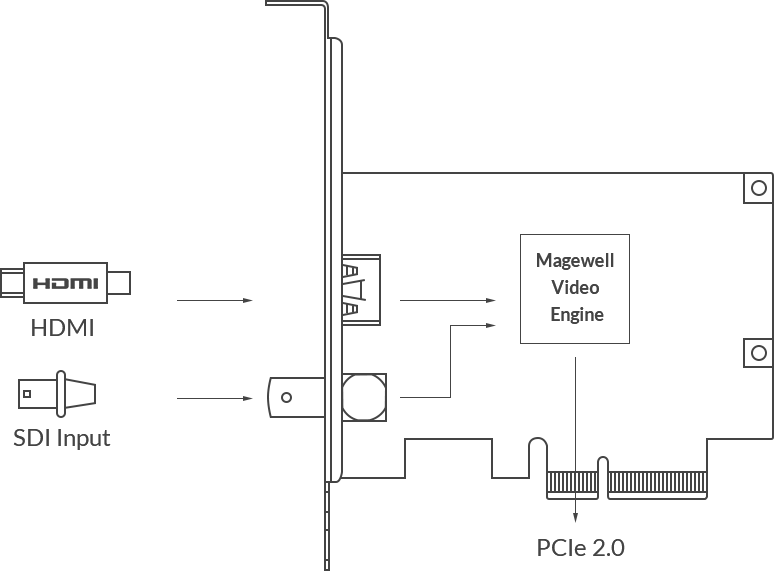

The Pro Capture AIO 4K provides a flexible choice of input connectivity, capturing one channel of 4K video at up to 30 frames per second (or HD/2K video at higher frame rates) over its HDMI 1.4 or 6Gbps SDI interfaces. Input video can be fed to multiple software applications simultaneously, with independent control of resolution, frame rate and processing.

Captures one channel of 4K video at up to 30fps over HDMI 1.4 or 6Gbps SDI interfaces with embedded audio
Supports video resolutions up to 4096×2160, including the 3840×2160 Ultra HD television standard
Input video can be routed to multiple software applications simultaneously, with independent control of resolution, frame rate and processing
10-bit, zero-CPU, FPGA-based video processing including up/down/cross-conversion, de-interlacing, video adjustments, graphic overlay and more
Automatic input signal and format detection
PCIe 2.0 host interface
Compatible with Windows, Mac and Linux operating systems and popular APIs including DirectShow and V4L2
Comprehensive SDK for custom third-party development

Multiple Pro Capture cards may be installed per system, limited only by the number of physical PCIe slots available. The number of Output streams are unlimited, and settings for each stream can be independently customised and adjusted. Works with Windows, Mac and Linux Operating Systems, supports multiple APIs for Windows and Linux, and provides Windows SDKs for ease of integration.

The Magewell Pro Capture AIO 4K comes in two variants: The AIO 4K and AIO 4K Plus. The “Plus” model supports higher PCIe bus speeds for a larger video capture bandwidth.

Interface	Video Engine	Signal Detection & Support	Software Environment
Input Interface • HDMI x1 • SD/HD/3G/6G SDI x1 • Support input resolution up to 4096×2160 pixels Host Interface PCIe Gen2 x4	10-bit video processing Deinterlace Cropping Color Adjustment Hardware Timestamp Color Space Conversion Up/down Conversion Aspect Ratio Conversion OSD SG-DMA Transmission mode	Auto Detection of Input Signal Format 3D HDMI Time Code Closed Caption	OS • Windows, Linux, Mac Driver and Firmware • Universal Driver, Updatable Firmware Included Software • Capture Express Compatible Software 50+

Pro Capture Documentation

Pro Capture Driver Download
Compatible Software

Specifications

Supported OS	Windows • Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) Linux (support x86, x64 & ARM architecture) • Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64) • CentOS 6.5/7 (x86 & x64) • Fedora 25/26/27 (x86 & x64) • Red hat 6.5 and above (x86 & x64) Other Linux OS with kernel version 2.6.35 and above Mac • OS X 10.9/10.10/10.11 • macOS 10.12 and above
Recommended OS (tested)	Windows • Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64) Linux • Ubuntu 12.04/14.04/16.04 (x86 & x64) • Ubuntu 17.04/17.10/18.04 (x64) • CentOS 6.5/7.2 (x86 & x64) • Fedora 25/26 (x64) • Red hat 6.5 (x86 & x64) Mac • OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4 • macOS 10.12/10.13.2/10.13.3/10.14.3
Supported APIs	Windows • DirectShow • DirectKS • Wave API/DirectSound/WASAPI Linux • V4L2 • ALSA
Supported Software	VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2 encoding/streaming software

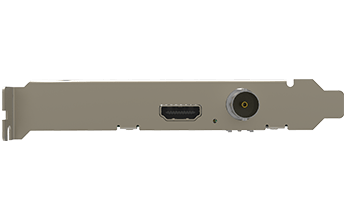

Input Interfaces	HDMI • DVI-D 1.0 • HDMI 1.4 BNC • SD/HD/3G/6G SDI
Host Interface	PCIe Gen2 x2
Input features	Support for input video resolutions up to 4096x2160 pixels
HDMI Specific Features	297MHz HDMI receiver Adaptive HDMI equalizer Support for customized EDID Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames Full colorimetry support Support for 8-bit signals that use RGB/YUV 4:4:4 color sampling at pixel rate no more than 297MHz Support for 12-bit signals that use YUV 4:2:2 color sampling at pixel rate no more than 297MHz Support for 10/12-bit signals that use RGB/YUV 4:4:4 color sampling at pixel rate no more than 170MHz Support for extraction of audio formation information & channel status data Support for extraction of video timing information Support for extraction of 3D format information Support for extraction of Sony/Canon DSLR time code Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
SDI Specific Features	Integrated cable equalizer supporting cable lengths up to 230M for HD signals Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS/6G (SMPTE 2081) standards Support for 2K (2048x1080) & 4K (4096x2160) mode Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling Support for 10/12-bit color depth Support for extraction of SMPTE 352 payload identifier Support for up to 8 (mono) audio channels at 48KHz (channels 1–8 from the 16 available in the SDI spec) Support for extraction of audio formation information & channel status data Limited support of 3Gb-DS: only the first stream can be captured Limited support for capture of the first link of dual link interfaces: • YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60 • YCbCr 4:4:4 10-bit: captured as 4:2:2 • RGB 4:4:4: R/B sub-sampled Support for Closed Caption
Video Capture format	Support for capture image resolutions up to 4096x2160 pixels Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth & image resolution) Support for 4:2:0 8-bit capture formats: NV12, I420, YV12 Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32 Support for 4:4:4 10-bit capture formats: V410, Y410 More capture formats are supported via Magewell Capture SDK for DirectKS
Video Processing Features	Two video processing pipelines with ~360Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing • Weave • Blend top & bottom field • Top field only • Bottom field only Video aspect ratio conversion • Auto or manual selection of input aspect ratio • Auto or manual selection of capture aspect ratio • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video color format conversion • Auto or manual selection of input color format & quantization range • Auto or manual selection of capture color format, quantization range & saturation range • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats • Support for Limited or Full quantization range • Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video OSD composition • Support for PNG OSD image (up to 4096x2160) • Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System	Support for multiple cards plugged to one system On-board rotary switch to set card number, with 16 positions from 0 to F System hardware device tree will display “01: Pro Capture HDMI 4K” when rotary switch is set to 1, and so on The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Capture Streams	Unlimited capture streams for any one input channel Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support	Latency of 64 video lines Partial notification mode in SDK
Timestamp & A/V Synchronization	Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA	~1200MB/s per channel DMA bandwidth in PCIe 2.x system ~800MB/s per channel DMA bandwidth in PCIe 1.x system Support for auto detection of Intel tiled GPU surface Support for DirectGMA for AMD video adapter chipsets Support for GPUDirect for Nvidia video adapter chipsets
SDK	Magewell Capture SDK for DirectShow for easy integration (Windows) Magewell Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver Tweaks	All options can be controlled by three levels of registry key: global level, product level and device level Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade	Multiple cards in one system can be upgraded simultaneously Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed) Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.
LED Indicator	Status LEDs indicate the working state of each channel: • Pulsing slowly: idle • On: input signal locked • Off: input signal unlocked • Double blinks: memory failed or FPGA configuration failed
Form Factor	Low profile PCIe x4 Add-on Card 92.79mm x 68.43mm (without PCI bracket)
Power Consumption	Max current at 12V: ~ 0.39 A Max current at 3.3V: ~ 0.2 A Max power consumption: ~ 5.29 W
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing
