Magewell Pro Capture AIO 4K Plus

Magewell PN: 11140

One channel 4K Capture Card

  • SDI + embedded audio
  • HDMI + embedded audio
  • Capture 4k x 2k
  • PCIe Gen2 x4 Interface
  • Compatible with Windows, Mac & Linux

Quote Me

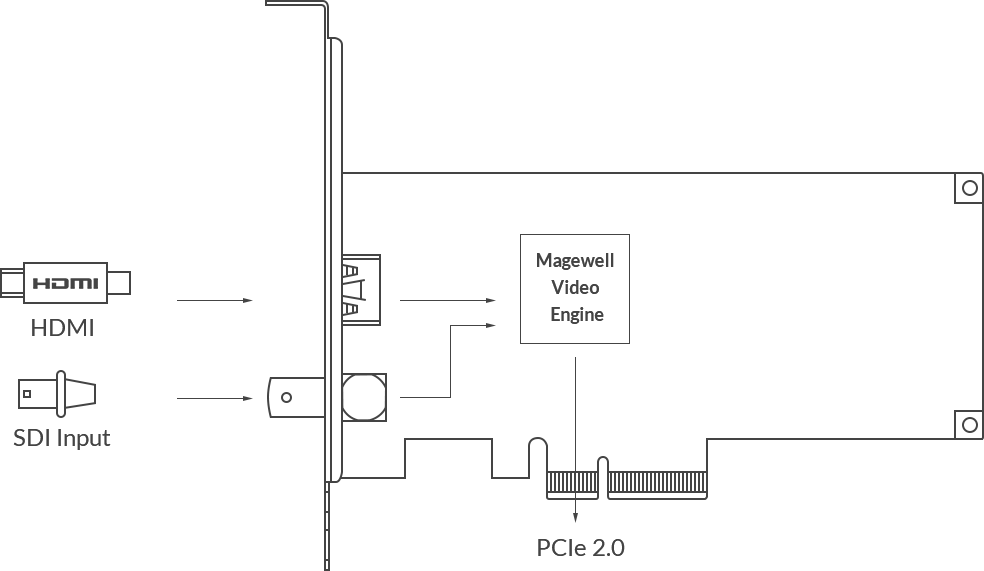

The Magewell Pro Capture AIO 4K Plus (1-Channel)  s a low-profile PCIe x4 add-on card that allows for capturing a single channel of SDI + embedded audio and HDMI + embedded audio

Description

Magewell Pro Capture AIO 4K Plus features both HDMI and SDI inputs with embedded audio support, capturing 2160p60 Ultra HD video over its HDMI 2.0 interface and 2160p30 via 6Gbps SDI.

The Magewell Pro Capture AIO 4K Plus Capture Card is a low-profile PCIe x4 add-on card that allows for capturing a single channel of; SDI + embedded audio and HDMI + embedded audio. The card supports extraction of audio formation information and channel status data; video timing information, 3D format information, and Sony/Canon DSLR timecode. It is also capable of performing various video processing features; including cropping, scaling, deinterlacing, aspect ratio conversion, colour format conversion, video frame rate conversion, and video OSD composition.

Magewell’s outstanding video capture quality, performance and reliability, all three cards feature a PCIe 2.0 high-speed interface and support resolutions all the way up to the 4096×2160 4K digital cinema and production standard, including 3840×2160 4K Ultra HD. As with all Magewell Pro Capture cards, each video source can be output as multiple streams to separate applications simultaneously, enabling concurrent live broadcast, recording and preview. Resolution, frame rate and video processing can be controlled independently for each stream.

Magewell Pro Capture AIO 4K Plus

Multiple Pro Capture cards may be installed per system, limited only by the number of physical PCIe slots available. The number of Output streams are unlimited, and settings for each stream can be independently customised and adjusted. Works with Windows, Mac and Linux Operating Systems; supports multiple APIs for Windows and Linux, and provides Windows SDKs for ease of integration.

The Magewell Pro Capture AIO 4K Plus comes in two variants: The AIO 4K and AIO 4K Plus. The “Plus” model supports higher PCIe bus speeds for a larger video capture bandwidth.

InterfaceVideo EngineSignal Detection & SupportSoftware Environment
Input Interface

• HDMI x1
• SD/HD/3G/6G SDI x1
• Support input resolution up to 4096×2160 pixels

Host Interface
PCIe Gen2 x4
10-bit video processing

Deinterlace

Cropping

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

OSD

SG-DMA Transmission mode
Auto Detection of Input Signal Format

3D HDMI

Time Code

Closed Caption

HDR 10
OS

Windows, Linux, Mac

Driver and Firmware
Universal Driver, Updatable Firmware

Included Software
Capture Express

Compatible Software
50+



Specifications

Supported OSWindows
• Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture)
• Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
• CentOS 6.5/7 (x86 & x64)
• Fedora 25/26/27 (x86 & x64)
• Red hat 6.5 and above (x86 & x64)
• Other Linux OS with kernel version 2.6.35 and above
Mac
• OS X 10.9/10.10/10.11
• macOS 10.12 and above
Recommended OS (tested)Windows
• Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
• Ubuntu 12.04/14.04/16.04 (x86 & x64)
• Ubuntu 17.04/17.10/18.04 (x64)
• CentOS 6.5/7.2 (x86 & x64)
• Fedora 25/26 (x64)
• Red hat 6.5 (x86 & x64)
Mac
• OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
• macOS 10.12/10.13.2/10.13.3/10.14.3
Supported APIsWindows
• DirectShow
• DirectKS
• Wave API/DirectSound/WASAPI
Linux
• V4L2
• ALSA
Supported SoftwareVLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software
Input InterfacesHDMI
• DVI-D 1.0
• HDMI 2.0
BNC
• SD/HD/3G/6G SDI
Host InterfacePCIe Gen2 x2
Input featuresAuto scan of video input sources when there is no signal input to the currently selected input source
Manual selection of video input source
Auto selection of linked (embedded) audio input source when the video input source changes
Manual selection of audio input source
Support for standard crossbar based on video input source selection
Support for input video resolutions up to 4096x2160 pixels
HDMI Specific Features594MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut/HDR/VBI InfoFrames
Full colorimetry support
Support for 8/10/12-bit color depths
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for up to 8-channel IEC60958/IEC61937 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for extraction of Sony/Canon DSLR time code
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
Support for HDR10
SDI Specific FeaturesIntegrated cable equalizer supporting cable lengths up to 230M for HD signals
Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS/6G (SMPTE 2081) standards
Support for 2K (2048x1080) & 4K (4096x2160) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 8 (mono) audio channels at 48KHz (channels 1–8 from the 16 available in the SDI spec)
Support for extraction of audio formation information & channel status data
Limited support of 3Gb-DS: only the first stream can be captured
Limited support for capture of the first link of dual link interfaces:
YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
YCbCr 4:4:4 10-bit: captured as 4:2:2
RGB 4:4:4: R/B sub-sampled
Support for Closed Caption
Video Capture formatSupport for capture image resolutions up to 4096x2160 pixels
Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth & image resolution)
Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
Support for 4:4:4 10-bit capture formats: V410, Y410
More capture formats are supported via Magewell Capture SDK for DirectKS
Video Processing FeaturesTwo video processing pipelines with ~720Mpixels/s processing bandwidth for each one
Full 10-bit video processing
Video cropping
Video scaling
Video de-interlacing
• Weave
• Blend top & bottom field
• Top field only
• Bottom field only
Video aspect ratio conversion
• Auto or manual selection of input aspect ratio
• Auto or manual selection of capture aspect ratio
• Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
• Auto or manual selection of input color format & quantization range
• Auto or manual selection of capture color format, quantization range & saturation range
• Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
• Support for Limited or Full quantization range
• Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video OSD composition
• Support for PNG OSD image (up to 4096x2160)
• Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System
Support for multiple cards plugged to one system
On-board rotary switch to set card number, with 16 positions from 0 to F
System hardware device tree will display “01: Pro Capture AIO 4K+” when rotary switch is set to 1, and so on
The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Capture StreamsUnlimited capture streams for any one input channel
Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency SupportLatency of 64 video lines
Partial notification mode in SDK
Timestamp & A/V SynchronizationHardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA~1600MB/s per channel DMA bandwidth in PCIe 2.x system
~800MB/s per channel DMA bandwidth in PCIe 1.x system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipsets
SDK
Magewell Capture SDK for DirectShow for easy integration (Windows)
Magewell Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver Tweaks
All options can be controlled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys
Firmware UpgradeMultiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.
LED Indicator
Status LEDs indicate the working state of each channel:
• Pulsing slowly: idle
• On: input signal locked
• Off: input signal unlocked
• Double blinks: memory failed or FPGA configuration failed.
Form Factor
Low profile PCIe x4 Add-on Card
140mm x 68.88mm (without PCI bracket)
Power Consumption
Max current at 12V: ~ 0.59 A
Max current at 3.3V: ~ 0.97 A
Max power consumption: ~ 8.4 W
Working Environment
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

Accessories

Magewell Pro Capture AIO 4K Plus

Low Profile Bracket

Part number: 91231
