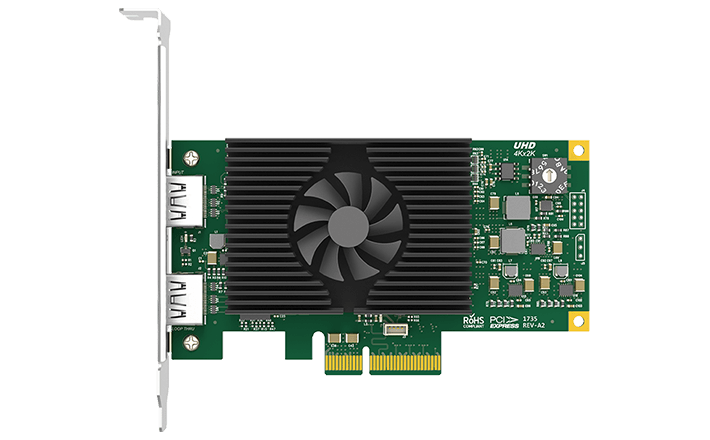

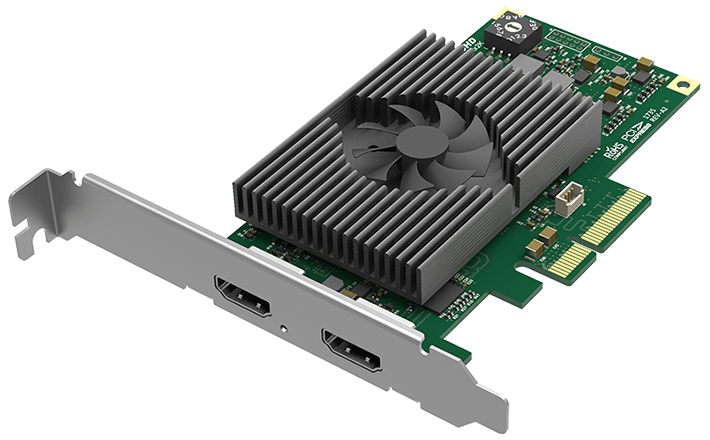

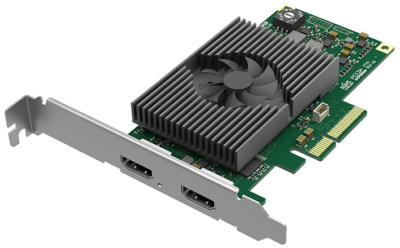

Magewell Pro Capture HDMI 4K Plus LT

Magewell PN: 11152

One channel 4K Capture Card

  • Capture HDMI + embedded audio
  • Captures video up to 4096×2160 at 60

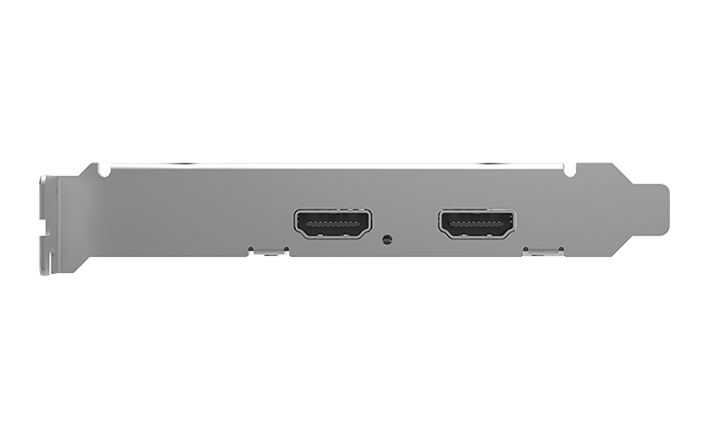

  • Loop-through HDMI + embedded audio
  • Low-profile PCIe x4

Quote Me

Magewell Pro Capture HDMI 4K Plus LT card is a low profile single channel ultra HD card that captures up to 4k HDMI + embedded audio at 60Hz. The card includes a HDMI loop-through.

SKU: 111520000 Category:

Description

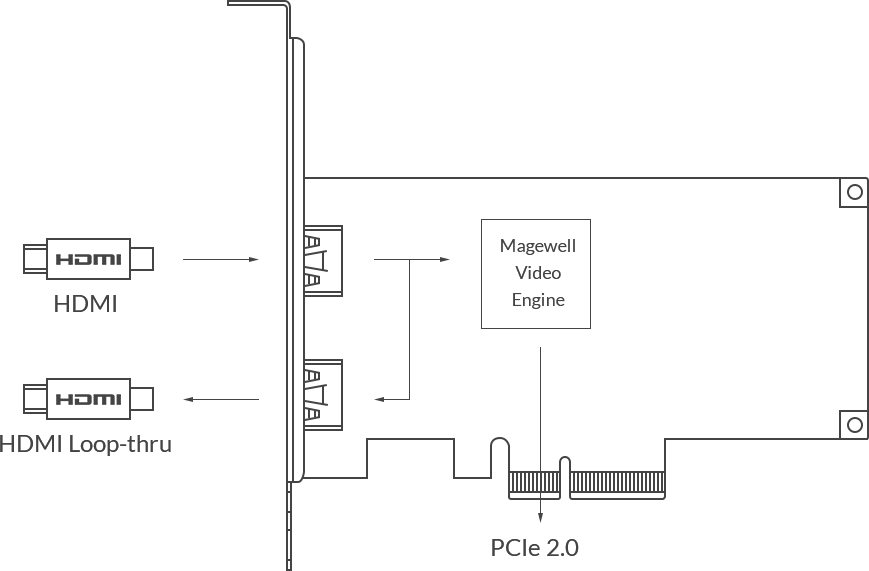

. The Magewell Pro Capture HDMI 4K Plus LT (Loop Through) Video Capture Card captures one channel of Ultra HD 4096×2160 at 60 frames per second video with embedded audio along with a HDMI loop-through. For markets and applications including broadcast, medical imaging, gaming, streaming, surveillance, and virtual reality (VR) production. The new loop-through connection reduces workflow costs and complexity by enabling source signals to be sent simultaneously to additional displays or equipment without the need for an external HDMI splitter.



As with all Magewell Pro Capture cards, input video – along with embedded audio – can be sent to multiple software applications simultaneously, with independent control of the resolution, frame rate and video processing settings for each. 10-bit, FPGA-based video processing provides high-quality up/down/cross-conversion, graphic overlay, de-interlacing and more without taking valuable host system CPU cycles away from third-party software.



Magewell Pro Capture HDMI 4K Plus LT



The Magewell Pro Capture HDMI 4K Plus LT supports Windows, Mac and Linux operating systems and is compatible with all popular encoding, streaming, live production, web conferencing, lecture capture, medical imaging and VR creation software. A comprehensive SDK lets third-party developers directly leverage the full, advanced feature set of Magewell cards in custom software applications and turnkey solutions.
As with all Magewell Pro Capture cards, input video along with embedded audio can be sent to multiple software applications simultaneously. With independent control of the resolution, frame rate and video processing settings for each. 10-bit, FPGA-based video processing provides high-quality up/down/cross-conversion, graphic overlay, de-interlacing. and more without taking valuable host system CPU cycles away from third-party software.



InterfaceVideo EngineSignal Detection & SupportSoftware EnvironmentOthers
Input Interface
• HDMI x2
• Support input resolution up to 2048×2160 pixels

Host Interface
• M.2(PCIe Gen2 x4)
8-bit video processing

Deinterlace

Cropping

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

SG-DMA Transmission mode
Auto Detection of Input Signal Format

3D HDMI

Time Code
OS
• Windows, Linux, Mac

Driver and Firmware
• Universal Driver, Updatable Firmware

Included Software
• Pro Capture Utility, Capture Express

Compatible Software
50+
Low Power Consumption

Multiple Replicated Capture Streams

Low Latency Mode

Multiple Devices on One Host

Mounting Hole

Continuously Work for 24hx7

Windows&Linux SDK

2-year Warranty

Dip Switch

LED Status Indicator

Specifications

Supported OSWindows
• Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture)
• Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64)
• CentOS 6.5/7 (x86 & x64)
• Fedora 25/26/27 (x86 & x64)
• Red hat 6.5 and above (x86 & x64)
• Other Linux OS with kernel version 2.6.35 and above
Mac
• OS X 10.9/10.10/10.11
• macOS 10.12/10.13
Recommended OS (tested)Windows
• Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
• Ubuntu 12.04/14.04/16.04 (x86 & x64)
• Ubuntu 17.04/17.10 (x64)
• CentOS 6.5/7.2 (x86 & x64)
• Fedora 25/26 (x64)
• Red hat 6.5 (x86 & x64)
Mac
• OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
• macOS 10.12/10.13.2/10.13.3
Supported APIsWindows
• DirectShow
• DirectKS
• Wave API/DirectSound/WASAPI
Linux
• V4L2
• ALSA
Supported SoftwareVLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software
Input InterfacesHDMI
• DVI-D 1.0
• HDMI 2.0
Host InterfacePCIe Gen2 x4
Loop-through Interface
HDMI
• DVI-D 1.0
• HDMI 2.0
Input featuresSupport for input video resolutions up to 4096x2160 pixels
HDMI Specific Features594MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Support for 8/10/12-bit color depths
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for up to 8-channel IEC60958/IEC61937 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for extraction of Sony/Canon DSLR time code
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
Support for HDR10
Video Capture FormatsSupport for capture image resolutions up to 4096x2160 pixels
Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth & image resolution)
Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
Support for 4:4:4 10-bit capture formats: V410, Y410
More capture formats are supported via Magewell Capture SDK for DirectKS
Video Processing FeaturesTwo video processing pipelines with ~720Mpixels/s processing bandwidth for each one
Full 10-bit video processing
Video cropping
Video scaling
Video de-interlacing
• Weave
• Blend top & bottom field
• Top field only
• Bottom field only
Video aspect ratio conversion
• Auto or manual selection of input aspect ratio
• Auto or manual selection of capture aspect ratio
• Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
• Auto or manual selection of input color format & quantization range
• Auto or manual selection of capture color format, quantization range & saturation range
• Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
• Support for Limited or Full quantization range
• Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video OSD composition
• Support for PNG OSD image (up to 4096x2160)
• Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per SystemSupport for multiple cards plugged to one system
On-board rotary switch to set card number, with 16 positions from 0 to F
System hardware device tree will display “01: Pro Capture HDMI 4K+ LT” when rotary switch is set to 1, and so on
The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Capture StreamsUnlimited capture streams for any one input channel
Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency SupportLatency of 64 video lines
Partial notification mode in SDK
Timestamp & A/V SynchronizationHardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA~1600MB/s per channel DMA bandwidth in PCIe 2.x system
~800MB/s per channel DMA bandwidth in PCIe 1.x system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipsets
SDKMagewell Capture SDK for DirectShow for easy integration (Windows)
Magewell Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver TweaksAll options can be controlled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade
Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version.
LED Indicator
Status LEDs indicate the working state of each channel:
• Pulsing slowly: idle
• On: input signal locked
• Off: input signal unlocked
• Double blinks: memory failed or FPGA configuration failed
Form FactorLow profile PCIe x4 Add-on Card
140mm x 68.88mm (without PCI bracket)
Power ConsumptionMax current at 12V: ~ 0.48 A
Max current at 3.3V: ~ 0.82 A
Max power consumption: ~ 8.08 W
Working EnvironmentOperating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

Accessories

Low Profile Bracket

Part number: 91281
