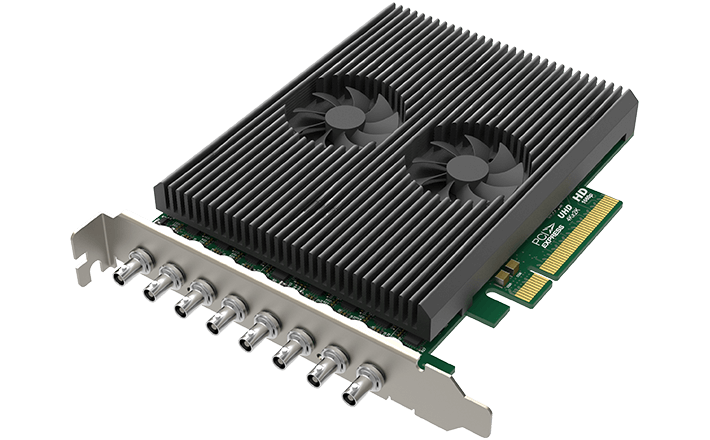

Magewell Pro Capture Dual SDI 4K Plus

Magewell PN: 11270

Two-channel 4K Capture Card

Capture two 12G-SDI signal in one of the following connecting methods:

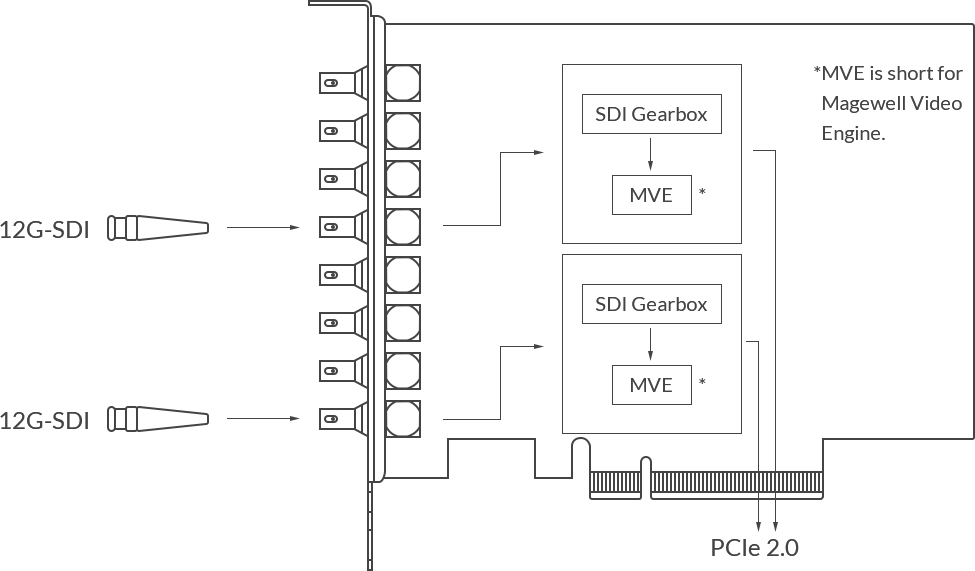

  • Single-link 12G-SDI (x2)

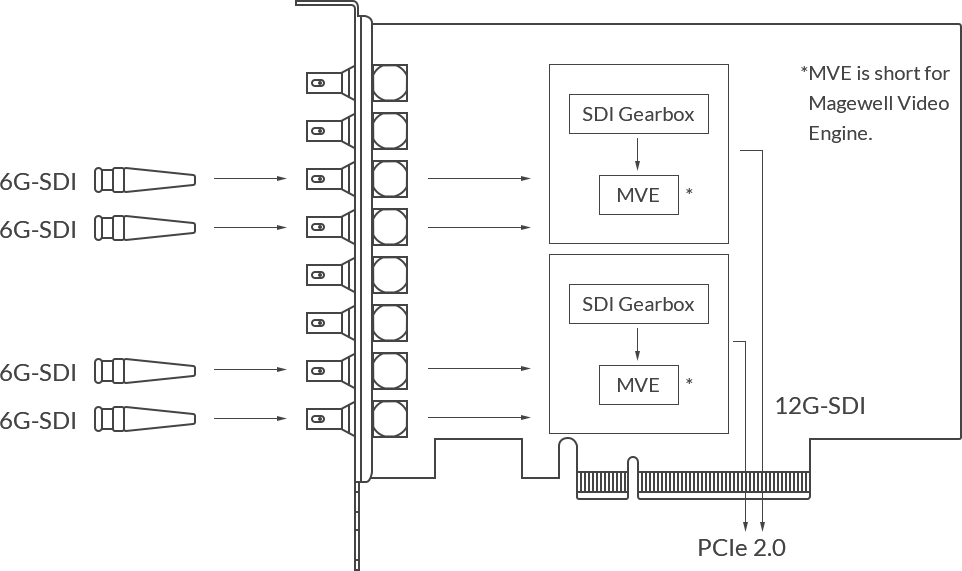

  • Dual-link 6G-SDI (x4)

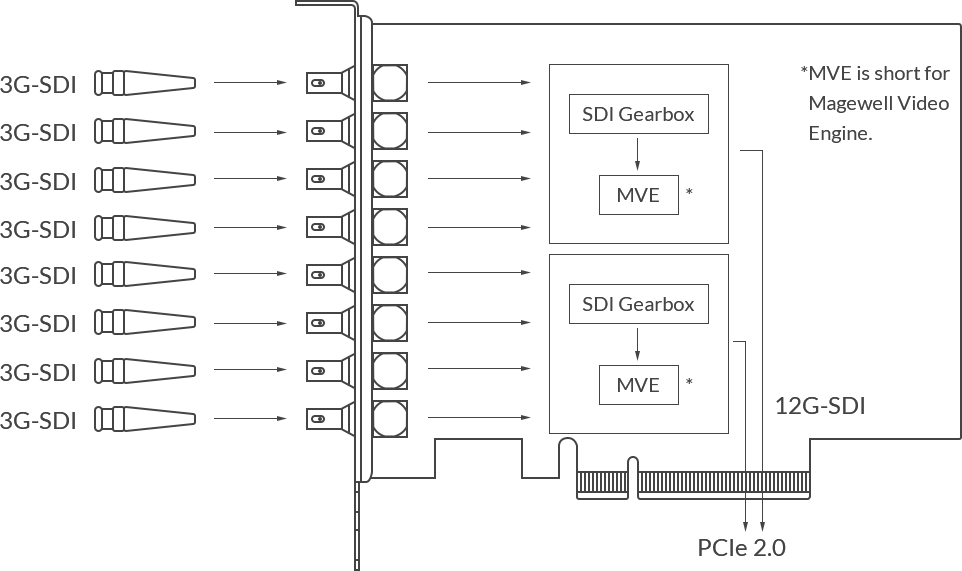

  • Quad-link 3G-SDI (x8)

Quote Me

The Magewell Pro Capture Dual SDI 4K Plus is a two-Channel 4K Capture Card that allows you to capture up to two channels 12-G SDI , four channels 6G-SDI or 8 channels 3G-SDI. Capture two 12G-SDI signals in one of the following connecting methods:




Description

..Magewell Pro Capture Dual SDI 4K Plus captures 4K video at full 60 frames per second. This over single-link 12G-SDI, dual-link 6G-SDI or quad-link 3G-SDI connections. Single-link, 12Gb/s SDI provides an elegant solution for professional 4K transport using just one cable per source. But many 4K products still offer only quad-link or dual-link connectivity. With support for all three methods, the Pro Capture Dual SDI 4K Plus card provides compatibility with both the latest and earlier 4K architectures and equipment.

The Pro Capture Dual SDI 4K Plus also captures two channels of video at resolutions up to the 4096×2160 4K digital cinema specification, including the 3840×2160 Ultra HD (UHD) TV standard. Both inputs can be used simultaneously with independent resolutions, frame rates, processing settings and SDI connectivity standards. Each input source including video and SDI-embedded audio can be routed to multiple software applications in parallel.  Again with varying capture parameters for each program.

Magewell Pro Capture Dual SDI 4K Plus



Magewell Pro Capture Dual SDI 4K Plus



Magewell Pro Capture Dual SDI 4K Plus



The Magewell Pro Capture Dual SDI 4K Plus solution performs high-quality, 10-bit video processing. Including up/down/cross-conversion, image adjustments and graphic overlay in the card’s on-board FPGA with zero impact on the host system’s CPU. This maximising the CPU availability for third-party software. The company’s universal Pro Capture drivers support Windows, Mac and Linux operating systems. While offering broad compatibility with popular encoding, streaming, live production, collaboration, web conferencing, lecture capture, medical imaging and virtual reality (VR) creation software.

Multiple 4K Pro Capture cards can be used simultaneously in the same system to further increase multi-channel capture density, while Magewell’s comprehensive SDK enables third-party developers to directly leverage the full advanced feature set of the devices in custom software applications and turnkey solutions.



InterfaceVideo EngineSignal Detection & SupportSoftware EnvironmentOthers
Input Interface
• SD/HD/3G/2K/6G/12G SDI x1
• SD/HD/3G/2K/6G SDI x1
• SD/HD/3G/2K/SDI x2
• Support input resolution up to 4096×2160 pixels

Host Interface
• PCIe Gen2 x8
10-bit video processing

Deinterlace

Cropping

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

OSD

SG-DMA Transmission mode
Auto Detection of Input Signal Format

Time Code

Closed Caption
OS
• Windows, Linux, Mac

Driver and Firmware
• Universal Driver, Updatable Firmware

Included Software
• Capture Express

Compatible Software
50+
Multiple Capture Streams

Low Latency Mode

Multiple Devices on One Host

Mounting Hole

Continuously Work for 24hx7

High-speed Memory

LED Status Indicator

Rotary Switch

Windows&Linux SDK

2-year Warranty

Accessories

Magewell Pro Capture Dual SDI 4K Plus

HD-BNC to BNC Cable x8

Part number: 90053

DownLoads

Download: User Manual Pro Capture Family

Download: Product Catalogue

Download: Tech Specs Pro Capture Family

Download Software: Drivers & Firmware

Specifications

Supported OSWindows
• Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture)
• Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04/18.04 (x86 & x64)
• CentOS 6.5/7 (x86 & x64)
• Fedora 25/26/27 (x86 & x64)
• Red hat 6.5 and above (x86 & x64)
• Other Linux OS with kernel version 2.6.35 and above
Mac
• OS X 10.9/10.10/10.11
• macOS 10.12 and above/10.14
Recommended OS (tested)Windows
• Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
• Ubuntu 12.04/14.04/16.04 (x86 & x64)
• Ubuntu 17.04/17.10/18.04 (x64)
• CentOS 6.5/7.2 (x86 & x64)
• Fedora 25/26 (x64)
• Red hat 6.5 (x86 & x64)
Mac
• OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
• macOS 10.12/10.13.2/10.13.3/10.14.3/10.14.3
Supported APIsWindows
• DirectShow
• DirectKS
• Wave API/DirectSound/WASAPI
Linux
• V4L2
• ALSA
Supported SoftwareAdobe Flash Media Encoder
Livestream
Microsoft Media Encoder
OBS
Skype
Vahana
VirtualDub
VidBlaster
Video Stitch
VLC
vMix
Wirecast
XSplit
Any other DirectShow/V4L2 encoding/streaming software

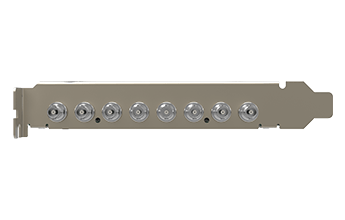

Input InterfacesHD-BNC x8
• Four connectors are compatible with SD/HD/3G SDI
• Two connecter is compatible with SD/HD/3G/6G SDI
• Two connecter is compatible with SD/HD/3G/6G/12G SDI
• Support for input of Single Link, Dual Link, Quad Link
Host InterfacePCIe Gen2 x8
Loop-through Interface
2x HDMI
• DVI-D 1.0
• HDMI 2.0
Input featuresSupport for input video resolutions up to 4096x2160 pixels
Auto detection of Single Link, Dual Link, Quad Link
SDI Specific FeaturesIntegrated cable equalizer supporting cable lengths up to 230M for HD signals
Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS/6G/12G
Support for 2K (2048x1080) & 4K (4096x2160) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 8 (mono) audio channels at 48KHz
Support for extraction of audio formation information & channel status data
Support for Closed Caption
Video Capture FormatsSupport for capture image resolutions up to 4096x2160 pixels
Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth & image resolution)
Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
Support for 4:4:4 10-bit capture formats: V410, Y410
More capture formats are supported via Magewell Capture SDK for DirectKS
Video Processing FeaturesTwo video processing pipelines with ~720Mpixels/s processing bandwidth for each one
Full 10-bit video processing
Video cropping
Video scaling
Video de-interlacing
• Weave
• Blend top & bottom field
• Top field only
• Bottom field only
Video aspect ratio conversion
• Auto or manual selection of input aspect ratio
• Auto or manual selection of capture aspect ratio
• Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
• Auto or manual selection of input color format & quantization range
• Auto or manual selection of capture color format, quantization range & saturation range
• Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
• Support for Limited or Full quantization range
• Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video OSD composition
• Support for PNG OSD image (up to 4096x2160)
• Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per SystemSupport for multiple cards plugged to one system
On-board rotary switch to set card number, with 16 positions from 0 to F
System hardware device tree will display “01: Pro Capture Dual SDI 4K+” when rotary switch is set to 1, and so on
The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Capture StreamsUnlimited capture streams for any one input channel
Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing, color adjustment and OSD settings for each individual stream
Ultra Low Latency SupportLatency of 64 video lines
Partial notification mode in SDK
Timestamp & A/V SynchronizationHardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA~1600MB/s per channel DMA bandwidth in PCIe 2.x system
~800MB/s per channel DMA bandwidth in PCIe 1.x system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipset
SDKMagewell Capture SDK for DirectShow for easy integration (Windows)
Magewell Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver TweaksAll options can be controlled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade
Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version.
LED Indicator
Status LEDs indicate the working state of each channel:
• Pulsing slowly: idle
• On: input signal locked
• Off: input signal unlocked
• Double blinks: memory failed or FPGA configuration failed
Form FactorLow profile PCIe x8 Add-on Card
127.89mm x 102.92mm (without PCI bracket)
Power ConsumptionMax current at 12V:
• 4 x 3G SDI: ~ 1.42 A
• 2 x 6G SDI: ~ 1.41 A
• 1 x 12G SDI: ~ 1.42 A
Max current at 3.3V:
• 4 x 3G SDI: ~ 1.84 A
• 2 x 6G SDI: ~ 1.73 A
• 1 x 12G SDI: ~ 1.66 A
Max power consumption:
• 4 x 3G SDI: ~ 23.05 W
• 2 x 6G SDI: ~ 22.62 W
• 1 x 12G SDI: ~ 22.52 W
Working EnvironmentOperating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
