Magewell Ultra Encode HDMI Plus

Ultra Encode HDMI Plus -4
Ultra Encode HDMI Plus -3
Ultra Encode HDMI Plus -2

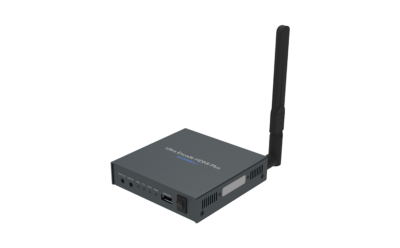

Magewell Ultra Encode HDMI Plus

Ultra Encode HDMI Plus

A Flexible & Universal Streaming and Recording Encoder

SKU: 531500000

  • Live streaming and recording with support for H.264, H.265, NDI® HX2 and NDI® HX3
  • Flexible choice of streaming protocols including RTMP, RTMPS, SRT, HLS and more
  • Control via web interface or optional Control Hub centralized management software

■ Support RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI |HX2/NDI |HX3/HLS/TS over UDP/TS over RTP/TVU ISSP streaming protocols
■ Dual stream encoding – main-stream and sub-stream
■ 8 overlays for main and sub streams each
■ Specify main stream or sub stream for each streaming session
■ Multi-streaming to various video platforms simultaneously and up to 8 schedules are supported for each session.
■ H.264 and H.265 (HEVC) Video encoders
■ Recording main or sub streams to SD card, USB drive, and NAS. Up to 8 schedules are supported for each task.
■ AAC Audio encoder
■ Web UI – a remote network management system – provides webpage configuration with kinds of customization for device functions

Category: Tags: , , , ,

Description

Magewell Ultra Encode HDMI Plus

Our Ultra Encode family of universal live media encoders offers systems integrators, streaming professionals, and OEM partners a flexible and affordable encoding solution for applications including live streaming, AV over IP, remote contribution, IP production workflows and much more.

Available in HDMI and SDI models, it builds on the functionality of the Ultra Encode family with expanded features including 4K encoding and streaming from the HDMI input; simultaneous multi-protocol streaming; higher streaming bitrates; file recording; and much more.

This device is ideal for high-quality live streaming of content including sports, education, and live events as well as IP-based production and AV-over-IP.

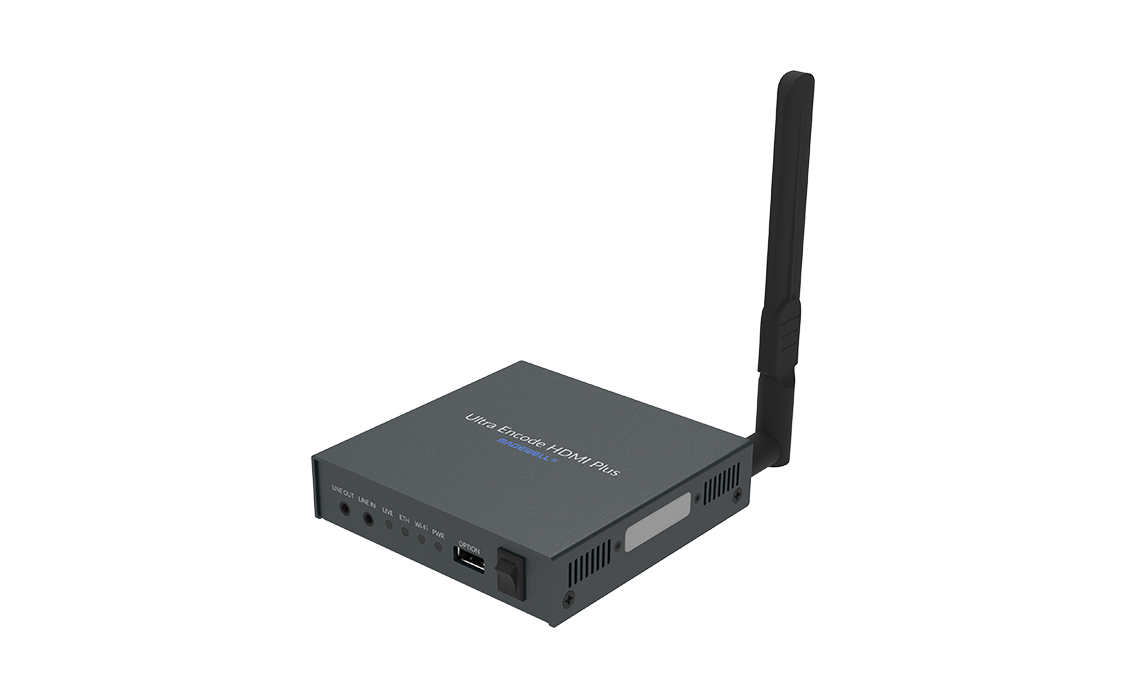

Ultra Encode HDMI Plus



Features

The Magewell Ultra Encode HDMI Plus Encoder supports multiple video encoding formats – including H.264, H.265 (HEVC), NDI |HX2, and NDI |HX3 – and a wide array of delivery protocols including RTMP, RTMPS, SRT, RTSP, RTP, HLS, TS over UDP, TS over RTP, and TVU’s ISSP technology. Up to eight channels of audio can be encoded in AAC format.

Encoder is ideal for broadcast video and audio, natively support live broadcast for Facebook, YouTube, and Twitch, as well as WOWZA, your own site, with multi-platform distribution. To customize encoder perfectly for your session, we have Web UI, where device work status, a thumbnail preview window and tabs for streaming settings, analytics, and stream health monitoring are provided.



Device Interface

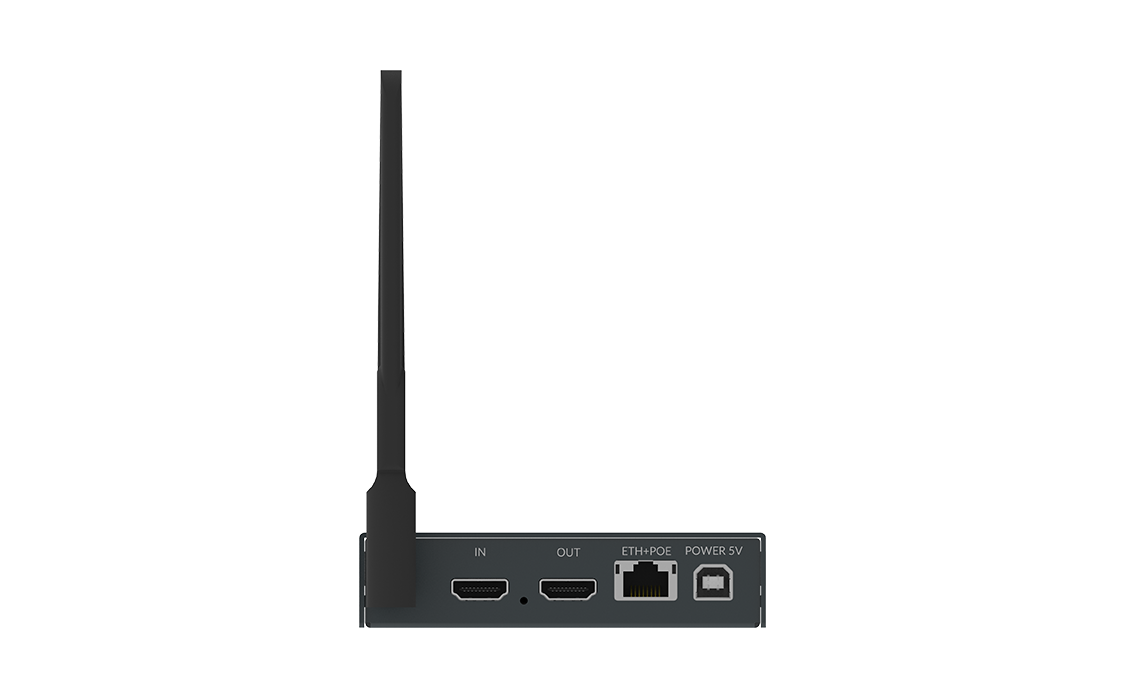

ultra encode HDMI Plus connections

Specifications and Features

Input Features

  • Support for up to 4096×2160 4:4:4/4:2:2 30fps or 4096×2160 4:2:0 60fps input and loop through signals
  • Support for 48KHz, 16-bit 8-channel audio streams
  • Input audio from 3.5 mm LINE IN

Encoding Features

  • Dual stream encoding profiles: main stream and sub stream (Max bitrate: 16Mbps)
  • Support for H.264/HEVC video encoding
  • Encoding 2-channel AAC at 48kHz, 16-bit

Streaming Features

  • Natively support streaming to Facebook, Twitch and YouTube
  • Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS/TS over UDP/TS over RTP
  • Allow streaming to multiple destinations simultaneously (select protocols)

Others

  • Internet connectivity via wired Ethernet and wireless network
  • Remote control via Web GUI and Control Hub
  • Provide HTTP APIs

Specifications

Ultra Encode HDMI Plus Specifications

documentDownload

Input Features

  • Video
    • Supports HDMI 1.4a, DVI-D
    • Typical resolution/frame rate:
      • 4096×2160 60fps 4:2:0
      • 4096×2160 30fps 4:4:4/4:2:2
      • 4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
      • 2560x1080p 23.98/24/25/29.97/30/50/59.94/60
      • 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
      • 1920x1080i 25/29.97/30/50/59.94/60
      • 1280x720p 23.98/24/25/29.97/30/50/59.94/60/144
      • 720x576p 50/100/144
      • 720x576i 25/50
      • 720x480p 59.94/60/144
      • 720x480i 29.97/30
    • Color depth: 8/10/12-bit
    • Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
    • Custom EDID
  • Audio
    • HDMI embedded audio: 8-Channel, 24-bit, 192kHz sample rate
    • Audio from 3.5 mm LINE IN: 2-Channel, 24-bit, 192kHz sample rate

Encode

  • Video
    • Bitrate: 16Mbps
    • Dual-stream encoding: main stream and sub stream
    • Main stream Resolution/frame rate:
      • 2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/15/10/5
      • 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/15/10/5
      • 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/15/10/5
      • 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/15/10/5
      • 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/15/10/5
      • 1024x768p 60/59.94/50/30/29.97/25/24/15/10/5
      • 960x540p/800x600p 60/59.94/50/30/29.97/25/24/15/10/5
      • 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/15/10/5
      • 640x480p/640x360p 60/59.94/50/30/29.97/25/24/15/10/5
      • 480x360p/480x270p 60/59.94/50/30/29.97/25/24/15/10/5
    • Sub stream
      • Supports enabling/disabling sub stream
      • Resolution/frame rate:
        • 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/15/10/5
        • 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/15/10/5
        • 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/15/10/5
        • 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/15/10/5
        • 1024x768p 60/59.94/50/30/29.97/25/24/15/10/5
        • 960x540p/800x600p 60/59.94/50/30/29.97/25/24/15/10/5
        • 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/15/10/5
        • 640x480p/640x360p 60/59.94/50/30/29.97/25/24/15/10/5
        • 480x360p/480x270p 60/59.94/50/30/29.97/25/24/15/10/5
    • H.264/H.265 (HEVC) Codec:
      • System timecode or RP–188 standard timecode for SEI Message setting
      • H.265 (HEVC) SEI message supports carrying interlacing signal mark
      • Video aspect ratio conversion
  • Audio
    • Encoding 2-channel AAC
    • Bitrate: 256/192/128/96/64/48/32/16 kbps
    • Output source embedded audio and line in through LINE OUT

Live stream

  • Natively supports streaming to:
    • Twitch
    • YouTube, publishing to timeline or a new event and setting “made for kids”.
    • Facebook, enabling backup stream and publishing to timeline or a new event.
  • Supports streaming protocols:
    • RTSP
    • RTMP/RTMPS
    • SRT Caller/SRT Listener
    • NDI®|HX2
    • HLS
    • TS over UDP/TS over RTP
    • TVU ISSP
  • Supports sessions over the same streaming protocol, such as
    • Up to 6 sessions of TS over RTP and TS over UDP simultaneously
    • Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most (max 8 clients simultaneously)
    • Up to 6 sessions of RTMP and RTMPS simultaneously
  • Supports streaming only 1 session of HLS, RTSP, or NDI|HX2
  • Supports specifying a video stream and an audio stream for each streaming session

Web UI

  • Access Web UI via PC and smartphone
  • View real-time device status
  • Preview encoded video
  • Set input sources
  • Customize encoding parameters
  • Manage streaming destinations, start/stop streaming, view streaming status
  • Manage recording tasks
  • Set up to 8 overlays for each stream, including text, picture, and clock
  • Update firmware
  • Supports registering Magewell Control Hub for centralized management
  • Supports Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers

API

  • Provides APIs for 3rd party control system

Network Connections

  • Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
  • Wi-Fi: 802.11 a/b/g/n/ac, Station and AP modes supported
  • 4G/5G USB modem (not supplied)
  • USB Net

Input/Output Ports

  • 2 x HDMI ports
    • 1 x Input
    • 1 x Loop-through
  • 1 x 3.5mm LINE IN
  • 1 x 3.5mm LINE OUT
  • 1 x USB Type-A

LED Indicators

  • LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection

Power Supply and Consumption

  • DC 5V/3A
  • Max power consumption: ~8.62W

Form Factor

  • 106.6mm x 106.2mm x 25mm

Accessories

  • 1 x 5V Power Adapter
  • 1 x HDMI Cable
  • 1 x USB Type A to Type B cable
  • 1 x Wi-Fi Antenna
  • 1 x T-bracke

Screw Mounting Hole

  • 2 x M3 threaded hole
  • A standard 1/4″-20 socket provided by T-bracket

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 60 deg C
  • Relative humidity: 5% to 90% non-condensing

Accessories

1 2 3

Power Adapter (US/EU/UK/AU/JP)x1

Part number: ACC08010

USB 2.0 Type B cable x1

Part number: ACC00065

HDMI Cable x1

Part number: ACC00090
4 5

Wi-Fi Antenna x1

Part number: ACC09021

T-bracket x1

Part number: ACC02241

We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.

Downloads

Downloads Manuals here ..

User Manual for Ultra Encode HDMI Plus             English | 3.89 MB | 2021/01/28         Download
Quick Start Guide for Ultra Encode Plus                 English | 5.02 MB | 2023/11/16           Download
* This firmware applies to Ultra Encode HDMI Rev B.   English | 1.73 MB | 2021/01/28          Download
  1. Support importing and exporting the configuration information.
  2. Support auto reboot.
  3. Support display serial number, device name and network IP through text overlay.
  4. Optimize preview thumbnails.
  5. Change the default no-signal image.
  6. Support Facebook backup stream.
  7. Support custom setting of video encoding bitrate.
  8. Fix known issues.
