USB Capture SDI 4K Pro

One-channel 4Kp60 capture device

SKU: 321600000

  • Capture SDI + embedded audio
  • Loop-through SDI signal
  • Audio input via Line In
  • Extract SDI embedded audio and output via Line Out

Quote Me

USB Capture SDI 4K Pro capture signals up to 4096×2160 (including 3840×2160 Ultra HD) at 60fps with 4:2:2 chroma fidelity via the USB 3.2 Gen 2×2 interface

Category:

Description

USB Capture SDI 4K Pro

Magewell Expands Renowned USB Capture Product Family with new model that captures video sources
up to 4K resolution at 60 frames per second – the USB Capture SDI 4K Pro.

usb capture sdi 4k pro

USB Capture SDI 4K Pro

USB Capture SDI 4K Pro is the newest in a long line of high-quality USB Capture products. Able to capture SDI signals up to 4096×2160 (including 3840×2160 Ultra HD) at 60fps with 4:2:2 chroma fidelity via the USB 3.2 Gen 2×2 interface, the USB Capture SDI 4K Pro provides seamless video capture with minimal CPU usage and no external power source.

Boasting a long list of capabilities, the USB Capture SDI 4K Pro does more than just 4K. The unit can accept many different video formats up to 12G or frame rates up to 240fps. Along with video, the device can capture 2-channels of embedded audio or analog audio via a 3.5mm Line In interface. Embedded audio can also be extracted and output via the 3.5mm Line Out interface. The unit is FPGA-based and makes no demands on the PC’s CPU, but does require a 20 Gbps USB 3.2 Gen 2×2 connection for maximum performance.

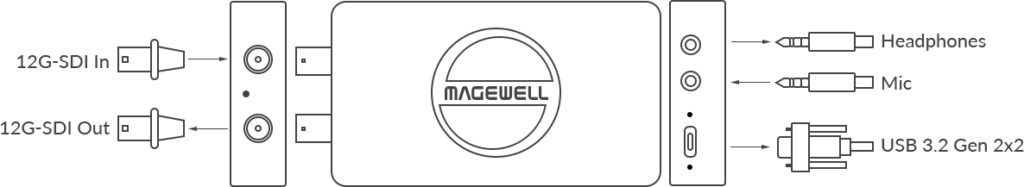

sdi 4k pro connections

The USB Capture SDI 4K Pro features driver-free setup and automatic input signal format detection for true plug-and-play operation, with support for Windows®, MacOS®, Linux® and ChromeOS®. Magewell’s free USB Capture Utility software is included and permits the setting of capture-related parameters, firmware upgrades, and logging.

“The USB Capture SDI 4K Pro is a high-performer that carefully manages bandwidth to achieve amazing signal quality,” said James Liu, VP of Engineering at Magewell. “This is a wonderful addition to the USB Capture family that will empower professionals and creatives to work with higher resolutions as they continue to push the boundaries of technology with their skills.”

Specifications and Features

Interface

Input Interface & Loop-through Interface

  • One SDI input + embedded audio
  • One SDI loop-through
  • Support input & loop-through resolution up to 4096×2160 60fps 4:2:2

Audio Input/Output Interface

  • 3.5mm audio jack for Line In/ Line Out

Host Interface

  • USB 3.2 Gen 2×2 up to 20G throughput

OS

  • Windows, Linux, Mac, Chrome

Capture Format

  • Support capture resolutions up to 4096×2160
  • Support capture frame rates up to 240fps
  • Capture 2-channel embedded audio or analog audio via 3.5mm unbalanced Line In interface

Actual capture format will vary based on the host system USB interface and operating system.

Included Software

  • USB Capture Utility, Capture Express, etc.

Others

  • Auto detection of input signal format
  • Windows, Linux and Mac SDK
  • Continuously work for 24hx7
  • LED status indicator
  • 3-year warranty
  • Form factor: 4.35 in (L) x 2.24 in (W) x 0.71 in (H) (110.6 mm x 56.8 mm x 18 mm)

USB Capture Utility V3

USB Capture Utility V3

Utility V3 is a free software for USB Capture and USB Capture Plus devices. Users can easily check and set the capture-related parameters, upgrade the firmware by themselves and export info needed for technical support with the help of the Utility.

Download the Utility for USB Capture Family and for USB Capture Plus Family.



Features Include;

• Capture Format Setting

• Audio Volumn Control

• Mirror and Flip

• EDID Editing and Importing

• Firmware Update

• Export Diagnose Report

For full description, visit the full page; USB Capture Utility V3 Utility V3 also provide functions such as cropping, deinterlacing, device name setting, aspect ratio conversion, timing adjustment, status image setting, etc. For detailed introduction of the settings and functions, please check the Utility V3 User Manual.



Specifications

USB Capture SDI 4K Pro Specifications

document Download

Input Features

  • Max input & loop through signal at 12G 4096×2160 60fps 10Bit YUV4:2:2
  • Video format supports RGB/YUV 4:4:4 8/10/12-bit, YUV 4:2:2 12-bit, YUV 4:2:0 8/10/12-bit
  • Up to 8 channels, 24-bit SDI embedded audio, with a sample rate of 192kHz
  • Audio input through via 3.5mm line in supports 2-channel IEC60958 standard audio stream

Process and Capture Features

  • Video processing pipelines with ~700Mpixels/s processing bandwidth
  • Capture videos up to 4096×2160, frame rates up to 240fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.):
    • 4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/60
    • 2560x1440p60
    • 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60
    • 720x576p25
    • 720x480p30
  • Output NV12/I420/YUY2/UYVY/RGB24/RGB32 videos
  • Output audio of SDI signal via 3.5 mm line out
  • Supports 2-channel IEC60958 standard audio stream

Included Software

  • USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting

SDK & APIs

  • The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
  • Windows DirectShow/Wave API/DirectSound/WASAPI
  • Linux V4L2/ALSA
  • macOS AVCaptureSession/AudioUnit

Output Interface

  • USB 3.2 (20 Gbps) Type-C

Compatible Software

  • Zoom Rooms
  • Microsoft Teams
  • Skype for Business
  • Google Hangouts
  • GoToMeeting
  • Gstreamer
  • VLC
  • OBS Studio
  • XSplit
  • QuickTime Player
  • Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
  • Windows 10/11/Server 2016/Server 2019/Server 2022 (x86 & x64) and above
  • Linux x86, x64 & ARM architecture, with 2.6.35 and above
  • Mac OS X 10.9 and above
  • macOS 10.12 and above
  • Chrome OS

LED Indicator

  • Status LEDs indicate the working state of the device:
    • Pulsing slowly: input signal unlocked
    • On: input signal locked
    • Double blinks: memory abnormal or FPGA configuration failed
    • Off: firmware or power supply abnormal

Form Factor

  • 4.35 inches (L) x 2.24 inches (W) x 0.71 inches (H) (110.6mm x 56.8mm x18mm)

Power Consumption

  • 5V max current: ~1.439A
  • max power consumption: ~7.194W

Working Environment

  • Operating temperature: 0 to 60 deg C
  • Storage temperature: -20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing

DownLoads

  • Short FAQs about USB Capture SDI 4K Pro – English | 309 KB | 2024/09/03  Download
  • USB Capture Utility User Manual – English | 1.68 MB | 2024/09/03  Download
  • User Manual for USB Capture Plus & Pro – English | 1.43 MB | 2024/08/30  Download

Accessories

Accessories

Included

USB 3.2 Type C to Type C cable (up to 20Gbps) x1

Part number: ELE00053

USB 3.2 Type C to Type A cable (up to 10Gbps) x1

Part number: ELE00054
