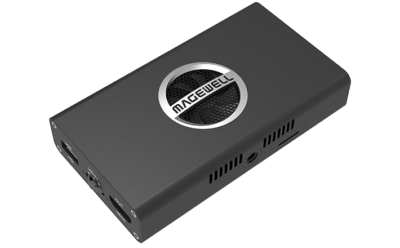

Pro Convert for NDI to HDMI 4K

Magewell Pro Convert NDI to HDMI 4K is a NDI decoder which supports HDMI output and converts NDI and other multi-protocol IP-based stream into a 4K HDMI signal. Standalone – powered by USB or POE.

  • Convert multi-protocol IP-based stream into 4K HDMI signal
  • Convert NDI Signal to HDMI 4K Stream
  • Embedded Audio Supported
  • Up to DCI 4K NDI Input
  • Up to 4K60 HDMI Output

Part number:
64110 US; 64112 EU; 64113 UK;
64114 AU; 64115 KR; 64116 JP

The device is supplied with different options of power adapters.

SKU:
641100000 (for US/EU/UK/AU/JP users);
641100006 KR


Quote Me

Description

The Magewell Pro Convert for NDI to HDMI 4K decodes input streams up to 4196×2160 at full 60 frames per second for output to baseband monitors, projectors, production or distribution equipment via an HDMI 2.0 interface. Offering the high reliability, assured performance and compact size of dedicated hardware compared to software-based stream playout, they are perfect for applications including multi-site video distribution; image magnification (IMAG); video walls; digital signage; remote production; or bridging legacy and next-generation media infrastructures.

The Pro Convert for NDI to HDMI 4K can automatically optimize output parameters based on EDID metadata of the connected HDMI display, while FPGA-based video processing enables high-quality up/down-conversion between HD and 4K. The compact devices measure just 3.97 by 2.4 inches (100.9 by 60.2mm) with a height of 0.92 inches (23.3mm), and can be powered via external adapter or PoE. Users can manage advanced features of the devices via on-unit controls, a browser-based interface, or connected keyboard or mouse.

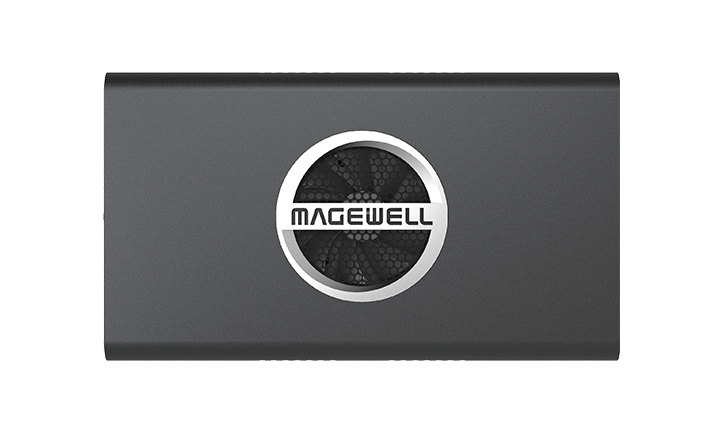

Magewell Pro Convert NDI to HDMI 4K

Interface

Magewell pro convert ndi to hdmi 4k

The Magewell Pro Convert for NDI to HDMI 4K enables users can control advanced settings, select between NDI source streams and monitor the status of the decoder through a browser-based interface; wired or wireless keyboard or mouse; or using two on-device buttons that overlay an intuitive menu on the HDMI output. The device supports eight channels of audio in the NDI stream, with user control of audio gain, sample rate, channel selection and on-screen VU metering. Additional convenience and integration settings include image flip for inverted projector installations; safe area controls for ensuring the display of important content; and remote control of PTZ source cameras.

About NDI® –  (Network Device Interface) software is in the hands of millions of customers worldwide and allows multiple video systems to identify and communicate with one another over IP. NDI can encode, transmit and receive many streams of high quality, low latency, frame-accurate video and audio in real time. This benefits any network-connected video device, including cameras, converters, video mixers, graphics systems, capture cards, and many other production devices.

Further Resources

Magewell Bridge for NDI® Select
NewTek NDI® Tools Select
Compatible Software Select
User Manual for Pro Convert Encoders Download
User Manual PRO Convert Decoders Download
Short FAQs about Pro Convert Download
Description of Mini-DIN8 Breakout Download
Pro Convert Product Selector & Downloads Select



InterfaceControl ButtonsHDMI Output FeatureStream Decoding FeaturesFirmwareOthers
Output interfaces
• HDMI
• DVI-D 1.0
• HDMI 1.4
• HDMI 2.0

USB interface
•USB2.0 Type B 5V/2.1A
USB RNDIS/ECM

•USB3.0 Type A for keyboard/mouse

Network interface
•10/100/1000 Mbps Ethernet
•Support IEEE 802.3af PoE
MENU
press to display the menu or select current parameter, or toggle the switch left and right to cycle through the options
Support up to 4:4:4 8-bit 4096x2160 60fps HDMI output• Support for decoding streams of NDI, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP

• Support for decoding videos in H.264 and H.265 format

• Support for decoding up to 4K 60fps signal
Support manual update using Web UILED Indicators

2-year Warranty

1/4-20 Mounting Hole

Specifications

Supported Web Browser (tested)Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above
Output Interfaces
HDMI
• HDMI 1.4
• HDMI 2.0
Storage Interface
SD Card (functions to be developed)
Screw Mounting Hole
¼–20 mounting hole
Network Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface
USB2.0 Type B
•5V/2.1A power supply
•USB RNDIS/ECM
USB3.0 Type A
•Support for connecting peripherals (keyboard and/or mouse) to customize the video and audio settings
Control Buttons
MENU: press to display the menu or select current parameter, or toggle the switch left and right to cycle through the options
HDMI Output Features
Support for up to 4:4:4 8-bit 4096x2160 60fps output HDMI resolutions
Support for 96KHz 16bits 8-channel audio streams
Support for delivering videos at the preferred video format according to the EDID of the connected monitor
Stream Decoding Features
Support for decoding full NDI® and NDI HX in NDI 4.x
Support for decoding streams of NDI, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP
Support for decoding videos in H.264 and H.265 format
Support for decoding AAC/MP3 audios
Support for decoding up to 4K 60fps signal
Support for modifying configurations using the Web UI or the Options menu
Setting Video OSD composition, including
•Source name & resolution
•Tally indicators
•Audio meter
•Audio meter scale
•Center cross
•Safe area
Remote controlling the PTZ device connected to the video source
Setting audio gain, sample rate and channels
Support for decoding sources in different network segment but can be able to pinged
Support for decoding alpha channel, options are
•Alpha only
•Alpha blend with white
•Alpha blend with black
•Alpha blend with checkboard
Device NameSupport for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support for setting board-index, from 0 to F, through the on-board rotary switch
Firmware Upgrade
Support for manual update using Web UI
LED Indicator
Power LED status indicator
•On: power connected
•Off: power unconnected
Decode LED status indicator
•On: decoding in progress
•Blinks: decoding error
•Off: source unselected
Form Factor
117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Accessories
USB 2.0 A to B cable
5V/2.1A power adaptor
L-bracket
Power Consumption
USB 2.0 A to B cable
5V/2.1A power adaptor
L-bracket
Working Environment
Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

Accessories

Pro Convert for NDI to HDMI 4K Pro Convert for NDI to HDMI 4K Pro Convert for NDI to HDMI 4K Pro Convert for NDI to HDMI 4K
Power Adapter (US/EU/UK/AU/JP)x1

Part number: 98017

Power Adapter (KR) x1

Part number: 98015

USB Type A to Type B cable x1

Part number: 90065

L bracket x1

Part number: 92240



Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.

DownLoads

Magewell Bridge for NDI® Select
NewTek NDI® Tools Select
Compatible Software Select
User Manual for Pro Convert Encoders Download
User Manual PRO Convert Decoders Download
Short FAQs about Pro Convert Download
Description of Mini-DIN8 Breakout Download

Firmware

Descriptions:
  1. Optimize H.26x stream decoding performance and simplify operations.
  2. Add the function of switching decoding channels by pressing hotkeys on a connected keyboard.
  3. Fix known defects and optimize user experience.

V1.1.595 19.7 MB | 2020.08.06 https://www.magewell.com/files/firmware/pro_convert_ndi_to_hdmi_4k_rev_a_1_1_595.rar
