Pro Convert for NDI to SDI

Magewell Pro Convert for NDI to SDI decodes Full NDI, NDI|HX, SRT, RTSP, RTMP, UDP, RTP and HLS up to 2048×1080 at 60fps for output via a 3Gbps SDI interface

  • Connects baseband presentation or distribution equipment into IP-based media networks
  • Supports NDI technology including full-bandwidth NDI and high-efficiency NDI|HX mode
  • Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP

SKU:
641500000 (for US/EU/UK/AU/JP users);
641500002 KR

Description

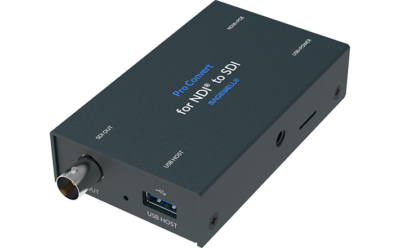

Magewell Pro Convert for NDI to SDI

The Pro Convert for NDI to SDI decodes Full NDI, NDI|HX, SRT, RTSP, RTMP, UDP, RTP and HLS up to 2048×1080 at 60fps for output via a 3Gbps SDI interface.

Magewell Pro Convert for NDI to SDI device will make it easier to use NewTek’s NDI protocol for presentation and delivery applications including digital signage and video walls, as well as multi-site video distribution and long-distance media transport. The Pro Convert for NDI to SDI supports DHCP network configuration and uses EDID metadata to detect display characteristics. The decoder can be controlled via browser, keyboard-and-mouse, or two hardware buttons on the device itself that overly a menu on the SDI output.

The device can be powered via an included USB power adapter or over PoE using the RJ45 port. The Magewell Pro Convert for NDI to SDI also offers a companion Web UI which allows web configuration from a wide variety of web browsers, such as the device name, source name, NDI and EDID identifiers, and other settings. The device features a 1/4″-20 thread for camera mounting and can be used in the studio or in the field thanks to a compact and durable design equipment configuration menu.



Interface

Magewell Pro Convert NDI to SDI

The Pro Convert for NDI to SDI enables users can control advanced settings, select between NDI source streams and monitor the status of the decoder through a browser-based interface; wired or wireless keyboard or mouse; or using two on-device buttons that overlay an intuitive menu on the SDI output. The device supports eight channels of audio in the NDI stream, with user control of audio gain, sample rate, channel selection and on-screen VU metering. Additional convenience and integration settings include image flip for inverted projector installations; safe area controls for ensuring the display of important content; and remote control of PTZ source cameras.

About NDI® –  (Network Device Interface) software is in the hands of millions of customers worldwide and allows multiple video systems to identify and communicate with one another over IP. NDI can encode, transmit and receive many streams of high quality, low latency, frame-accurate video and audio in real time. This benefits any network-connected video device, including cameras, converters, video mixers, graphics systems, capture cards, and many other production devices.

Further Resources

Magewell Bridge for NDI® Select
NewTek NDI® Tools Select
Compatible Software Select
User Manual for Pro Convert Encoders Download
User Manual PRO Convert Decoders Download
Short FAQs about Pro Convert Download
Description of Mini-DIN8 Breakout Download
Pro Convert Product Selector & Downloads Select



Accessories

Pro Convert for NDI to SDI Pro Convert for NDI to SDI Pro Convert for NDI to SDI Pro Convert for NDI to SDI

Power Adapter (US/EU/UK/AU/JP)x1

Part number: 98017

Power Adapter (KR) x1

Part number: 98015

USB Type A to Type B cable x1

Part number: 90065

L bracket x1

Part number: 92240



Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
