Pro Convert Audio DX

Pro Convert Audio DX

A multi-format IP audio converter and capture device (Dante® enabled)

SKU:
642600000 (for US/EU/UK/AU/JP users);
642600001 KR

  • Offers a seamless bridge between analog audio, software and IP standards including Dante®, NDI®, SRT and more
  • Provides a flexible, virtual audio matrix to allow routing or mixing of any analog or IP-based input channel to any output
  • Enables mixed-technology local and remote production workflows and ProAV installations

Quote Me

SKU: US/EU/AU-53020, UK-53023-1-1-2-1 Categories: ,

Description

Magewell converts and captures with Pro Convert Audio DX

AV interface and IP workflow solutions developer Magewell has announced its first solution with integrated support for Audinate’s Dante audio networking. The Pro Convert Audio DX multiformat IP audio encoder, decoder and capture device, converts audio between Dante, NDI and SRT transport technologies while bridging analogue audio, software and IP networks.

The Magewell Pro Convert Audio DX can transmit and receive up to eight channels of audio in unicast or multicast Dante audio streams or flows. In addition to Dante, the device also supports uncompressed audio using NDI media-over-IP technology, or compressed AAC audio using the low-latency SRT protocol.

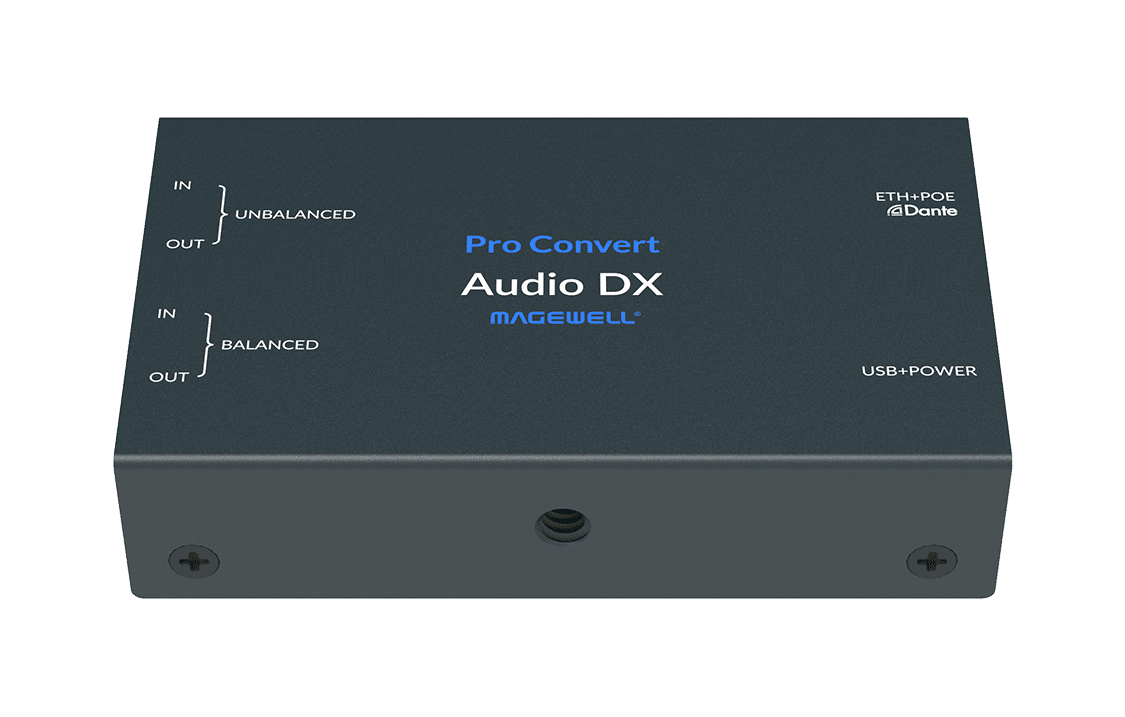

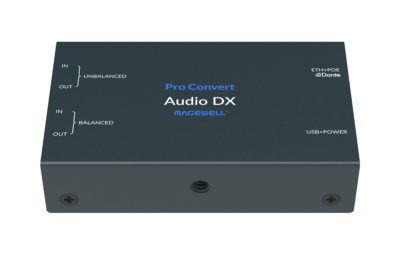

Pro Convert Audio DX

By enabling conversion between Dante, NDI and SRT, Pro Convert Audio DX enables mixed-technology local and remote production workflows that combine products supporting different standards and formats. It can also encode analogue audio into Dante, NDI or SRT streams as an “on-ramp” to IP networks, in addition to decoding IP audio streams in any of these formats and protocols for analogue output.

The compact Pro Convert Audio DX can also serve as an audio capture device when connected via USB to a laptop or desktop computer. UAC (USB Audio Class) compatibility provides plug-and-play and compatibility with major video conferencing, streaming, and production software.

Interface

Pro Convert Audio DX

The virtual audio matrix in Pro Convert Audio DX’s browser-based interface promotes the routing or mixing of any analogue or IP-based input channel to any analogue, IP or UAC output. Multiple Pro Convert Audio DX units can be centrally configured and controlled through the Magewell Cloud multi-device management software.

Specifications and Features

Input/Receiving Features

Output/Sending Features

Audio routing and mixing Features

Others
Features
  • 1 x 2-channel 3.5mm unbalanced in
  • 1 x 2-channel 4.4mm balanced in
  • 1 x 4-channel 24-bit/48k UAC in
  • Receiving 8-channel 24-bit Dante® streams in unicast or multicast
  • Receiving 1 x 4-channel 16-bit SRT/NDI® audio stream simultaneously
  • 1 x 2-channel 3.5mm unbalanced out
  • 1 x 2-channel 4.4mm balanced out
  • 1 x 4-channel 24-bit/48k UAC out
  • Encoding 8-channel 24-bit Dante® streams in unicast or multicast
  • Encoding 1 x 4-channel 16-bit audio for RTSP/SRT/NDI® audio stream simultaneously
  • Any analog or IP-based input channel can be routed and mixed into any analog, IP or UAC output via a web-based user interface
  • Support for Dante Controller, providing signal routing and configuration
  • Plug-and-play as a UAC device
  • Provide comprehensive information regarding the device and signals in real-time
  • Remote control via Web GUI and Magewell Cloud
  • Provide HTTP APIs

Further resources

Magewell Bridge for NDI® Select
NewTek NDI® Tools Select
Compatible Software Select
User Manual for Pro Convert Encoders Download
User Manual PRO Convert Decoders Download
Short FAQs about Pro Convert Download
Quick Start Guide for Pro Convert Audio DX Download
Pro Convert Product Selector & Downloads Select

Specifications

Pro Convert Audio DX Specifications

Receiving/Input Features
  • Support for sample rates of 96/48/44.1 KHz, and 16/24bit sample depth
  • 1 x 2-channel 3.5mm TRS unbalanced in (5k Ohm)
  • 1 x 2-channel 4.4mm TRRRS balanced in (20k Ohm)
  • 1 x 4-channel 24-bit/48k USB Audio Class in
  • Receiving 8-channel 24-bit Dante® flows in unicast or multicast
  • Receiving 1 x 4-channel 16-bit SRT network audio stream
  • Receiving 1 x 4-channel 16-bit NDI® network audio stream
  • Support for PTP master/slave
  • Total harmonic distortion < 0.01% @ +4dBu
  • Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
  • Signal to noise ratio > 100dB
  • Dynamic range > 100dB
  • Max signal level: unbalanced at 12dBu, balanced at 24dBu

Transmitting/Output Features
  • Support for sample rates of 96/48/44.1 KHz, and 16/24bit sample depth
  • 1 x 2-channel 3.5mm TRS unbalanced out (10 Ohm)
  • 1 x 2-channel 4.4mm TRRRS balanced out (150 Ohm)
  • 1 x 4-channel 24-bit/48k UAC out
  • Encoding 8-channel 24-bit Dante® flows in unicast or multicast
  • Encoding 1 x 4-channel 16-bit SRT network audio stream
  • Encoding 1 x 4-channel 16-bit NDI® network audio stream
  • Encoding 1 x 4-channel 16-bit RTSP network audio stream
  • Support for PTP master/slave
  • Total harmonic distortion < 0.01% @ +4dBu
  • Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
  • Dynamic range > 100dB
  • Signal to noise ratio > 100dB
  • Max signal level: unbalanced at 12dBu, balanced at 18dBu

Configuration Management
  • Support for Dante Controller, providing signal routing and configuration
  • Registration with Magewell Cloud
  • Remote control via WebUI and Magewell Cloud
  • Provision of comprehensive information regarding the device and signals in real-time
  • Configuration of how an input is processed and encoded, including sampling, packets, PTPv2 (IEEE 1588–2008), volume setting, audio matrix, buffer, as well as the network connection
  • Support for updating firmware
  • Support for USB NET
  • Support for IE/Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provision of HTTP APIs

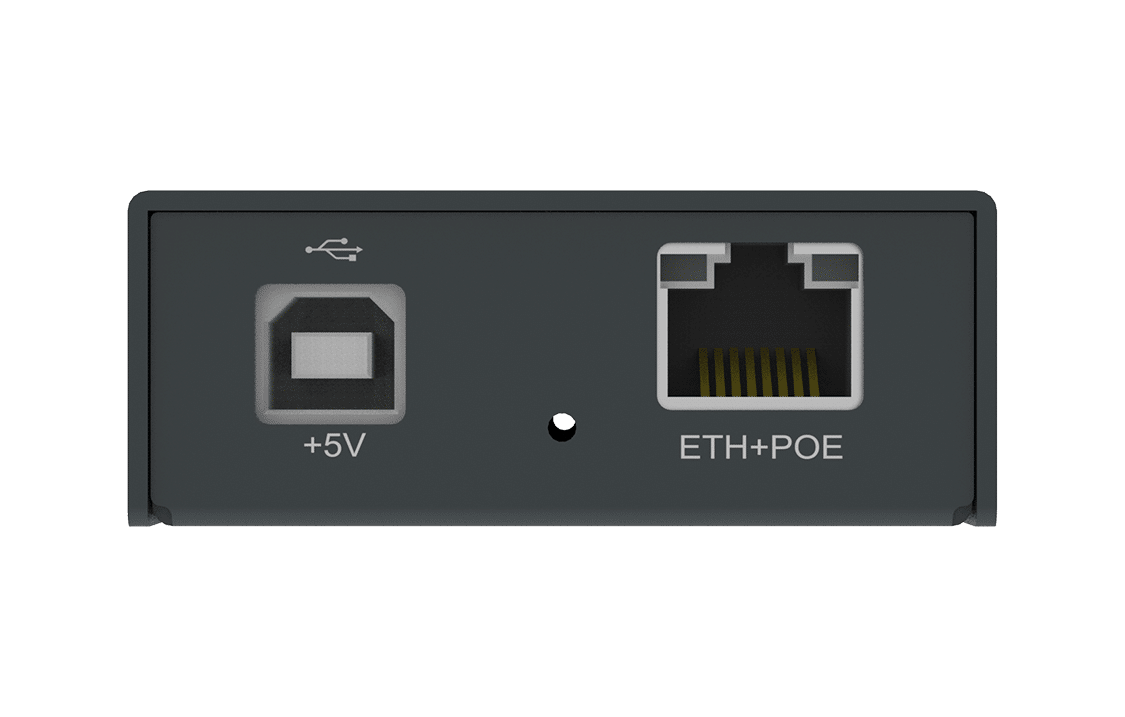

Interfaces
  • 10/100/1000Mbps with PoE (IEEE 802.3af)
  • USB2.0 Type B
    • 5V/2.1A power supply
    • USB NET
  • 3.5mm TRS unbanlanced IN/OUT
  • 4.4mm TRRRS banlanced IN/OUT

LED Indicators
  • Power LED indications:
    • on: power on
    • off: power off
  • PTP LED indications:
    • on: synced
    • off: not synced
    • blinking: syncing

Form Factor
  • 100.9mm (L) x 60.2mm (W)x 23.3mm (H)

Accessories
  • 4.4mm to Dual XLR Male Cable
  • 4.4mm to Dual XLR Female Cable
  • USB 2.0 cable (Type A to Type B)
  • Universal power adapter
  • L bracket

On-board Control Buttons
  • 16 Position Rotary DIP Switch: set board-index from 0 to F

Screw Mounting Hole
  • ¼–20 threaded hole

Power Consumption
  • 5V max current: ~ 1 A
  • Max power consumption: ~ 5 W

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing

Accessories

Power Adapter (US/EU/UK/AU/JP)x1
Part number: ACC08010
Power Adapter (KR) x1
Part number: ACC08015
USB Type A to Type B cable x1
Part number: ACC00065

4.4mm to Dual XLR Male Cable x1
Part number: ACC10008
Part number: 90110

4.4mm to Dual XLR Female Cable x1
Part number: ACC10009
L bracket x1
Part number: 92240



Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
