Magewell Ultra Stream App
 |
Search and Discover Devices AutomaticallyIf the Bluetooth of the smart phone is turned on, the Magewell Ultra Stream App can discover the encoders via Ethernet or Wi-Fi. When your smart phone and your Ultra Stream encoders are connected within the same subnet, the App will search for available devices automatically and pair your phone with the Ultra Stream encoder you choose. Even if there is no Wi-Fi network onsite or the wireless environment is complicated, you can turn on the AP mode of the encoder via your Ultra Stream App to connect the encoder to your phone. You can check here for how to enable the AP mode. |
Live Streaming Made Easier
|
 |
More Choices for Video Recording
- With the Ultra Stream Encoder - Record and save clips to internal storage, a USB flash drive or the associated smartphone
- Support normal and loop recording mode when recording to the internal storage (In normal recording mode, recording will stop automatically when the storage space is full. In the loop recording mode, the saved file is automatically overwritten with the newly generated one when the storage space is full.)
- Support timer setting for short videos and taking screenshots when recording to the smartphone.

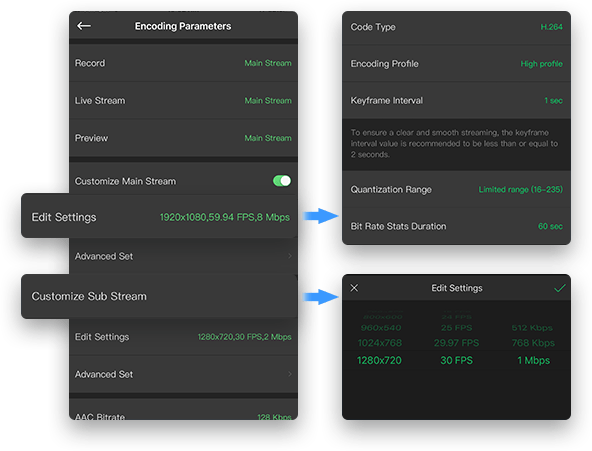

More Advanced Settings for Encoding
- Support for setting volume, network, recording and streaming parameters
- Support simultaneous main stream and sub stream encoding with customizable parameters (Support previewing main stream on the App)
- Bitrate for main stream is up to 8 Mbps while for sub stream is 1 Mbps
 |

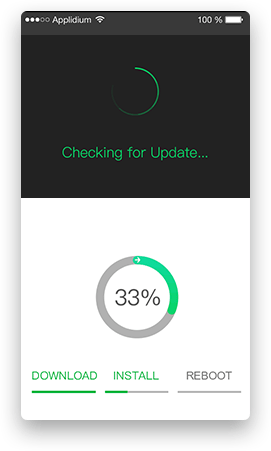

Upgrade Firmware OnlineWhen connected to the network, Magewell Ultra Stream App can automatically detect the latest firmware and help users to complete online upgrade. |
Magewell Ultra Stream
-
![ultra encode sdi]()
MORE INFOMagewell Ultra Encode SDI
Ultra Encode SDI – A Flexible & Affordable Universal Encoder- Live H.264/H.265 streaming
- Supports streaming protocols including SRT, NDI|HX, HLS & more
- Suitable for various network environment
SKU: 530500000 (for US/EU/UK/AU/JP users);
The new encoder also supports a flexible range of streaming protocols including RTMP, RTMPS, RTSP, RTP, HLS, and SRT (Secure Reliable Transport, developed and open-sourced by Haivision). Configurable presets enable easy streaming to YouTube™ Live, Facebook™ Live, Twitch™, or custom targets, with select protocols allowing simultaneous streaming to multiple destinations using independent encoding parameters for each stream.
-
![Ultra Encode HDMI]()
MORE INFOMagewell Ultra Encode HDMI
A Flexible & Affordable Universal Encoder
- Live H.264/H.265 streaming
- Supports streaming protocols including SRT, NDI|HX, HLS & more
- Suitable for various network environment
SKU: 530400000 (for US/EU/UK/AU/JP users);
530400001 KR
The new encoder also supports a flexible range of streaming protocols including RTMP, RTMPS, RTSP, RTP, HLS, and SRT (Secure Reliable Transport, developed and open-sourced by Haivision). Configurable presets enable easy streaming to YouTube™ Live, Facebook™ Live, Twitch™, or custom targets, with select protocols allowing simultaneous streaming to multiple destinations using independent encoding parameters for each stream.
-
![Magewell Ultra Stream SDI]()
MORE INFOMagewell Ultra Stream SDI
Magewell Ultra Stream SDI encoder enable users to record or stream high-quality video with one click using on-device buttons or an intuitive smartphone app. Customers can stream live to popular services such as YouTube, Facebook Live and Twitch or to a custom-specified RTMP server, and can simultaneously record video as files to a USB drive or the associated smartphone.
- Record and stream 1 channel of 3G SDI + embedded audio + microphone
- Loop-through SDI + embedded audio
Magewell PN: Please choose the device which meets your local power supply standard. 53020 US; 53022 EU; 53023 UK; 53024 AU; 53025 KR; 53026 JP
Magewell Ultra Stream SDI Sandalone Encoder, Standalone box for recording and streaming, SDI with loop-through. 2 simultaneous streaming, RTMP to Youtube Live, Facebook Live and Twitch
-
![Magewell Ultra Stream HDMI]()
MORE INFOMagewell Ultra Stream HDMI
Magewell Ultra Stream HDMI standalone encoder enable users to record or stream high-quality video with one click using on-device buttons or an intuitive smartphone app. Customers can stream live to popular services such as YouTube, Facebook Live and Twitch or to a custom-specified RTMP server, and can simultaneously record video as files to a USB drive or the associated smartphone.
- HDMI in with an HDMI loop out up to 4k
- Encodes in HD up to 1080p60 at 8 Mbps
- Separate 3.5mm microphone in & headphone monitoring jacks
- Supports two simultaneous streaming destinations
- Ethernet and WiFi
- USB port for recording H.264 MP4 files
- Controlled by Android 5 and up or iOS 9 onwards app with monitoring
Magewell Part Number: Please choose the device which meets your local power supply standard. 53010 US; 53012 EU; 53013 UK
Live streaming to platforms of your choice. Magewell Ultra Stream HDMI is a Single-Channel HD Streaming Encoder that makes live streaming remarkably easy for everyone! Supports up to 4K60p HDMI input and loop-through with real-time down conversion to HD.
