All-in-one single-channel capture covering SDI, HDMI, DVI, VGA, CVBS and S-Video.
Ask us a quick question about this product — signal compatibility, use case fit, or anything technical. We usually reply the same day.

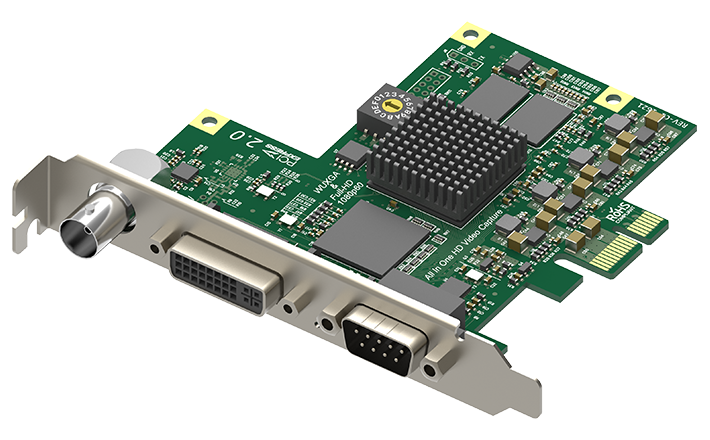

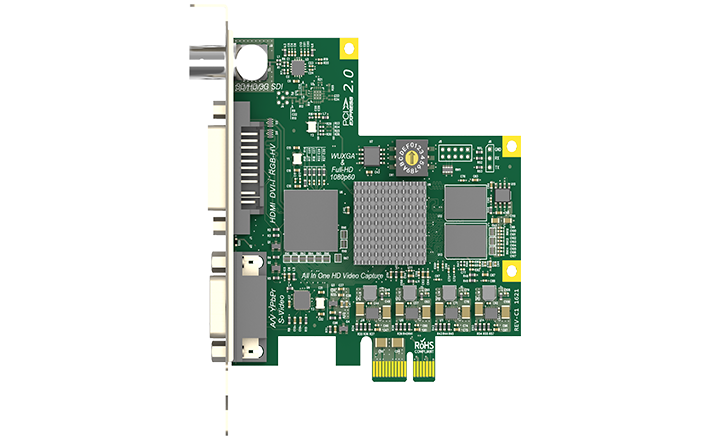

The Pro Capture AIO is the swiss-army card — a single capture channel that accepts SDI, HDMI, DVI-I, VGA, YPbPr component, CVBS composite and S-Video on one full-height PCIe x1 card. The source format is selected in software, so the same hardware adapts to whatever signal the room provides.
This flexibility is the entire point of the card. We supply it most often into facilities with mixed legacy and modern equipment — lecture theatres with both HDMI laptops and VGA visualisers, medical facilities mixing newer SDI cameras with older DVI imaging equipment, broadcast archive operations digitising tapes from multiple analogue formats, and any environment where the integrator simply does not know in advance what will be plugged in.
The FPGA processing handles the format conversion in hardware, so the captured video is normalised regardless of input type. From the software side it always appears as a single video device.
| SKU | 110200000 |
| Brand | Magewell |
| Category | Pro Capture |
| Form Factor | Low-profile PCIe x1 — 92.76mm × 68.88mm |
| Host Interface | PCIe Gen2 x1 |

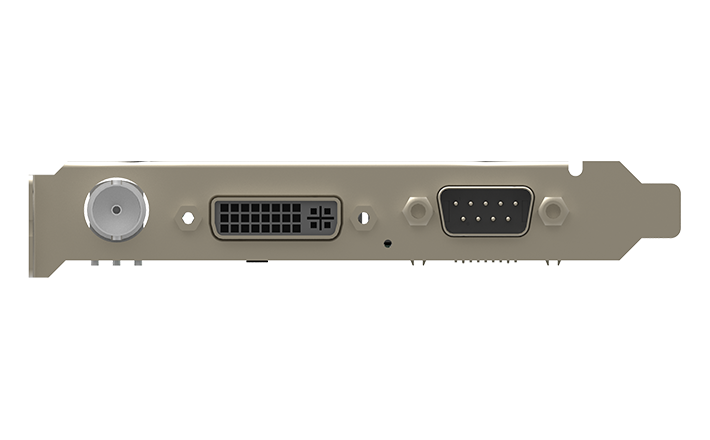

| Video Input | 1× HDMI type A (HDMI 1.4a) + 1× BNC (SD/HD/3G-SDI) + DB9 (Analogue) |
| Loop-through | 1× BNC (SDI loop-through) |
| Max Input Resolution | 2048×2160 (HDMI) / 2048×1080 (SDI) |
| Signal Features | HDMI: 225MHz receiver, cables up to 30m — Custom EDID — 8/10/12-bit colour — RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 — Up to 8-ch IEC60958/IEC61937 audio — InfoFrames — 3D (SBS, T&B, Frame Packing) — Sony/Canon DSLR timecode — SDI: Cable equalizer: SD-SDI up to 330m, HD-SDI 190m, 3G-SDI 150m — SD/HD/3Ga/3Gb/3Gb-DL — 2K (2048×1080) — RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 — 10/12-bit — Up to 8-ch audio at 48kHz — SMPTE 352 — Closed Captions via SDK |
| Video Capture Formats | 4:2:0 8-bit: NV12, I420, YV12 — 4:2:2 8-bit: YUY2, YUYV, UYVY — 4:4:4 8-bit: V308, IYU2, V408, BGR24, BGR32 — 4:4:4 10-bit: V410, Y410 — Up to 144fps (resolution & bandwidth dependent) |
| Video Processing | Full 10-bit pipeline (~180 Mpixels/s ×2) — Scaling, Cropping, De-interlace (Weave/Blend/Top/Bottom) — Aspect ratio (Anamorphic/Crop/Letterbox) — Colour space (RGB, YCbCr 601/709/2020) — Frame rate conversion — OSD (PNG up to capture res) |
| Audio | HDMI embedded (up to 8-ch) + SDI embedded (up to 8-ch) + Analogue stereo via DB9 |
| Multi-Stream | Unlimited simultaneous capture streams per channel — independent crop/colour/resolution/frame rate per stream |
| Latency | Ultra low — 64 video lines |
| DMA Bandwidth | ~400 MB/s (PCIe 2.0) — ~200 MB/s (PCIe 1.0) — Intel tiled GPU, AMD DirectGMA, Nvidia GPUDirect |
| Sync & Timestamp | Hardware 100ns clock — A/V synchronisation — Multi-card sync via SDK |
| Recommended OS | Windows 10/11/Server 2016/2019/2022/2025 (x86 & x64) — Linux x86/x64/ARM kernel 2.6.35+ — macOS 10.9+ / 10.12+ |
| Supported APIs | Windows: DirectShow, DirectKS, WASAPI/Wave/DirectSound — Linux: V4L2, ALSA — macOS: AVCaptureSession, AudioUnit — Magewell Capture SDK |
| Compatible Software | VLC, VirtualDub, OBS, XSplit, vMix, Wirecast, Adobe Flash Media Encoder, Microsoft Media Encoder, any DirectShow/V4L2/AVCaptureSession software |
| Multi-Card / SDK | Magewell Capture SDK — rotary switch 0–F for multi-card systems — safe firmware upgrade without shutdown |
| LED Indicator | Pulsing slowly: no signal — On: signal locked — Double blink: memory/FPGA error — Off: firmware/power fault |
| Power | Max 6W |
| Working Environment | Operating: 0°C to 60°C — Storage: −20°C to 70°C — Humidity: 5–90% non-condensing |
| UK Stock | In Stock |
| Warranty | 2–3 Years (Magewell manufacturer warranty) |
Full specifications: magewell.com/tech-specs/pro-capture-aio ↗
Everything included in the box with the Pro Capture AIO. Part numbers and accessory images from official Magewell documentation.


If anything is missing from your delivery, contact us within 7 days and we will arrange a replacement.
Official Magewell documentation for the Pro Capture AIO. Datasheet is mirrored on our server for direct download; drivers, firmware and software live on Magewell's download centre and open in a new tab.
Browse the full Magewell literature library for all product catalogues and datasheets.
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
The Pro Capture AIO uses a Full-height PCIe x1 slot. It will also fit in larger PCIe slots (x8, x16) as PCIe is backward compatible, but will run at the card's native lane width.
The Pro Capture AIO is a capture card. Simultaneous playback (loop-through) depends on the specific model — check the Loop-Through spec in the full specification table. ForeFront Imaging can advise if you need simultaneous I/O.
The Pro Capture AIO works with any software that supports DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS), including OBS Studio, vMix, Wirecast, Capture One, XSplit and most broadcast NLE software. Magewell's free Capture Express software is also available.
The Pro Capture AIO accepts SDI, HDMI, DVI-I, VGA, YPbPr, CVBS, S-Video.
The Pro Capture AIO captures at up to 1920x1080 @ 60fps.
Yes. Magewell Pro Capture cards are fully supported on Windows 10 and Windows 11. Driver downloads are available free from Magewell's website and from our Software page.
