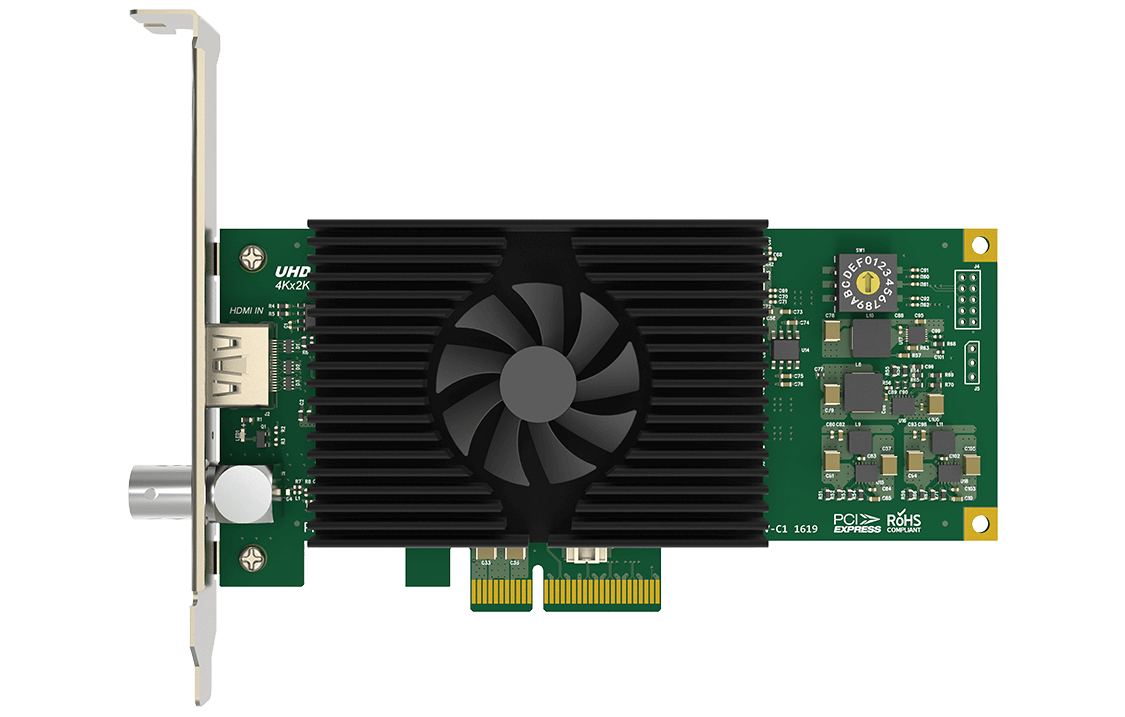

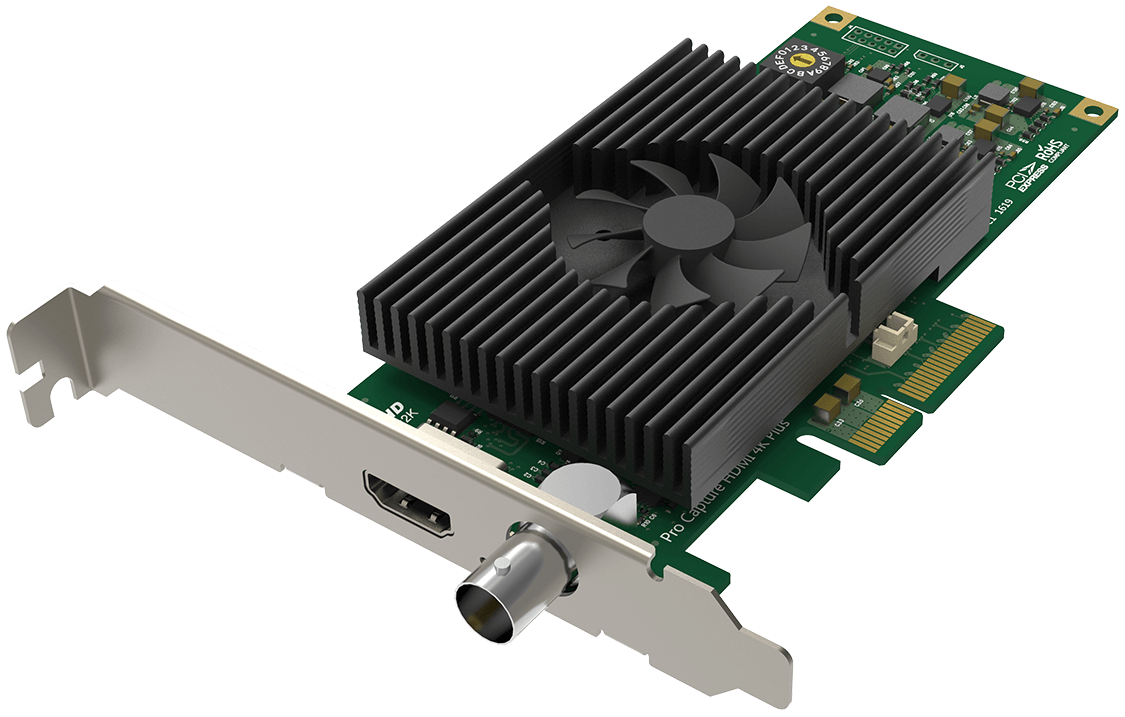

Pro Capture AIO 4K Plus
HDMI 4K60 + SDI 4K30 on one low-profile PCIe x4 card — the 4K all-in-one.
- ✓HDMI 2.0 input up to 4Kp60
- ✓SDI input up to 4Kp30 (6G-SDI)
- ✓Low-profile PCIe x4
- ✓FPGA processing per channel
- ✓24/7 rated
About this product
The Pro Capture AIO 4K Plus combines HDMI 4K60 and SDI 4K30 capture on a single low-profile PCIe x4 card. It is the all-in-one card for production workstations that need both HDMI and SDI 4K ingest without dedicating two slots.
The most common deployment we see is in mixed-format facilities where some 4K equipment outputs HDMI (cameras, players, computer outputs) and others output SDI (broadcast cameras, production switchers). One card slot, both formats, both at 4K. The HDMI input handles the full 4K60 standard; the SDI input handles up to 4K30 over 6G-SDI.
Each input has its own FPGA processing path, so the two streams run completely independently. Software sees them as two separate capture devices.
Related Products
New products and Magewell updates
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
Further Reading
Frequently Asked Questions
The Pro Capture AIO 4K Plus uses a Low-profile PCIe x4 slot. It will also fit in larger PCIe slots (x8, x16) as PCIe is backward compatible, but will run at the card's native lane width.
The Pro Capture AIO 4K Plus is a capture card. Simultaneous playback (loop-through) depends on the specific model — check the Loop-Through spec in the full specification table. ForeFront Imaging can advise if you need simultaneous I/O.
The Pro Capture AIO 4K Plus works with any software that supports DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS), including OBS Studio, vMix, Wirecast, Capture One, XSplit and most broadcast NLE software. Magewell's free Capture Express software is also available.

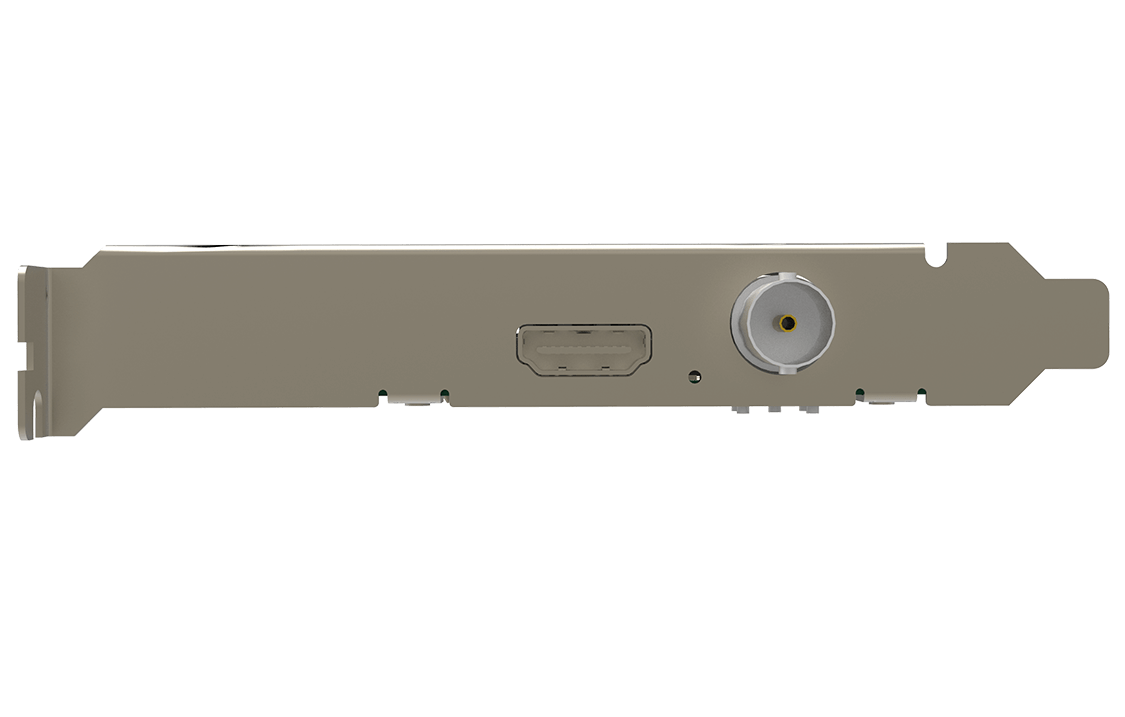

The Pro Capture AIO 4K Plus accepts 1x HDMI 2.0 + 1x 6G-SDI.
See the specification table above for the full list of supported resolutions and frame rates.
Yes. Magewell Pro Capture cards are fully supported on Windows 10 and Windows 11. Driver downloads are available free from Magewell's website and from our Software page.
