Pro CaptureIn Stock

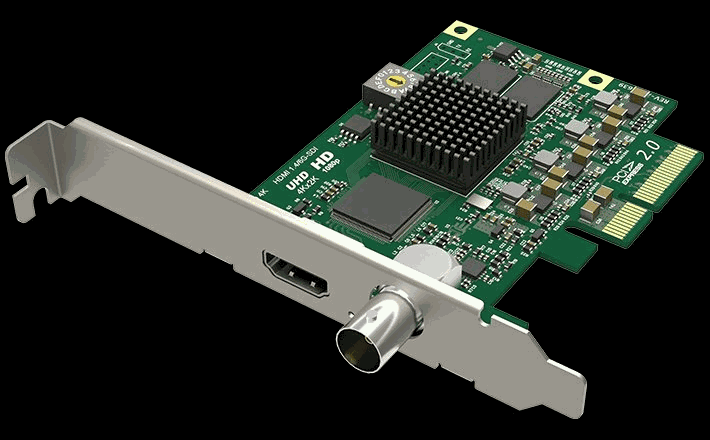

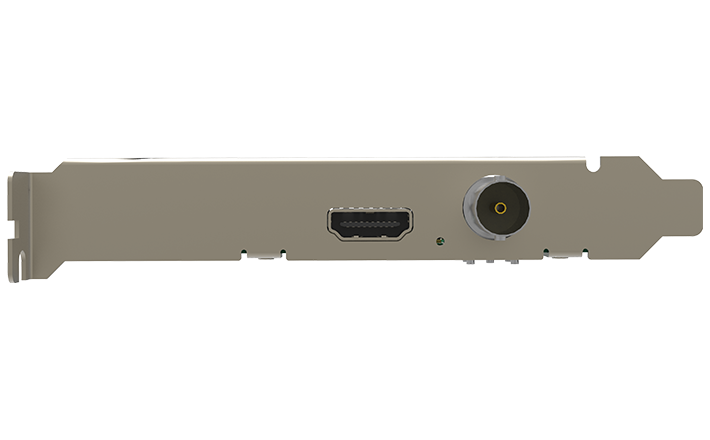

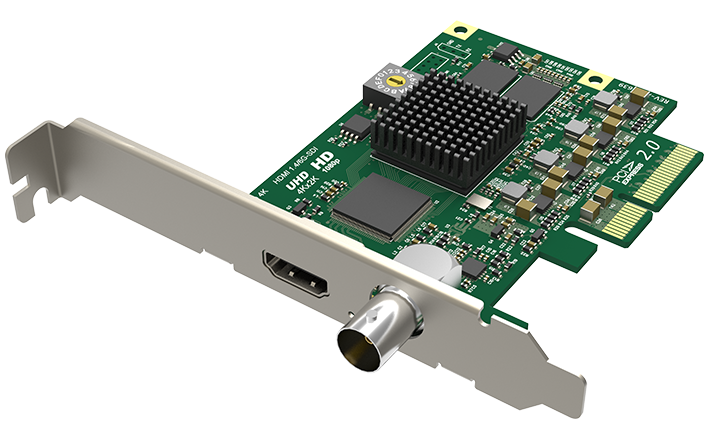

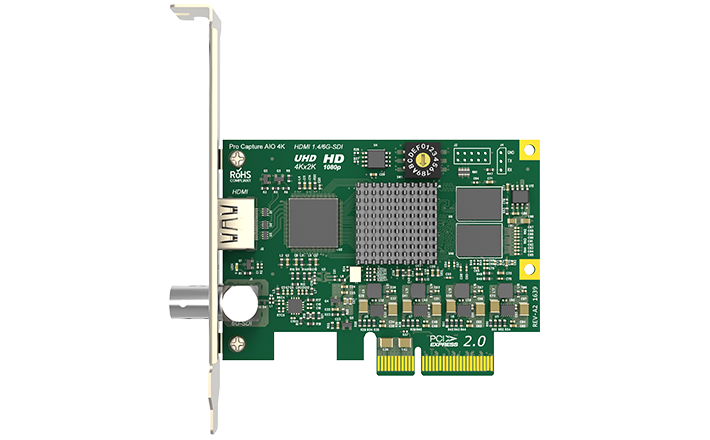

Pro Capture AIO 4K
SKU: 111700000
HDMI 4K30 + SDI 4K30 multi-format 4K capture on a single low-profile PCIe x4 card.
The Magewell Pro Capture AIO 4K provides single-channel multi-format 4K capture, accepting HDMI, SDI, DVI, VGA and YPbPr inputs at up to 4Kp30. The flexible 4K all-in-one ingest card for facilities with a mix of digital and analogue 4K sources.
Same multi-input flexibility as the standard Pro Capture AIO but with 4K-capable processing. Useful for medical imaging, post-production and mixed-source 4K workflows where a single card needs to handle whatever signal comes through the door.
HDMI 4K30+SDIPCIe x4LP24/7
💡
Need help choosing? Call us on +44 (0)116 277 5730 — Mon–Fri 9am–5pm
Key Features
- ✓HDMI 2.0 input up to 4Kp30
- ✓SDI input up to 4Kp30 (6G-SDI)
- ✓DVI, VGA, YPbPr and analogue inputs
- ✓Low-profile PCIe x4
- ✓FPGA processing
- ✓24/7 continuous operation rated
Ideal For
Mixed-Source 4K Capture
One card for facilities with both digital and analogue 4K sources.
Medical Imaging
Capture from 4K surgical cameras alongside legacy imaging equipment.
Post-Production
Ingest archival material in mixed formats on a single capture card.
Full Specifications
| SKU | 111700000 |
| Form Factor | Low-profile PCIe x4 |
| Video Input | HDMI 2.0 + 6G-SDI + DVI-I + VGA + YPbPr |
| Max Capture Res | 3840x2160 @ 30fps |
| Audio | Embedded HDMI/SDI + analogue line-in |
| Warranty | 3 Years |
Compatible Software
vMixWirecastAdobe PremiereOBS Studio
