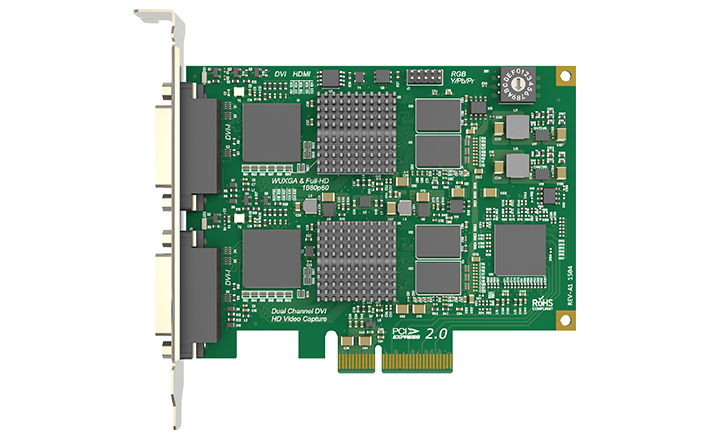

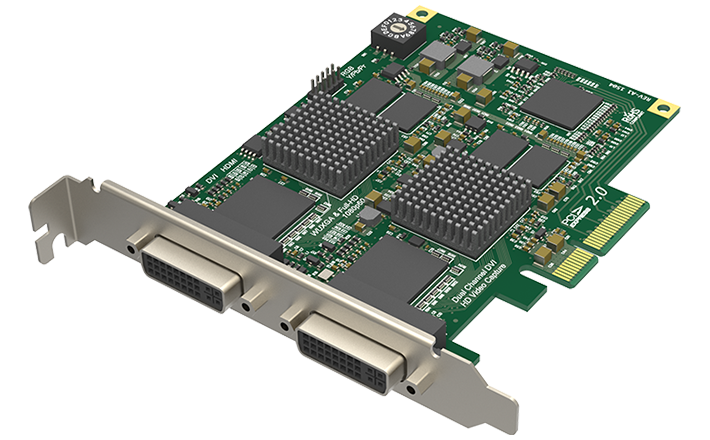

Pro Capture Dual DVI
Two independent multi-format channels on a single full-height PCIe x4 card.
- ✓Two independent multi-format channels
- ✓DVI-I + HDMI + VGA + analogue per channel
- ✓Full-height PCIe x4
- ✓FPGA per channel
- ✓24/7 rated
About this product
The Pro Capture Dual DVI is two Pro Capture DVI engines on one PCIe x4 card. Each channel accepts DVI-I, HDMI, VGA, YPbPr Component, CVBS composite or S-Video independently, allowing two completely different source types to be captured simultaneously.
This is the card we recommend for dual-source rooms in lecture-capture and corporate AV — the typical install is one channel capturing the room camera (often modern HDMI) and the second capturing whatever the lectern presents (often a mix of VGA and HDMI laptops). Both channels appear as separate video devices to the recording software.
The FPGA per channel means mixed-format input has no penalty — an HDMI laptop on one channel and a VGA visualiser on the other behave exactly the same as two HDMI cameras would.
Related Products
New products and Magewell updates
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
Further Reading
Frequently Asked Questions
The Pro Capture Dual DVI uses a Full-height PCIe x4 slot. It will also fit in larger PCIe slots (x8, x16) as PCIe is backward compatible, but will run at the card's native lane width.
The Pro Capture Dual DVI is a capture card. Simultaneous playback (loop-through) depends on the specific model — check the Loop-Through spec in the full specification table. ForeFront Imaging can advise if you need simultaneous I/O.
The Pro Capture Dual DVI works with any software that supports DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS), including OBS Studio, vMix, Wirecast, Capture One, XSplit and most broadcast NLE software. Magewell's free Capture Express software is also available.

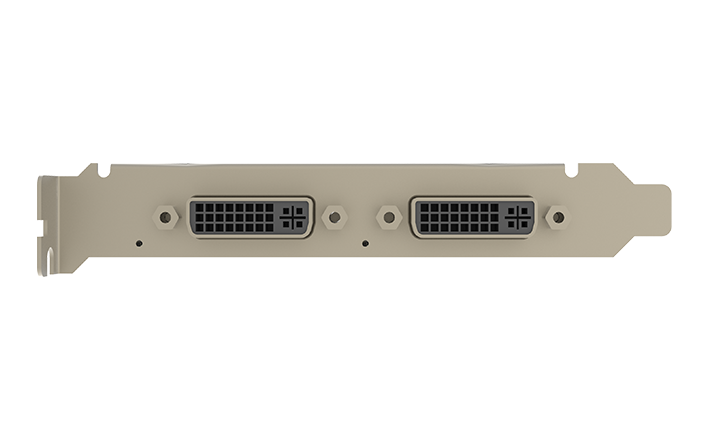

The Pro Capture Dual DVI accepts 2x DVI-I (HDMI, VGA, YPbPr, CVBS, S-Video).
The Pro Capture Dual DVI captures at up to 1920x1200 per channel.
Yes. Magewell Pro Capture cards are fully supported on Windows 10 and Windows 11. Driver downloads are available free from Magewell's website and from our Software page.
