Single-channel multi-format capture: DVI-I, HDMI, VGA, YPbPr, CVBS and S-Video.
Ask us a quick question about this product — signal compatibility, use case fit, or anything technical. We usually reply the same day.

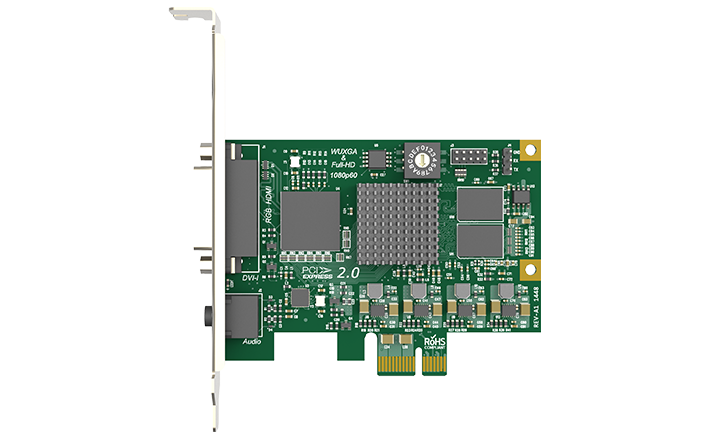

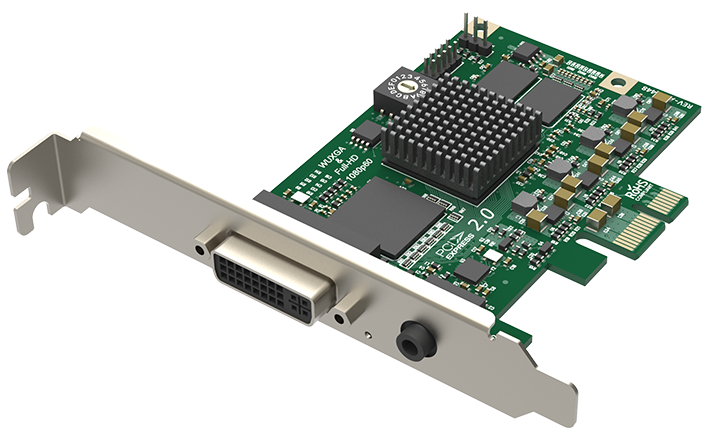

The Pro Capture DVI is the flexible multi-format card for installations where the source format varies day to day — DVI-I, HDMI, VGA, YPbPr Component, CVBS composite, S-Video and stereo audio, all on a single low-profile PCIe x1 card.
For lecture capture and corporate AV this card has been a fixture for years. The reason is simple: lecturers, presenters and visiting guests bring all kinds of laptops with all kinds of video outputs, and the AV system has to handle whatever appears at the lectern. The DVI card swallows almost any video signal and presents a normalised stream to the recording software.
It also remains a popular choice in medical and industrial applications where modern HDMI equipment sits alongside older DVI and VGA imaging hardware that has years of useful life left. The same FPGA processing pipeline as the rest of the Pro Capture range means colour reproduction and frame timing are consistent regardless of input format.
| SKU | 110300000 |
| Brand | Magewell |
| Category | Pro Capture |
| Form Factor | Low-profile PCIe x1 — 92.76mm × 68.88mm |
| Host Interface | PCIe Gen2 x1 |

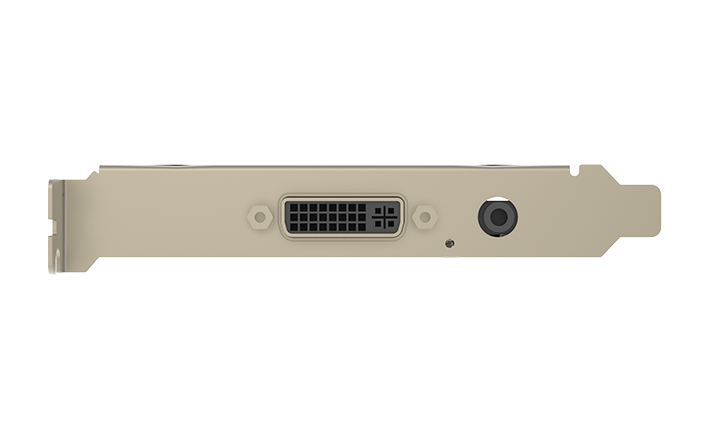

| Video Input | 1× DVI-I (DVI-D, DVI-A, HDMI via adapter, VGA via adapter) + DB9 (Analogue) |
| Loop-through | None |
| Max Input Resolution | 2048×2160 |
| Signal Features | DVI-I dual/single link — HDMI 1.3 (via DVI-I) — VGA/Component/CVBS/S-Video via DB9 — 12-bit ADC — NTSC/PAL/SECAM — DMT/CEA/CVT/GTF timings |
| Video Capture Formats | 4:2:0 8-bit: NV12, I420, YV12 — 4:2:2 8-bit: YUY2, YUYV, UYVY — 4:4:4 8-bit: V308, IYU2, V408, BGR24, BGR32 — 4:4:4 10-bit: V410, Y410 — Up to 144fps (resolution & bandwidth dependent) |
| Video Processing | Full 10-bit pipeline (~180 Mpixels/s ×2) — Scaling, Cropping, De-interlace (Weave/Blend/Top/Bottom) — Aspect ratio (Anamorphic/Crop/Letterbox) — Colour space (RGB, YCbCr 601/709/2020) — Frame rate conversion — OSD (PNG up to capture res) |
| Audio | HDMI embedded (up to 2-ch via DVI-I) + Analogue stereo via DB9 |
| Multi-Stream | Unlimited simultaneous capture streams per channel — independent crop/colour/resolution/frame rate per stream |
| Latency | Ultra low — 64 video lines |
| DMA Bandwidth | ~400 MB/s (PCIe 2.0) — ~200 MB/s (PCIe 1.0) — Intel tiled GPU, AMD DirectGMA, Nvidia GPUDirect |
| Sync & Timestamp | Hardware 100ns clock — A/V synchronisation — Multi-card sync via SDK |
| Recommended OS | Windows 10/11/Server 2016/2019/2022/2025 (x86 & x64) — Linux x86/x64/ARM kernel 2.6.35+ — macOS 10.9+ / 10.12+ |
| Supported APIs | Windows: DirectShow, DirectKS, WASAPI/Wave/DirectSound — Linux: V4L2, ALSA — macOS: AVCaptureSession, AudioUnit — Magewell Capture SDK |
| Compatible Software | VLC, VirtualDub, OBS, XSplit, vMix, Wirecast, Adobe Flash Media Encoder, Microsoft Media Encoder, any DirectShow/V4L2/AVCaptureSession software |
| Multi-Card / SDK | Magewell Capture SDK — rotary switch 0–F for multi-card systems — safe firmware upgrade without shutdown |
| LED Indicator | Pulsing slowly: no signal — On: signal locked — Double blink: memory/FPGA error — Off: firmware/power fault |
| Power | Max 4.59W |
| Working Environment | Operating: 0°C to 60°C — Storage: −20°C to 70°C — Humidity: 5–90% non-condensing |
| UK Stock | In Stock |
| Warranty | 2–3 Years (Magewell manufacturer warranty) |
Full specifications: magewell.com/tech-specs/pro-capture-dvi ↗
Everything included in the box with the Pro Capture DVI. Part numbers and accessory images from official Magewell documentation.


If anything is missing from your delivery, contact us within 7 days and we will arrange a replacement.
Official Magewell documentation for the Pro Capture DVI. Datasheet is mirrored on our server for direct download; drivers, firmware and software live on Magewell's download centre and open in a new tab.
Browse the full Magewell literature library for all product catalogues and datasheets.
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
The Pro Capture DVI uses a Low-profile PCIe x1 slot. It will also fit in larger PCIe slots (x8, x16) as PCIe is backward compatible, but will run at the card's native lane width.
The Pro Capture DVI is a capture card. Simultaneous playback (loop-through) depends on the specific model — check the Loop-Through spec in the full specification table. ForeFront Imaging can advise if you need simultaneous I/O.
The Pro Capture DVI works with any software that supports DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS), including OBS Studio, vMix, Wirecast, Capture One, XSplit and most broadcast NLE software. Magewell's free Capture Express software is also available.
The Pro Capture DVI accepts DVI-I, HDMI, VGA, YPbPr, CVBS, S-Video.
The Pro Capture DVI captures at up to 1920x1200.
Yes. Magewell Pro Capture cards are fully supported on Windows 10 and Windows 11. Driver downloads are available free from Magewell's website and from our Software page.
