Pro CaptureIn Stock

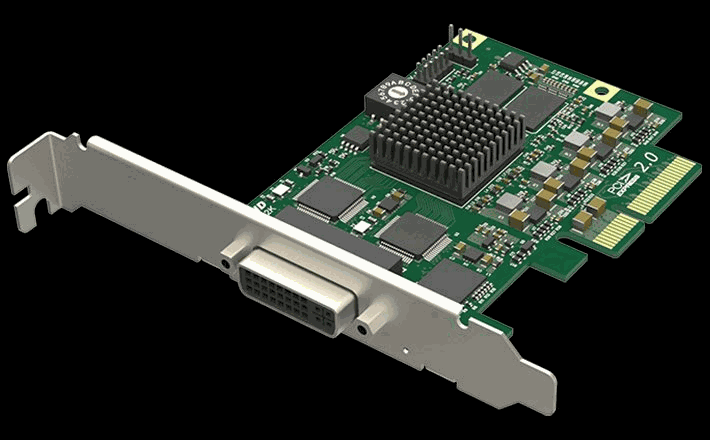

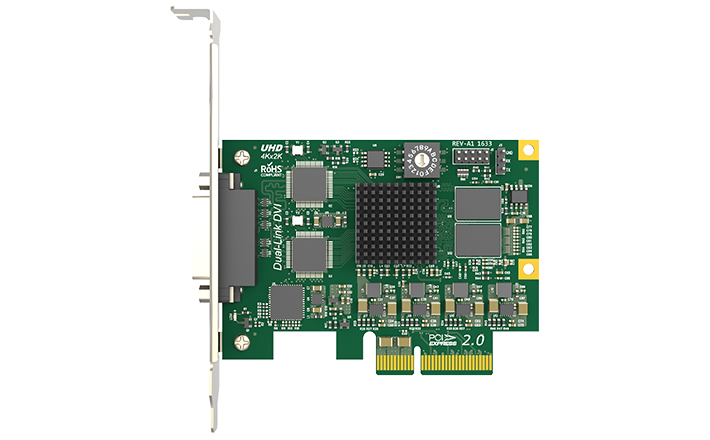

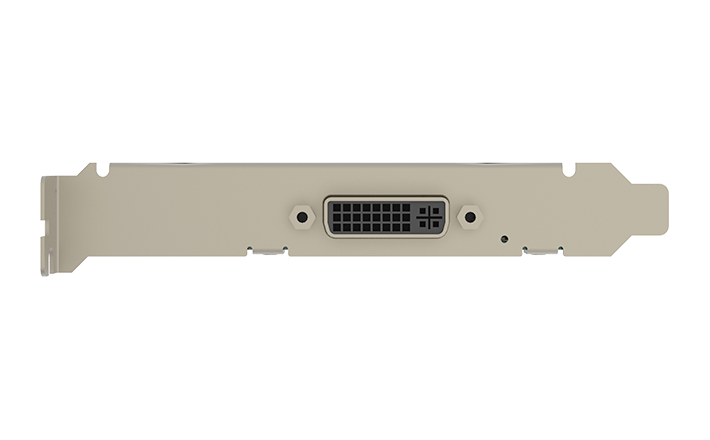

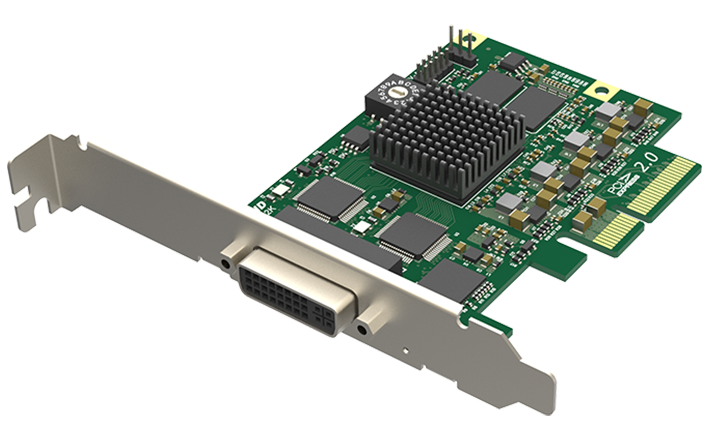

Pro Capture DVI 4K
SKU: 111600000
4K-capable multi-format capture: DVI-I, HDMI, VGA, YPbPr and analogue on one PCIe x4 card.
The Magewell Pro Capture DVI 4K is the 4K-capable evolution of the Pro Capture DVI. It accepts DVI-I, HDMI 2.0 up to 4Kp30, VGA, YPbPr Component, CVBS composite, S-Video and stereo audio on a single low-profile PCIe x4 card.
The flexible card for facilities that need a single capture solution for both modern 4K HDMI sources and legacy DVI, VGA or analogue equipment. Common in medical, broadcast archive and university lecture-capture installations where source formats vary widely across the estate.
DVI-IHDMI 4K30PCIe x4Multi-Format
💡
Need help choosing? Call us on +44 (0)116 277 5730 — Mon–Fri 9am–5pm
Key Features
- ✓DVI-I + HDMI 2.0 + VGA + YPbPr + CVBS + S-Video + stereo audio
- ✓HDMI input up to 4Kp30 (3840x2160)
- ✓Low-profile PCIe x4
- ✓FPGA processing
- ✓24/7 continuous operation rated
Ideal For
Multi-Source 4K Capture
One card for mixed digital and analogue 4K workflows.
Medical Imaging
Capture from 4K surgical cameras alongside legacy DVI/VGA imaging equipment.
Lecture Capture
One card for any source the lecturer plugs in — 4K HDMI laptop, VGA projector, document camera.
Full Specifications
| SKU | 111600000 |
| Form Factor | Low-profile PCIe x4 |
| Video Input | DVI-I, HDMI 2.0, VGA, YPbPr, CVBS, S-Video |
| Max Capture Res | 3840x2160 @ 30fps via HDMI |
| Audio | Embedded HDMI + analogue stereo line-in |
| Warranty | 3 Years |
Compatible Software
vMixWirecastOBS StudioFFmpeg
