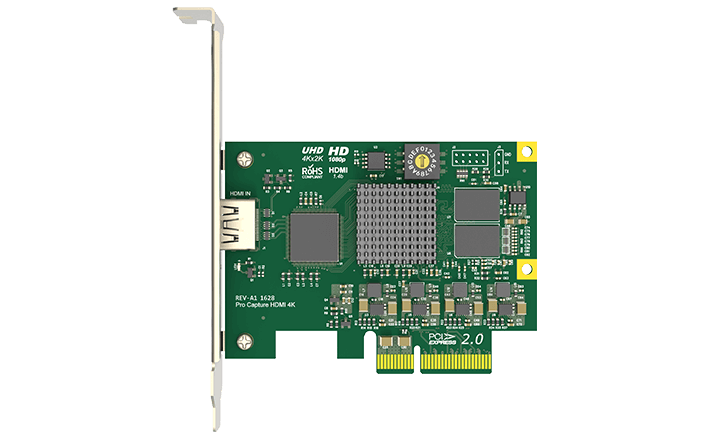

Pro Capture HDMI 4K
Single-channel 4K HDMI PCIe capture at up to 4Kp30 on a low-profile x4 card.
- ✓HDMI 2.0 input up to 4Kp30
- ✓Low-profile PCIe x4 — 1U server compatible
- ✓FPGA processing — broadcast-grade colour
- ✓Cost-effective 4K capture — full resolution at 30fps
- ✓24/7 continuous-operation rated
About this product
The Pro Capture HDMI 4K is the cost-effective entry point to 4K HDMI capture in the Pro Capture range. It captures HDMI 2.0 at up to 4Kp30 (3840x2160 at 30 frames per second) — the right specification when full 4K resolution matters but the source is happy at 30fps.
The 30fps cap rather than 60 makes this card meaningfully cheaper than the HDMI 4K Plus, and for many common applications — corporate AV, lecture capture, medical recording, archive ingest — 30fps is plenty. Cinema content runs at 24fps, broadcast cameras can output at 25 or 30, and most computer outputs are 30 or 60 with little visible difference at typical viewing distances.
Low-profile PCIe x4 form factor fits 1U rack servers, which matters for permanent installation in ingest racks. Same broadcast-grade FPGA processing as the rest of the Pro Capture range, same 24/7 continuous-operation rating.
Compatible Software
Related Products
New products and Magewell updates
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
Further Reading
Frequently Asked Questions
The Pro Capture HDMI 4K uses a Low-profile PCIe x4 slot. It will also fit in larger PCIe slots (x8, x16) as PCIe is backward compatible, but will run at the card's native lane width.
The Pro Capture HDMI 4K is a capture card. Simultaneous playback (loop-through) depends on the specific model — check the Loop-Through spec in the full specification table. ForeFront Imaging can advise if you need simultaneous I/O.
The Pro Capture HDMI 4K works with any software that supports DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS), including OBS Studio, vMix, Wirecast, Capture One, XSplit and most broadcast NLE software. Magewell's free Capture Express software is also available.
The Pro Capture HDMI 4K accepts 1x HDMI 2.0.
The Pro Capture HDMI 4K captures at up to 3840x2160 @ 30fps.
Yes. Magewell Pro Capture cards are fully supported on Windows 10 and Windows 11. Driver downloads are available free from Magewell's website and from our Software page.
