Single-channel 4K60 HDMI PCIe capture with HDMI loop-through.
Ask us a quick question about this product — signal compatibility, use case fit, or anything technical. We usually reply the same day.

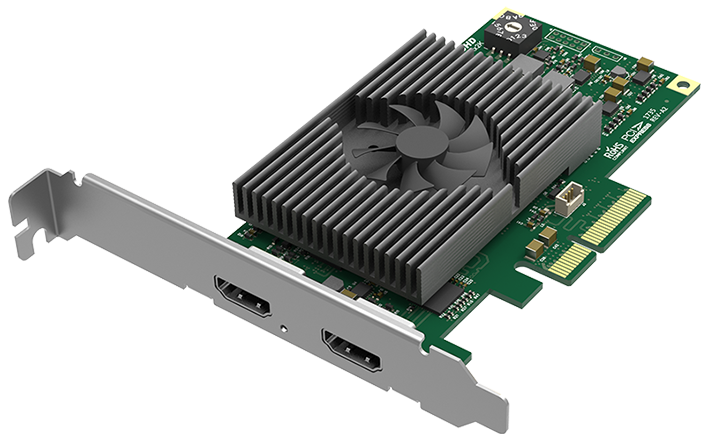

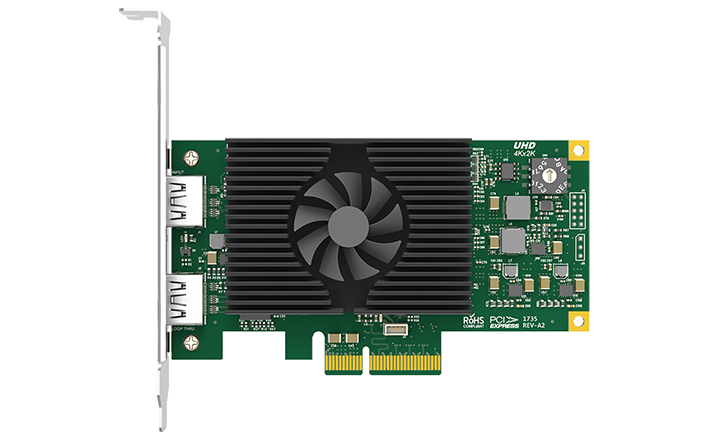

The Pro Capture HDMI 4K Plus LT is the HDMI 4K Plus with an added zero-latency HDMI loop-through output. That single addition opens a new use case: capture the 4K60 signal while a local monitor or downstream HDMI equipment continues to receive the same signal in real time.
For broadcast galleries this matters because the captured signal often needs to remain visible on a confidence monitor or feed into a downstream switcher. For corporate AV in conference rooms, the loop-through means the live camera feed continues to display on the room's main screen while the capture happens for streaming or recording.
Aside from the loop-through, the card is identical to the Pro Capture HDMI 4K Plus — same FPGA pipeline, same form factor, same broadcast-grade colour handling. If you don't need local monitoring of the captured signal, the standard 4K Plus is a more cost-effective choice.
| SKU | 111520000 |
| Brand | Magewell |
| Category | Pro Capture |
| Form Factor | Low-profile PCIe x4 — 167.65mm × 68.88mm |
| Host Interface | PCIe Gen2 x4 |
| Video Input | 1× HDMI type A (HDMI 2.0b) |

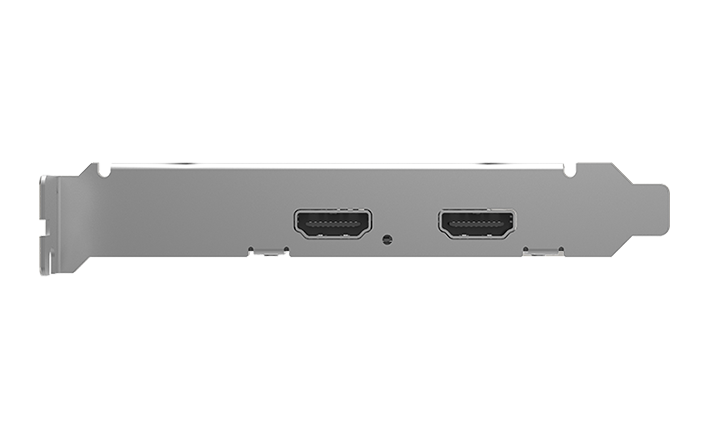

| Loop-through | 1× HDMI type A (loop-through) |
| Max Input Resolution | 4096×2160 (4K 60fps) |
| Signal Features | HDMI 2.0b — HDR10/HLG — Custom EDID — 8/10/12-bit — RGB/YCbCr 4:4:4/4:2:2/4:2:0 — Up to 8-ch audio — InfoFrames — 3D formats |
| Video Capture Formats | 4:2:0 8-bit: NV12, I420, YV12 — 4:2:2 8-bit: YUY2, YUYV, UYVY — 4:4:4 8-bit: V308, IYU2, V408, BGR24, BGR32 — 4:4:4 10-bit: V410, Y410 — Up to 144fps (resolution & bandwidth dependent) |
| Video Processing | Full 10-bit pipeline (~720 Mpixels/s ×2) — Scaling, Cropping, De-interlace — Aspect ratio conversion — Colour space (RGB, YCbCr 601/709/2020) — Frame rate conversion — OSD |
| Audio | HDMI embedded up to 8-channel, 24-bit at 48kHz |
| Multi-Stream | Unlimited simultaneous capture streams per channel — independent crop/colour/resolution/frame rate per stream |
| Latency | Ultra low — 64 video lines |
| DMA Bandwidth | ~400 MB/s (PCIe 2.0) — ~200 MB/s (PCIe 1.0) — Intel tiled GPU, AMD DirectGMA, Nvidia GPUDirect |
| Sync & Timestamp | Hardware 100ns clock — A/V synchronisation — Multi-card sync via SDK |
| Recommended OS | Windows 10/11/Server 2016/2019/2022/2025 (x86 & x64) — Linux x86/x64/ARM kernel 2.6.35+ — macOS 10.9+ / 10.12+ |
| Supported APIs | Windows: DirectShow, DirectKS, WASAPI/Wave/DirectSound — Linux: V4L2, ALSA — macOS: AVCaptureSession, AudioUnit — Magewell Capture SDK |
| Compatible Software | VLC, VirtualDub, OBS, XSplit, vMix, Wirecast, Adobe Flash Media Encoder, Microsoft Media Encoder, any DirectShow/V4L2/AVCaptureSession software |
| Multi-Card / SDK | Magewell Capture SDK — rotary switch 0–F for multi-card systems — safe firmware upgrade without shutdown |
| LED Indicator | Pulsing slowly: no signal — On: signal locked — Double blink: memory/FPGA error — Off: firmware/power fault |
| Power | Max 15W |
| Working Environment | Operating: 0°C to 60°C — Storage: −20°C to 70°C — Humidity: 5–90% non-condensing |
| UK Stock | In Stock |
| Warranty | 2–3 Years (Magewell manufacturer warranty) |
Full specifications: magewell.com/tech-specs/pro-capture-hdmi-4k-plus-lt ↗
Everything included in the box with the Pro Capture HDMI 4K Plus LT. Part numbers and accessory images from official Magewell documentation.


If anything is missing from your delivery, contact us within 7 days and we will arrange a replacement.
Official Magewell documentation for the Pro Capture HDMI 4K Plus LT. Datasheet is mirrored on our server for direct download; drivers, firmware and software live on Magewell's download centre and open in a new tab.
Browse the full Magewell literature library for all product catalogues and datasheets.
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
The Pro Capture HDMI 4K Plus LT uses a Low-profile PCIe x4 slot. It will also fit in larger PCIe slots (x8, x16) as PCIe is backward compatible, but will run at the card's native lane width.
The Pro Capture HDMI 4K Plus LT is a capture card. Simultaneous playback (loop-through) depends on the specific model — check the Loop-Through spec in the full specification table. ForeFront Imaging can advise if you need simultaneous I/O.
The Pro Capture HDMI 4K Plus LT works with any software that supports DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS), including OBS Studio, vMix, Wirecast, Capture One, XSplit and most broadcast NLE software. Magewell's free Capture Express software is also available.
The Pro Capture HDMI 4K Plus LT accepts 1x HDMI 2.0 with loop-through.
The Pro Capture HDMI 4K Plus LT captures at up to 3840x2160 @ 60fps.
Yes. Magewell Pro Capture cards are fully supported on Windows 10 and Windows 11. Driver downloads are available free from Magewell's website and from our Software page.
