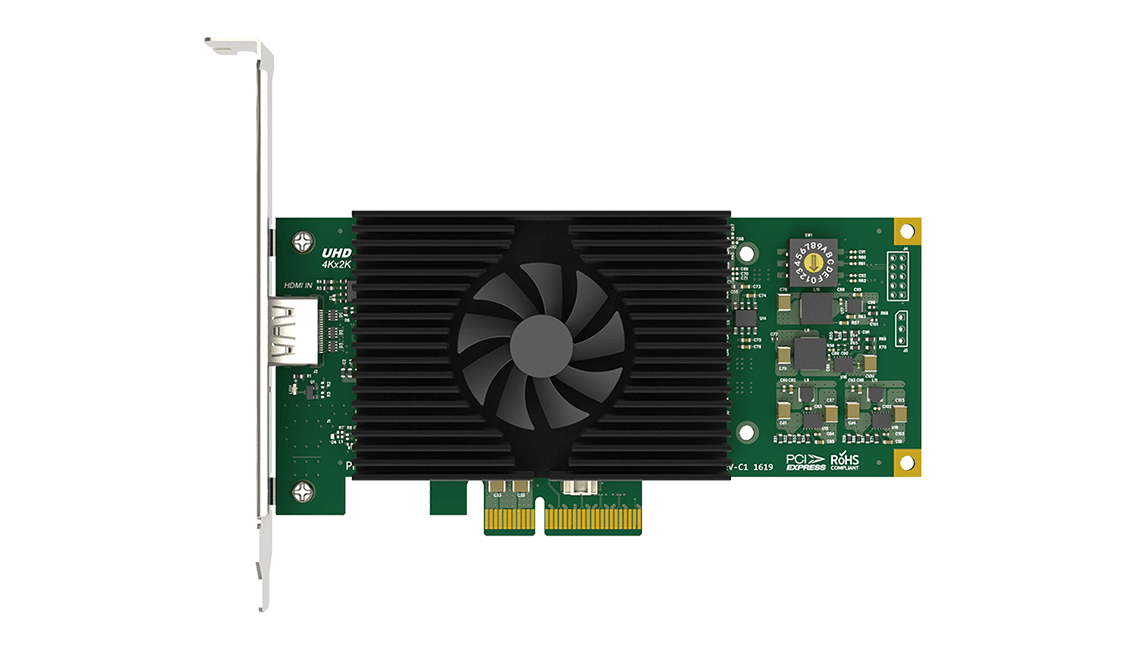

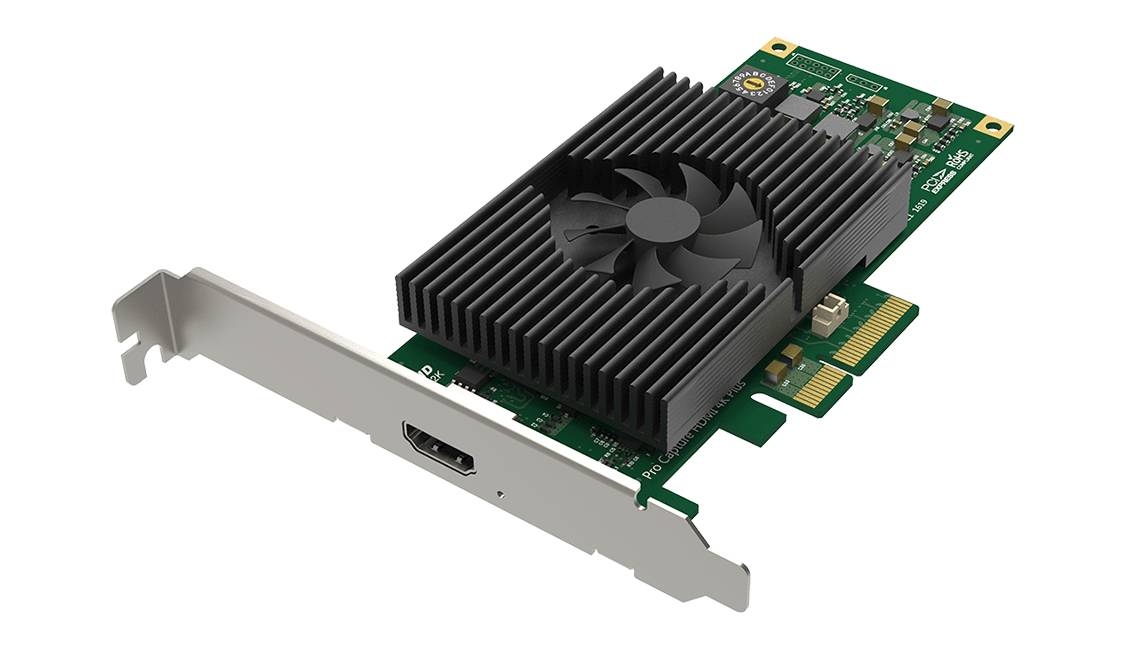

Pro Capture HDMI 4K Plus
Single-channel 4K60 HDMI PCIe capture on a low-profile x4 card.
- ✓HDMI 2.0 input up to 4Kp60
- ✓Low-profile PCIe x4 — 1U server compatible
- ✓FPGA processing — broadcast-grade colour and timing
- ✓24/7 continuous-operation rated
- ✓Custom EDID support
About this product
The Pro Capture HDMI 4K Plus captures a single HDMI 2.0 source at the full 4K60 — the format that modern 4K HDMI cameras and players output natively. Low-profile PCIe x4 form factor means it fits in 1U rack servers, which matters more than it sounds: most permanent broadcast and ingest infrastructure is rack-mounted, and a card that fits in 1U slots into existing workflows without chassis rebuilds.
For premium production workflows — broadcast galleries handling 4K feeds, post-production ingest, and high-end live-streaming setups — this card is the standard recommendation. The 4K60 output of professional HDMI cameras is captured as-is, no frame dropping, no half-resolution compromise.
The same FPGA processing technology as the rest of the Pro Capture range means colour reproduction, gamma handling and frame timing are broadcast-grade rather than consumer-grade. 24/7 continuous-operation rating means it is suitable for permanent installation.
Related Products
New products and Magewell updates
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
Further Reading
Frequently Asked Questions
The Pro Capture HDMI 4K Plus uses a Low-profile PCIe x4 slot. It will also fit in larger PCIe slots (x8, x16) as PCIe is backward compatible, but will run at the card's native lane width.
The Pro Capture HDMI 4K Plus is a capture card. Simultaneous playback (loop-through) depends on the specific model — check the Loop-Through spec in the full specification table. ForeFront Imaging can advise if you need simultaneous I/O.
The Pro Capture HDMI 4K Plus works with any software that supports DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS), including OBS Studio, vMix, Wirecast, Capture One, XSplit and most broadcast NLE software. Magewell's free Capture Express software is also available.
The Pro Capture HDMI 4K Plus accepts 1x HDMI 2.0.
The Pro Capture HDMI 4K Plus captures at up to 3840x2160 @ 60fps.
Yes. Magewell Pro Capture cards are fully supported on Windows 10 and Windows 11. Driver downloads are available free from Magewell's website and from our Software page.
