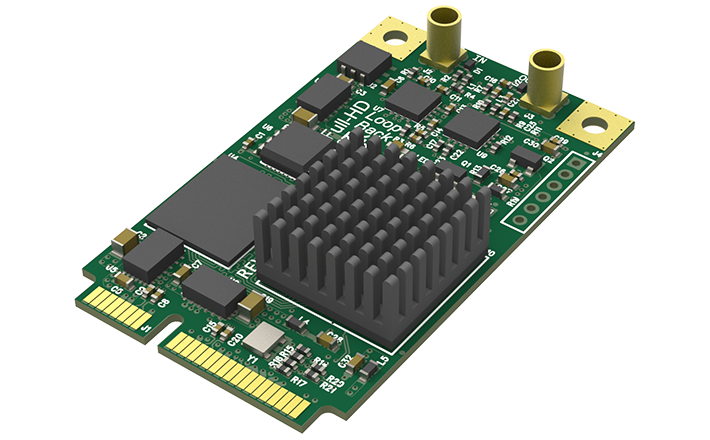

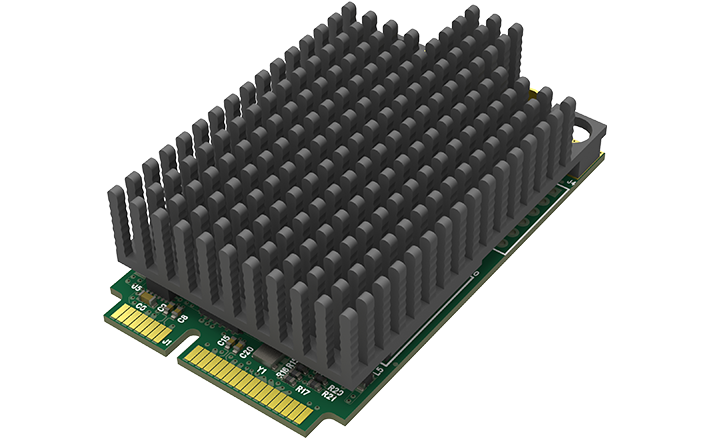

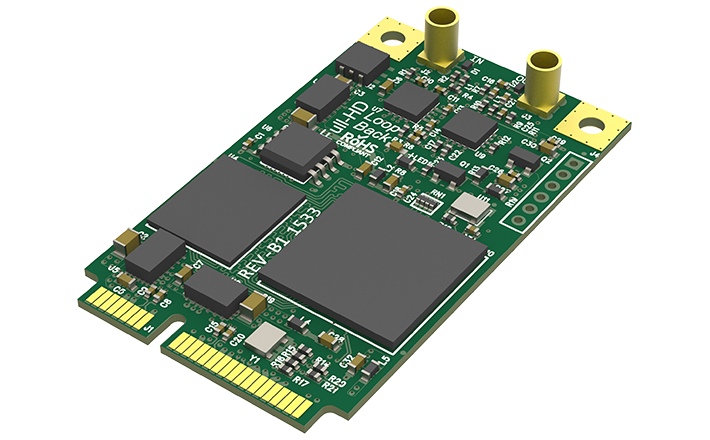

Pro Capture Mini SDI
Single-channel SDI capture with loop-through on a mini PCIe card.
- ✓Mini PCIe form factor
- ✓3G/HD/SD-SDI input with active loop-through
- ✓FPGA processing
- ✓Same software compatibility as full-size Pro Capture SDI
- ✓24/7 rated
About this product
The Pro Capture Mini SDI is the SDI sister to the Mini HDMI — a full broadcast-grade 3G/HD/SD-SDI capture engine with active loop-through on a mini PCIe card. Same broadcast-grade FPGA pipeline as the full-size cards, in the form factor that fits compact industrial computers.
The active loop-through is the standout feature compared to most embedded SDI options — it keeps the downstream SDI chain alive while capture runs, which is essential in broadcast and OB-truck workflows where the captured signal also needs to reach a monitor or downstream equipment.
We see this card most often in compact streaming encoders mounted directly at camera positions on fly-pack production rigs, in OB-truck workstations where chassis space is at a premium, and in scientific or industrial imaging computers that need professional SDI ingest.
Related Products
New products and Magewell updates
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
Further Reading
Frequently Asked Questions
The Pro Capture Mini SDI uses a Mini PCIe slot. It will also fit in larger PCIe slots (x8, x16) as PCIe is backward compatible, but will run at the card's native lane width.
The Pro Capture Mini SDI is a capture card. Simultaneous playback (loop-through) depends on the specific model — check the Loop-Through spec in the full specification table. ForeFront Imaging can advise if you need simultaneous I/O.
The Pro Capture Mini SDI works with any software that supports DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS), including OBS Studio, vMix, Wirecast, Capture One, XSplit and most broadcast NLE software. Magewell's free Capture Express software is also available.
The Pro Capture Mini SDI accepts 1x 3G/HD/SD-SDI with loop-through.
The Pro Capture Mini SDI captures at up to 1920x1080 @ 60fps.
Yes. Magewell Pro Capture cards are fully supported on Windows 10 and Windows 11. Driver downloads are available free from Magewell's website and from our Software page.
