5G connectivity · 4-channel ISO recording · 4 HDMI inputs · Stream to 4 platforms simultaneously · No PC required
In StockNew




Broadcast-grade 4K all-in-one production & presentation system — 5G, ISO recording, no PC required.
Ask us a quick question about this product — signal compatibility, use case fit, or anything technical. We usually reply the same day.
The Magewell Director Plus is the flagship in the Director family — a portable, broadcast-grade all-in-one 4K production and presentation system designed for end-to-end live video workflows. Four HDMI 2.0 inputs (HDMI 1 and 2 support 4Kp60), a 7-inch 800-nit AMOLED touchscreen, built-in 5G with multi-link bonding, and 4-channel simultaneous ISO recording place it firmly in the professional broadcast tier — all in a device you can carry in a bag and run on battery power.
Beyond the four HDMI inputs, Director Plus accepts up to 10 simultaneous network streams — NDI HX2/HX3/High Bandwidth, SRT, RTMP, RTSP and Phone Camera — alongside media files, webpages, documents and third-party apps. The 5G modem with Wi-Fi 6E and 2.5G Ethernet means connectivity is never the limiting factor, whether on a noisy venue floor or a remote outdoor shoot.
Stream to up to four platforms simultaneously — YouTube Live, Twitch, Facebook Live, custom RTMP, SRT or NDI HX3 — while recording four independent ISO channels to the 128 GB internal storage, a microSD card or USB drive, all at the same time. Two HDMI outputs and a USB-C port (UVC or DP) give flexible monitoring options without sacrificing any streaming or recording channel.
Control however suits your workflow: the built-in touchscreen for hands-on production, the Director Utility App on iOS or Android for remote operation, the browser-based Web UI, an Elgato Stream Deck via the Magewell plugin, OSC for third-party systems, or direct API access. The Director Plus also integrates with Magewell Control Hub for centralised management across multiple devices.
| SKU | 552900000 |
| Brand | Magewell |
| Category | Director |
| HDMI Inputs | 4× HDMI 2.0 Type-A — HDMI 1 & 2: up to 4Kp60; all four: up to 1080p120 |
| HDMI Input Formats | 4K 23.98–60fps, 1080p 23.98–120fps, 1080i 25/29.97/30, 720p, 576p/i, 480p/i |
| HDMI Color Depth | 8/10/12-bit |
| HDMI Color Sampling | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 |
| USB AV Inputs | 1× USB 3.0 Type-A, 2× USB 3.0 Type-C — YUYV/MJPG/NV12/H.264/H.265, up to 4Kp60 |
| Network Inputs | Up to 10 simultaneous — NDI HX2/HX3/High Bandwidth, SRT, RTMP, RTSP, Phone Camera |
| Other Sources | Media files (MOV/MP4/WebM/MKV/JPEG/PNG/BMP), webpages (up to 3 scenes + 7 GFX), documents (3), apps (3) |
| Mic/Line Inputs | 2× 3.5mm jack, 2-channel, 48kHz, 16-bit |
| HDMI Audio In | Up to 8-channel, 192kHz, 24-bit |
| USB Audio In | Up to 8-channel, 192kHz, 24-bit |
| Bluetooth Audio | 2-channel, 48kHz, 16-bit (BT 5.3) |
| HDMI Outputs | 2× HDMI 2.0 Type-A — 4K/1440p/1080p/720p up to 60fps, RGB 4:4:4 / NV12 |
| HDMI Out Sources | Program, Preview, Multi-view, Mirror, Loop HDMI 1–4, Loop Webcam, Loop Stream, App |
| USB-C Output | 1× USB 3.0 Type-C — UVC 1.1/UAC 1.0 or DP-OUT mode, up to 4Kp60 |
| Headphone | 3.5mm jack, monitor output, 2-ch 48kHz 16-bit |
| Show Resolution | 4K, 1440p, 1080p (landscape 16:9 or portrait 9:16) |
| Frame Rates | 60/59.94/50/30/29.97/25/24/23.98 fps |
| Encoding | H.264 (High/Main/Baseline) / H.265 (Main), VBR & CBR |
| Max Bitrate | Up to 120 Mbps (NDI HX3: up to 110 Mbps) |
| NDI Support | NDI HX2, NDI HX3, NDI High Bandwidth — input and output |
| Streaming Platforms | Up to 4 simultaneously — YouTube, Twitch, Facebook, Restream, RTMP, SRT, RTMPS, RTSP, NDI HX3 |
| ISO Recording | 4-channel simultaneous — Program, HDMI 1–4, Webcam 1&2, Multi-view, Stream, Phone Camera |
| Recording Formats | MP4 / MOV, up to 4 hrs or 16 GB per file |
| Internal Storage | 128 GB |
| External Storage | microSD (FAT32 <128 GB, NTFS, exFAT), USB SSD/flash drive |
| Screen | 7" AMOLED, 1920×1080, 315 PPI, 10-bit, capacitive touch |
| Brightness | 800 nit |
| Contrast | 100,000:1 |
| Color Gamut | 100% NTSC / sRGB 145% / DCI-P3 105% |
| Refresh Rate | 60 Hz / 50 Hz |
| Ethernet | 1× RJ45, 10/100/1000/2500 Mbps Base-T (2.5G) |
| Wi-Fi | Wi-Fi 6E (2.4 GHz / 5 GHz / 6 GHz) — station & hotspot modes |
| Cellular | 1× 5G SIM slot + USB modem support (SIM not supplied) |
| Bluetooth | BT 5.3 — audio in/out, keyboard, phone camera |
| USB Tethering | Share mobile data via USB-connected phone |
| Network Bonding | Multi-link bonding across 5G, Wi-Fi and Ethernet |
| AC Power | 12V / 5A DC adapter (included) |
| Battery | 2× NP-F 7.4V battery packs (not supplied) — hot-swappable |
| Power Consumption | No-load ≈14W / Full-load ≈29W |
| Battery LEDs | 4 LEDs per battery — configurable as charge indicators or NDI tally lights |
| Dimensions | 185.2 × 117.2 × 32.8 mm / 7.29 × 4.61 × 1.29 in |
| Weight | ≈882 g (without antennas) |
| Operating Temp | −10 to 50 °C (AC power) |
| Control Options | Built-in touchscreen, Director Utility App (iOS 13+ / Android 7.0+), Web UI, Stream Deck plugin, OSC, REST API |
| Third-Party Apps | Up to 3 apps (web browsers, social media, documents, etc.) |
| Control Hub | Compatible with Magewell Control Hub v2.1.127+ |
| OS Required | None (fully standalone) |
| Warranty | 2 years (device) / 1 year (screen) — Magewell manufacturer |
| UK Stock | In Stock |

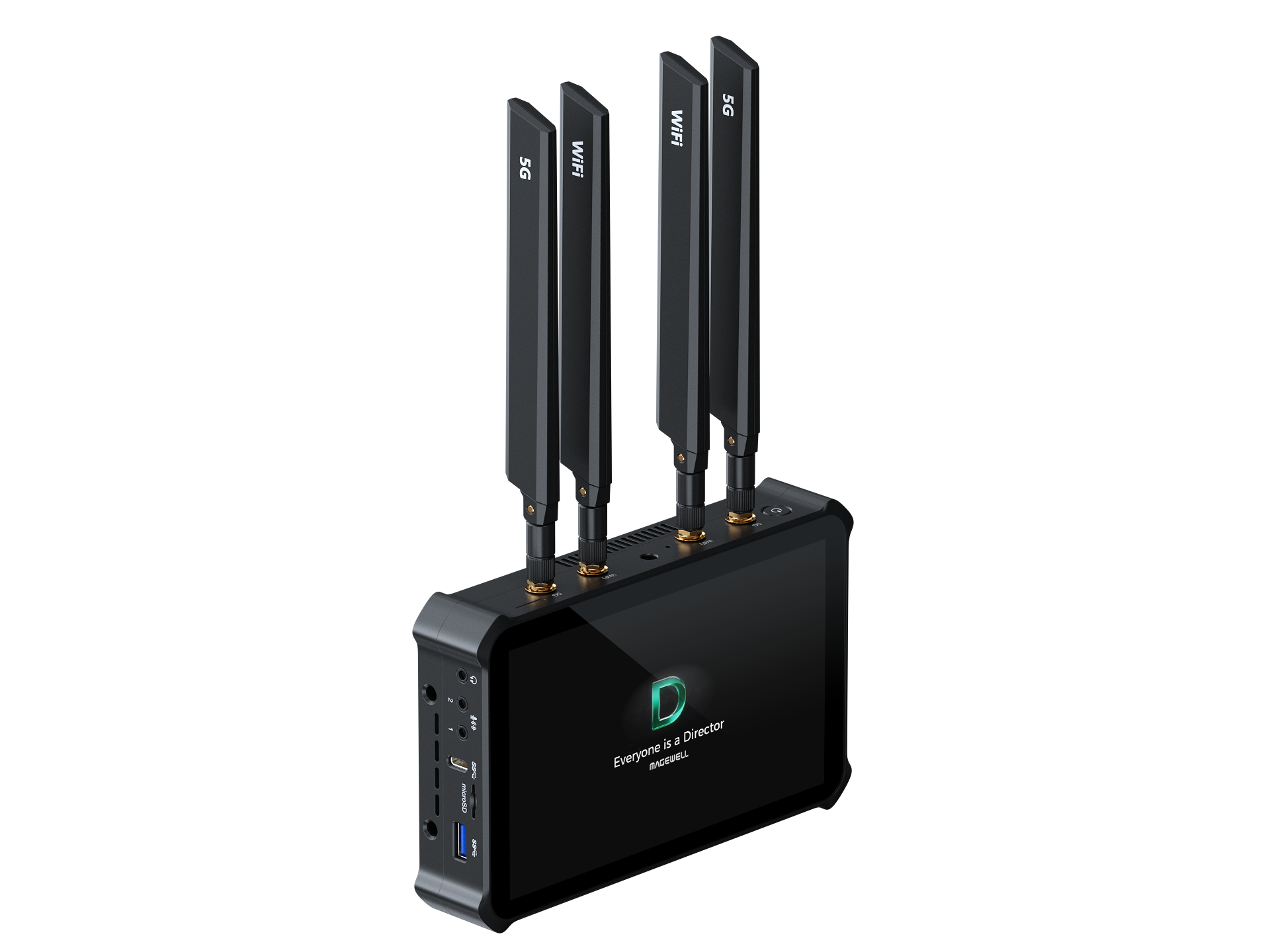

Everything included in the box with the Director Plus. Accessory images from official Magewell documentation. Note: NP-F battery packs are not included — sold separately.










All documentation for the Director Plus is hosted directly on our server for fast download. Firmware updates and the Director Utility App are on Magewell's download centre.
The Director Plus is Magewell's flagship all-in-one 4K portable production and presentation system. It combines a 4-source HDMI switcher (with 4Kp60 on inputs 1 and 2), built-in 5G, simultaneous streaming to four platforms, and 4-channel ISO recording — all without requiring a computer.
The Director Plus adds 4K production (up to 4Kp60), built-in 5G with multi-link bonding, Wi-Fi 6E, 2.5G Ethernet, 128 GB internal storage, 4-channel ISO recording, up to 10 simultaneous network stream inputs, a second HDMI output, third-party app support, and hot-swappable NP-F battery power. The Director One is a capable 1080p device; the Director Plus is the professional broadcast-grade step up.
No. It operates entirely standalone. Control it via its 7-inch AMOLED touchscreen, the Director Utility App (iOS and Android), the browser-based Web UI, an Elgato Stream Deck with the Magewell plugin, OSC protocol for third-party systems, or the REST API for custom integrations.
Four HDMI 2.0 inputs (HDMI 1 and 2 support 4Kp60; all four support 1080p120), two USB webcam inputs (up to 4Kp60), and up to 10 simultaneous network streams — NDI HX2, NDI HX3, NDI High Bandwidth, SRT, RTMP, RTSP, and Phone Camera. It also accepts media files, webpages, documents, and up to three third-party apps as live sources.
Yes. Director Plus streams to up to four platforms simultaneously (YouTube, Twitch, Facebook, RTMP, SRT, NDI HX3) while recording up to four independent ISO channels to 128 GB internal storage, a microSD card, or USB SSD — all at the same time.
Yes. It accepts two hot-swappable NP-F battery packs (not supplied, available separately). Hot-swap means you can replace a depleted battery without interrupting a live stream. The included 12V/5A DC adapter is the primary power source.
Built-in 5G modem with multi-link network bonding, Wi-Fi 6E (2.4/5/6 GHz, hotspot support), 2.5G Ethernet, and Bluetooth. The 5G antenna set is included. A SIM card is not supplied.
