Dual 3G-SDI capture channels on an M.2 card.
Ask us a quick question about this product — signal compatibility, use case fit, or anything technical. We usually reply the same day.

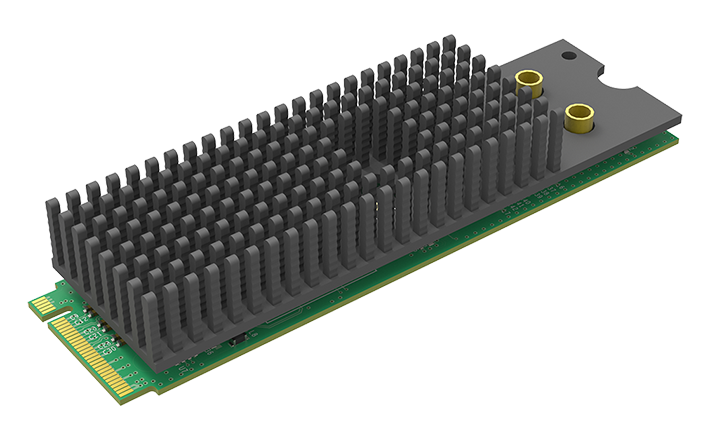

The Eco Capture Dual SDI M.2 provides two independent 3G-SDI capture channels in an M.2 2280 footprint, with full backward compatibility for HD-SDI and SD-SDI feeds. It is the SDI counterpart to the Dual HDMI M.2 and aimed at broadcast and live-production integrators who need SDI ingest in a small chassis.
Typical deployments include compact streaming encoders mounted at the camera position, OB-truck workstations where chassis space is at a premium, and embedded recorders in fly-pack production kits. Because each channel has its own FPGA path, mixed-resolution capture is supported — one camera at 1080p59.94 and another at 1080i50 can be ingested simultaneously without negotiation.
The card uses MCC breakout cables to bring the SDI BNC connectors out of the chassis. We can advise on bracket and cable options when you order — some integrators prefer panel-mount BNCs, others prefer pigtail cables.
| SKU | 115300000 |
| Brand | Magewell |
| Category | Eco Capture |
| Form Factor | M.2 2280 (22mm × 80mm) — M-Key PCIe Gen2 x1 |
| Host Interface | M.2 M-Key — PCIe Gen2 x1 |

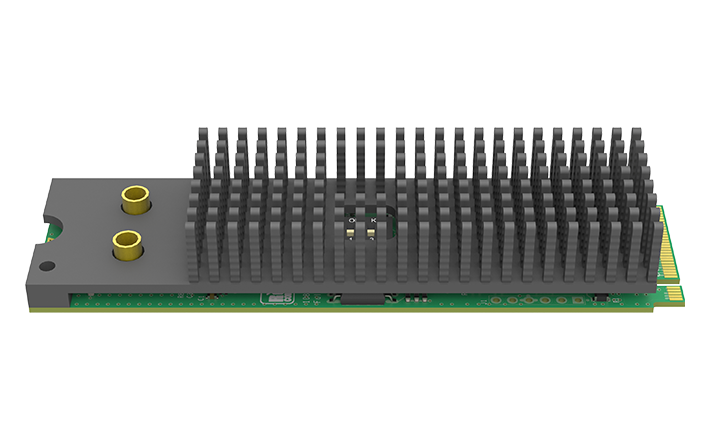

| Video Input | 2× MMCX (SD/HD/3G-SDI) |
| Loop-through | None |
| Max Input Signal | 2048×1080 60fps per channel |
| Max Capture Resolution | Up to 2048×2160 — 144fps max per channel |
| Signal Features | SD/HD/3G-SDI — Cable equalizer: SD up to 330m, HD 190m, 3G 150m — SD/HD/3Ga/3Gb — RGB/YCbCr 4:4:4/4:2:2, 10/12-bit — Up to 8-ch audio at 48kHz per channel — SMPTE 352 |
| Video Capture Formats | 4:2:0 8-bit: NV12, I420, YV12 — 4:2:2 8-bit: YUY2, YUYV, UYVY — 4:4:4 8-bit: V308, IYU2, V408, BGR24, BGR32 — 4:4:4 10-bit: V410, Y410 — Up to 144fps (PCIe bandwidth & resolution dependent) |
| Video Processing | ~160 Mpixels/s pipeline — Custom EDID — Scaling (up/down), de-interlace, colour space conversion, frame rate conversion per channel |
| Audio | SDI embedded up to 8-ch, 24-bit at 48kHz per channel |

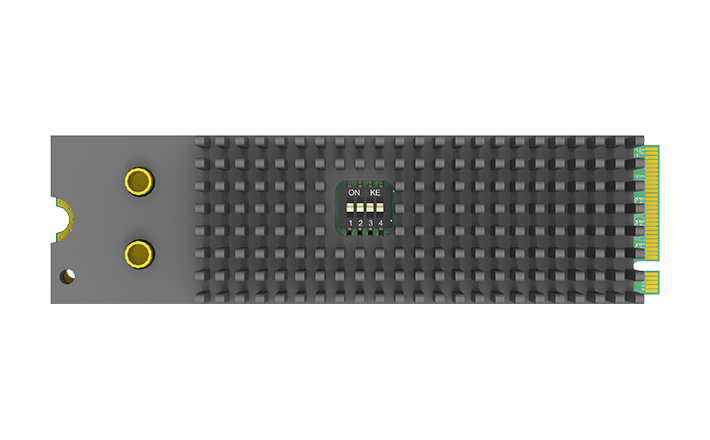

| Multi-Card / SDK | Unlimited capture streams per channel (same format) — DIP switch 0–F for multi-card systems — Safe firmware upgrade without shutdown |
| Recommended OS | Windows 10/11/Server 2016/2019/2022/2025 (x86 & x64) — Linux x86/x64/ARM kernel 2.6.35+ — macOS 10.9+ / 10.12+ |
| Supported APIs | Windows: DirectShow, DirectKS, WASAPI/Wave/DirectSound — Linux: V4L2, ALSA — Magewell Capture SDK (MWCapture) |
| Compatible Software | VLC, OBS, vMix, Wirecast, XSplit, any DirectShow/V4L2 software — Magewell USB Capture Utility |
| Power | PCIe slot power — Max 3W |
| Dimensions | 22mm × 80mm (M.2 2280) — M-Key connector |
| Working Environment | Operating: 0°C to 60°C — Storage: −20°C to 70°C — Humidity: 5–90% non-condensing |
| UK Stock | In Stock |
| Warranty | 2–3 Years (Magewell manufacturer warranty) |
Full specifications: magewell.com/tech-specs/eco-capture-dual-sdi-m2 ↗
Everything included in the box with the Eco Capture Dual SDI M.2. Part numbers and accessory images from official Magewell documentation.



If anything is missing from your delivery, contact us within 7 days and we will arrange a replacement.
Official Magewell documentation for the Eco Capture Dual SDI M.2. Datasheet is mirrored on our server for direct download; drivers, firmware and software live on Magewell's download centre and open in a new tab.
Browse the full Magewell literature library for all product catalogues and datasheets.
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
The Eco Capture Dual SDI M.2 uses an M.2 slot. Check your motherboard manual for available M.2 slots — Eco Capture M.2 cards use the PCIe lanes on the M.2 connector, not SATA, so the slot must support M.2 PCIe.
Yes. Download the Magewell Eco Capture driver from Magewell's website (free). It supports Windows 10/11 and recent Linux kernels. macOS is not currently supported for Eco Capture M.2 cards.
The Eco Capture Dual SDI M.2 accepts 2x 3G/HD/SD-SDI.
Yes, multiple Eco Capture M.2 cards can be installed in the same system provided there are available M.2 PCIe slots. Each card is independently addressable.
The Eco Capture Dual SDI M.2 works with DirectShow (Windows) and V4L2 (Linux) compatible software, including OBS Studio, vMix, Wirecast and Magewell Capture Express.
