In Stock


Four-channel 3G-SDI capture on an M.2 card — high-density in compact form.
Ask us a quick question about this product — signal compatibility, use case fit, or anything technical. We usually reply the same day.

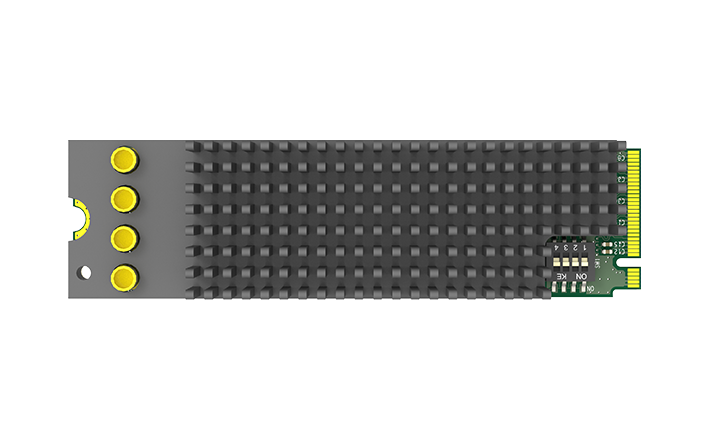

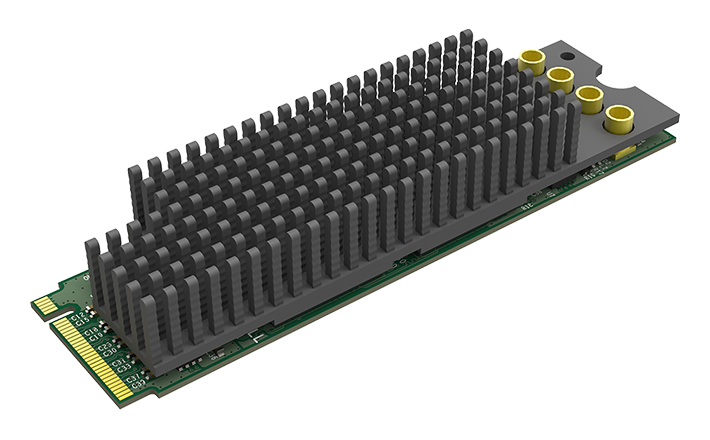

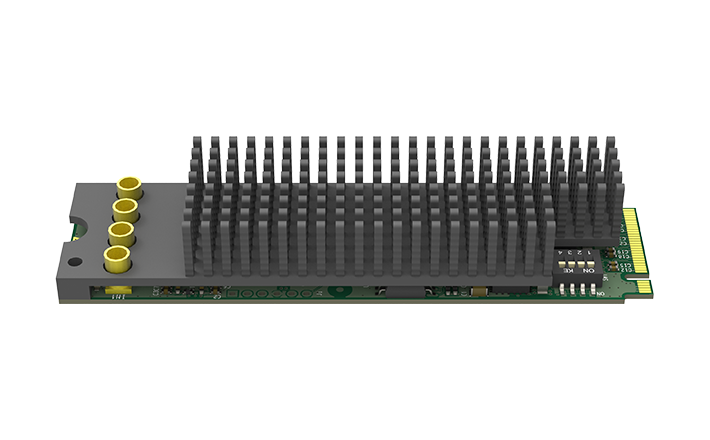

The Eco Capture Quad SDI M.2 fits four independent 3G-SDI capture channels onto a single M.2 2280 module. For density per slot it is unmatched — a single M.2 slot delivers four full broadcast SDI ingests, each with its own FPGA processing path.
This is the card to specify when you need a four-camera live production capability in a chassis too small for a full-size capture card. We see it in fly-pack production systems for sports, school esports facilities running multi-camera streams, and PTZ-camera installations in venues where the production PC is hidden in an AV rack with no PCIe expansion.
Each of the four channels supports the full 3G/HD/SD-SDI range and runs independently, so cameras at different formats can be mixed in the same production without compromise.
| SKU | 115400000 |
| Brand | Magewell |
| Category | Eco Capture |
| Form Factor | M.2 2280 (22mm × 80mm) — M-Key PCIe Gen2 x1 |
| Host Interface | M.2 M-Key — PCIe Gen2 x1 |
| Video Input | 4× MMCX (SD/HD/3G-SDI) |
| Loop-through | None |
| Max Input Signal | 2048×1080 60fps per channel |
| Max Capture Resolution | Up to 2048×2160 — 144fps max per channel |
| Signal Features | SD/HD/3G-SDI — Cable equalizer: SD up to 330m, HD 190m, 3G 150m — SD/HD/3Ga/3Gb — RGB/YCbCr 4:4:4/4:2:2, 10/12-bit — Up to 8-ch audio at 48kHz per channel — SMPTE 352 |
| Video Capture Formats | 4:2:0 8-bit: NV12, I420, YV12 — 4:2:2 8-bit: YUY2, YUYV, UYVY — 4:4:4 8-bit: V308, IYU2, V408, BGR24, BGR32 — 4:4:4 10-bit: V410, Y410 — Up to 144fps (PCIe bandwidth & resolution dependent) |
| Video Processing | ~160 Mpixels/s pipeline — Custom EDID — Scaling (up/down), de-interlace, colour space conversion, frame rate conversion per channel |
| Audio | SDI embedded up to 8-ch, 24-bit at 48kHz per channel |
| Multi-Card / SDK | Unlimited capture streams per channel (same format) — DIP switch 0–F for multi-card systems — Safe firmware upgrade without shutdown |
| Recommended OS | Windows 10/11/Server 2016/2019/2022/2025 (x86 & x64) — Linux x86/x64/ARM kernel 2.6.35+ — macOS 10.9+ / 10.12+ |
| Supported APIs | Windows: DirectShow, DirectKS, WASAPI/Wave/DirectSound — Linux: V4L2, ALSA — Magewell Capture SDK (MWCapture) |
| Compatible Software | VLC, OBS, vMix, Wirecast, XSplit, any DirectShow/V4L2 software — Magewell USB Capture Utility |
| Power | PCIe slot power — Max 5W |
| Dimensions | 22mm × 80mm (M.2 2280) — M-Key connector |
| Working Environment | Operating: 0°C to 60°C — Storage: −20°C to 70°C — Humidity: 5–90% non-condensing |
| UK Stock | In Stock |
| Warranty | 2–3 Years (Magewell manufacturer warranty) |
Full specifications: magewell.com/tech-specs/eco-capture-quad-sdi-m2 ↗
Everything included in the box with the Eco Capture Quad SDI M.2. Part numbers and accessory images from official Magewell documentation.



If anything is missing from your delivery, contact us within 7 days and we will arrange a replacement.
Official Magewell documentation for the Eco Capture Quad SDI M.2. Datasheet is mirrored on our server for direct download; drivers, firmware and software live on Magewell's download centre and open in a new tab.
Browse the full Magewell literature library for all product catalogues and datasheets.
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
The Eco Capture Quad SDI M.2 uses an M.2 slot. Check your motherboard manual for available M.2 slots — Eco Capture M.2 cards use the PCIe lanes on the M.2 connector, not SATA, so the slot must support M.2 PCIe.
Yes. Download the Magewell Eco Capture driver from Magewell's website (free). It supports Windows 10/11 and recent Linux kernels. macOS is not currently supported for Eco Capture M.2 cards.
The Eco Capture Quad SDI M.2 accepts 4x 3G/HD/SD-SDI.
Yes, multiple Eco Capture M.2 cards can be installed in the same system provided there are available M.2 PCIe slots. Each card is independently addressable.
The Eco Capture Quad SDI M.2 works with DirectShow (Windows) and V4L2 (Linux) compatible software, including OBS Studio, vMix, Wirecast and Magewell Capture Express.
