In Stock


Bring any HDMI source into your NDI network — standalone, PoE powered.
Ask us a quick question about this product — signal compatibility, use case fit, or anything technical. We usually reply the same day.

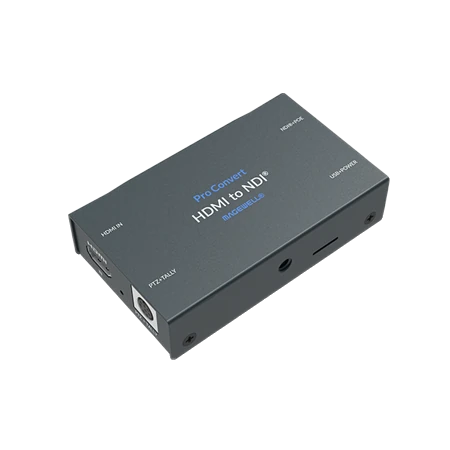

The Pro Convert HDMI TX is the standard NDI encoder for HDMI sources up to 1080p60. Plug an HDMI cable in one side, an Ethernet cable in the other, and the source appears on the NDI network — any NDI-capable system on the same network sees it automatically.
For broadcast and live-production workflows migrating from SDI to IP, the HDMI TX is the bridge for HDMI-only sources like consumer cameras, computer outputs, and presenter laptops. The whole device runs from PoE (Power over Ethernet), so a single cable carries both power and the encoded stream from the camera position to the production gallery.
Common deployments include houses of worship with multiple HDMI camera positions feeding an NDI-based vMix or TriCaster gallery, school esports facilities, and corporate AV systems distributing presenter sources around campus networks. Configured via web UI or Magewell Control Hub.
| SKU | 640500000 |
| Brand | Magewell |
| Category | Pro Convert Encoders |

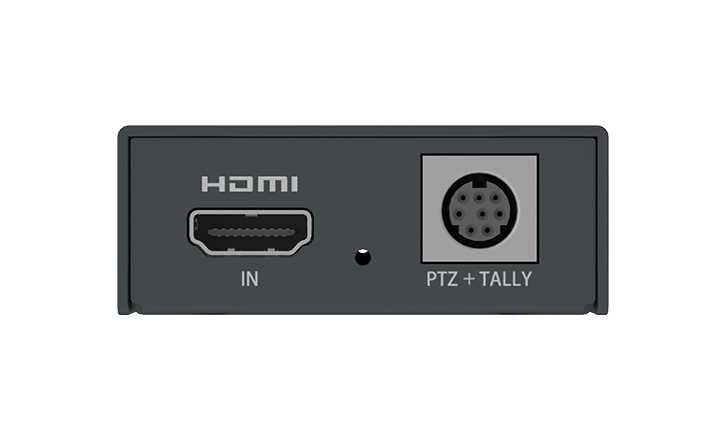

| Video Input | 1× HDMI type A (HDMI 1.4/DVI-D) — max: 2048×1200 60fps 4:4:4/4:2:2 |
| Loop-through | None |
| Audio Input | HDMI embedded (up to 8-ch) — 3.5mm analogue line in |
| Network Output | IP network stream (Gigabit Ethernet) |
| Encoding | H.264 / H.265 / SpeedHQ — AAC — up to 1080p60 encode |
| Streaming Protocols | NDI® High Bandwidth, NDI HX, NDI HX2, NDI HX3 — SRT Caller/Listener — RTMP/RTMPS — RTSP — HLS — TS over UDP/RTP/RIST — HTTP — MPEG-TS |
| Video Processing | De-interlacing — Up/down scaling — Frame rate conversion — Aspect ratio conversion — Colour space conversion (BT.601/709/2020) — PTZ camera control (VISCA/PELCO via NDI) |
| Network & Power | 1× RJ45 Gigabit Ethernet — PoE+ (IEEE 802.3at) powered — Optional USB-C 12V DC |
| Management | Web UI — Magewell Control Hub — REST API — PTZ control (VISCA, PELCO-D/P via NDI) |
| Power | PoE+ (IEEE 802.3at) — Max 12.95W |
| Dimensions | 85mm × 75mm × 26mm — 110g |
| Working Environment | Operating: 0°C to 40°C — Humidity: 20–90% non-condensing |
| UK Stock | In Stock |
| Warranty | 2–3 Years (Magewell manufacturer warranty) |
Full specifications: magewell.com/tech-specs/pro-convert-hdmi-tx ↗
Everything included in the box with the Pro Convert HDMI TX. Part numbers and accessory images from official Magewell documentation.




If anything is missing from your delivery, contact us within 7 days and we will arrange a replacement.
Official Magewell documentation for the Pro Convert HDMI TX. Datasheet is mirrored on our server for direct download; drivers, firmware and software live on Magewell's download centre and open in a new tab.
Browse the full Magewell literature library for all product catalogues and datasheets.
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
No. The Pro Convert HDMI TX is a standalone converter. It connects to your network and is managed via Web UI / REST API / Control Hub. Once configured it operates independently with no host PC required.
The Pro Convert HDMI TX converts its video input to NDI, RTMP, RTSP, SRT.
The Pro Convert HDMI TX accepts 1x HDMI (up to 1080p60).
Yes. The Pro Convert HDMI TX's network output is compatible with any software that supports its output protocol — including NDI-compatible software such as vMix, OBS (with NDI plugin), Resolume and NewTek products.
Connect your video source and plug the Pro Convert HDMI TX into your network. Access the web interface via its IP address to configure the output stream. Magewell's Device Manager software can also auto-discover devices on your network.
