In Stock



Up to 4x NDI streams to a QHD multiview HDMI output.
Ask us a quick question about this product — signal compatibility, use case fit, or anything technical. We usually reply the same day.
The Magewell Pro Convert IP to AIO 4K is a compact standalone decoder that converts up to four simultaneous IP streams into a single 4Kp60 HDMI output and a 4Kp60 12G-SDI output. It bridges IP-based media networks with traditional baseband equipment, supporting NDI High Bandwidth, NDI HX/HX2/HX3, SRT, MPEG-TS over RTP/UDP/RIST, RTMP, RTSP, HLS, HTTP and ZIXI.
Three output modes cover every monitoring and distribution need. Single View decodes one stream at up to 4K60 with H.264, H.265, SpeedHQ and MPEG2. Picture-in-Picture decodes two streams at up to 1080p60. Quad View shows four streams simultaneously at up to 1080p60 using H.264 or H.265. HDR PQ and HLG are supported on both HDMI and SDI outputs.
Powered by PoE+ (IEEE 802.3at) over the network cable — no separate PSU needed on a PoE+ switch. The browser-based Web UI gives real-time output preview, PTZ control and full configuration. Integrates with Magewell Control Hub and Zixi ZEN Master for centralised management.
| SKU | 644000000 |
| Brand | Magewell |
| Category | Pro Convert Decoders |
| Single View | 1 channel — NDI HB/HX/HX2/HX3, SRT, MPEG-TS/RTP/UDP/RIST, RTMP, RTSP, HLS, HTTP, ZIXI — H.264, H.265, SpeedHQ, MPEG2 — up to 4096×2160p60 |
| Picture-in-Picture | 2 channels — same protocols — H.264, H.265, SpeedHQ, MPEG2 — up to 1920×1080p60 |
| Quad View | 4 channels — NDI HX/HX2/HX3, SRT, MPEG-TS, RTMP, RTSP, HLS, HTTP, ZIXI — H.264, H.265 — up to 1920×1080p60 |
| Audio Decode | AAC, MP3, AC3, Opus, G.711 — NDI 6.3 support |
| HDMI Output | 4096×2160 60fps — 4:4:4 8-bit or 4:2:2 12-bit — HDMI 2.0 — 48/96kHz 8-ch audio — HDR PQ/HLG |
| HDMI Formats | 4K/3840p 23.98–60fps — 1080p — 1080i — 720p — 576i — 480i |
| SDI Output | 4096×2160 60fps — 4:2:2 10-bit — SD/HD/3G/6G/12G-SDI — 48kHz 8-ch audio — HDR PQ/HLG via ANC — CEA-608/708 CC |
| SDI Distances | 12G-SDI up to 55m — 6G-SDI up to 75m — 3G-SDI up to 130m |
| Network | 10/100/1000 Mbps Ethernet — PoE+ (IEEE 802.3at) |
| USB | 1× USB 3.0 Type-C (12V 20W power, USB NET) — 1× USB 3.0 Type-A (keyboard/mouse) |
| Audio Out | 3.5mm LINE OUT |
| Management | Web UI — HTTP API — Magewell Control Hub — Zixi ZEN Master |

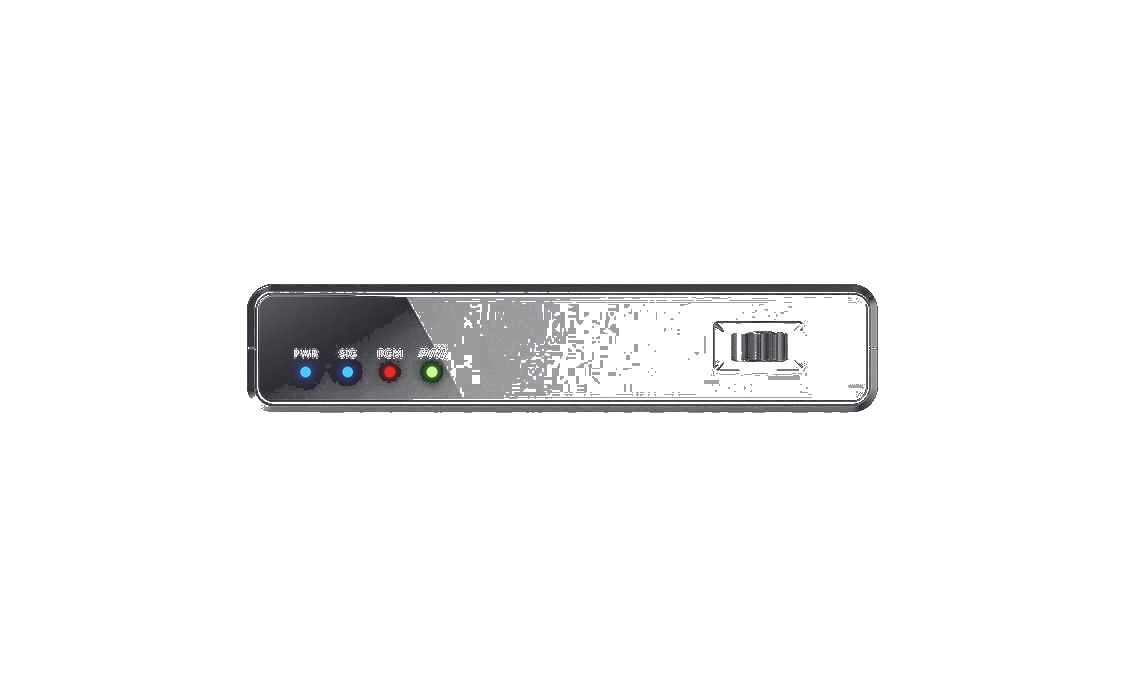

| LED Indicators | PWR (power) — SIG (decode status: blue/red/green) — Tally (NDI PGM red / PVW green) |
| Dimensions | 120 × 79.3 × 24.5 mm / 4.72 × 3.12 × 0.96 in |
| Power | ~15.1W max / ~1.26A at 12V — PoE+ or USB-C 12V 20W |
| Operating Temp | 0 to 40 °C |
| UK Stock | In Stock |
Everything included in the box with the Pro Convert IP to AIO 4K. Part numbers and accessory images from official Magewell documentation.








Official Magewell documentation for the Pro Convert IP to AIO 4K. Firmware on Magewell's download server.
A compact standalone decoder that converts up to four IP streams into one 4Kp60 HDMI and one 4Kp60 12G-SDI output simultaneously, with Multiview layouts for monitoring multiple sources on a single display.
It adds a 12G-SDI output alongside HDMI, supports 4Kp60 output (vs 1080p), and can decode up to four simultaneous streams in Quad View. It is the broadcast-grade variant designed for production environments needing both HDMI and SDI.
Up to four in Quad View (1080p60), two in PiP mode (1080p60), or one in Single View at up to 4K60.
No. It is PoE+ powered (IEEE 802.3at) over the Ethernet cable. A USB-C 12V 20W power option is also available using the included power adapter.
NDI High Bandwidth, NDI HX/HX2/HX3 (NDI 6.3), SRT, MPEG-TS over RTP/UDP/RIST, RTMP, RTSP, HLS, HTTP and ZIXI. Audio: AAC, MP3, AC3, Opus, G.711.
Via the browser-based Web UI from any device on the same network. It also integrates with Magewell Control Hub and Zixi ZEN Master. An HTTP API is available for custom integrations.
