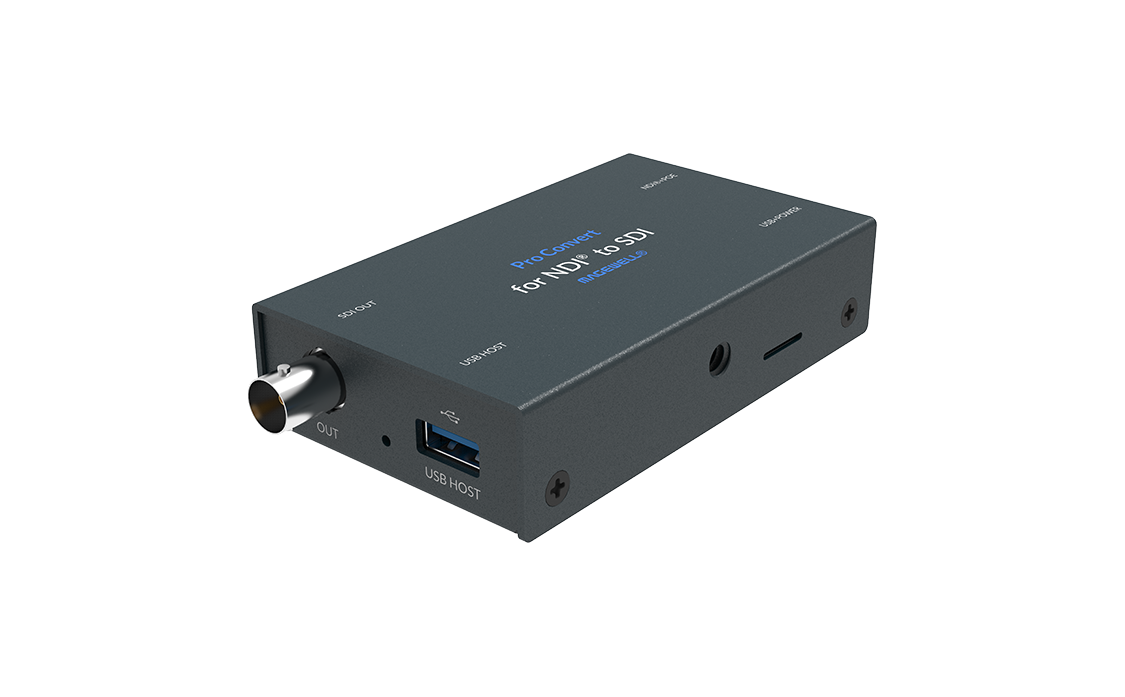

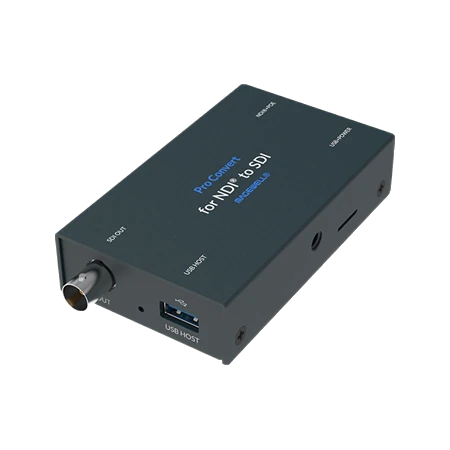

Pro Convert for NDI to SDI

Name: Magewell Pro Convert for NDI to SDI
Brand: Magewell
SKU: 641500000
Availability: InStock

🎯

Free Pre-Sales Technical Consultation

Not sure if this is right for your workflow? Email us or call +44 (0)116 277 5730 — we'll specify the right solution at no charge.

SKU: 641500000

Decode NDI/SRT streams to 3G-SDI output — bridge IP video to SDI broadcast infrastructure.

✓Receives NDI, NDI|HX, SRT, RTMP streams

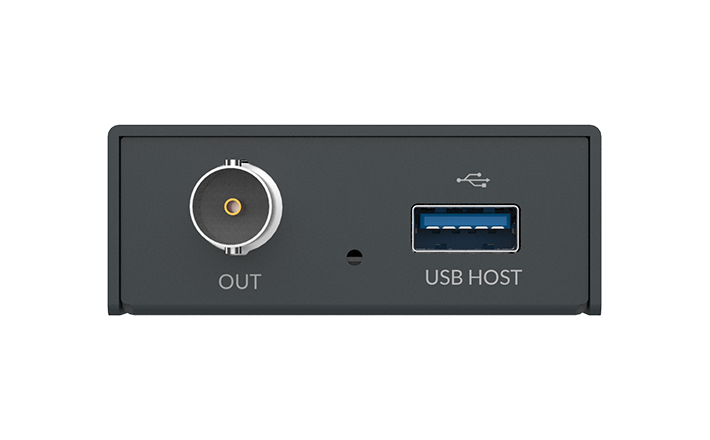

✓Outputs to 3G-SDI (backward compatible HD/SD)

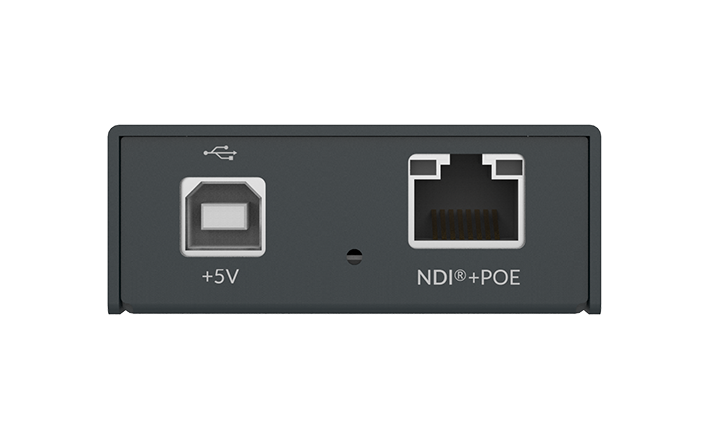

✓Standalone — PoE powered or DC
✓Web UI / Control Hub managed
✓2-3 year warranty (model dependent)

NDI/SRTSDI out1080pPoE

Request a Quote

💡

About your shortlist

Click Add to Shortlist on any products you'd like further information or details about. When you've finished browsing, head to our Contact form — your shortlist is automatically attached to the message so we can get back to you with whatever you need.

Not sure which products fit? Try the Compare Models Find My Product tool, or just send us a note and we'll guide you.

About this product

The Pro Convert for NDI to SDI is the most common bridge in the other direction — taking IP-based NDI or SRT streams and bringing them back out as standard 3G/HD/SD-SDI for traditional broadcast infrastructure. Production switchers, SDI multiviewers, master control routers and broadcast monitoring chains all stay on SDI; this decoder feeds them from the IP side.

In broadcast IP migrations this is typically the decoder specified in the largest quantities. A facility may have a hundred SDI input ports on a router but only a handful of NDI-native devices — the Pro Convert for NDI to SDI sits at the boundary and converts the NDI feeds into something the existing SDI infrastructure understands.

PoE-powered, standalone, web-managed. Backward compatible with HD-SDI and SD-SDI outputs as well as 3G.

Ideal For

IP to SDI

Feed NDI or SRT streams into SDI-based broadcast monitoring and routing infrastructure.

Broadcast Migration

NDI-to-SDI bridge for facilities running mixed IP and SDI workflows.

Master Control

Bring IP feeds into traditional SDI master-control router inputs.

Broadcast Galleries

Also suitable: Permanent installation in production galleries for ingest, monitoring or routing.

Corporate AV

Also suitable: Permanent AV-over-IP installations in meeting rooms, board rooms and executive briefing centres.

Houses of Worship

Also suitable: Stream and record services to YouTube, Facebook or website for remote and overflow congregations.

Compatible Software

vMix ↗NDI Tools ↗Magewell Control Hub

Frequently Asked Questions

The Pro Convert for NDI to SDI receives network video (NDI, NDI|HX, SRT, RTMP) and outputs it as 1x BNC (3G/HD/SD-SDI), allowing you to display IP video on any standard 1x BNC (3G/HD/SD-SDI) display or feed it into SDI-based equipment.

No. The Pro Convert for NDI to SDI is managed via Web UI from any browser. No software installation is needed on the display or destination device.

The Pro Convert for NDI to SDI is designed to receive and decode a single stream at a time, outputting it to 1x BNC (3G/HD/SD-SDI). Contact us if you need multi-stream decoding or multiviewer capability.

Yes — the Pro Convert for NDI to SDI is fully compatible with NDI sources, including those from NewTek, vMix, OBS NDI plugin, and any other NDI-compatible encoder or software.

The Pro Convert for NDI to SDI uses PoE 802.3af or DC. This is included in the box.
