In Stock


3G-SDI to full NDI encoder with loop-through — broadcast SDI into your IP network.
Ask us a quick question about this product — signal compatibility, use case fit, or anything technical. We usually reply the same day.
The Pro Convert SDI Plus is the broadcast-grade SDI to NDI encoder — the same SDI-to-NDI engine as the SDI TX but with an enhanced management feature set and higher-channel audio support. Up to 16-channel SDI embedded audio is preserved through the encode.
For broadcast facilities, OB trucks, and high-end live-production environments where the SDI feed needs to retain full audio and metadata through the NDI conversion, this is the encoder we recommend over the simpler SDI TX. The enhanced management makes it easier to integrate with broadcast automation systems and remote production workflows.
Compatible with every NDI source on the network: vMix, Wirecast, NewTek TriCaster, OBS via the NDI plugin, and any other NDI-compatible system. PoE-powered with active SDI loop-through so the SDI chain continues uninterrupted.
| SKU | 640400000 |
| Brand | Magewell |
| Category | Pro Convert Encoders |

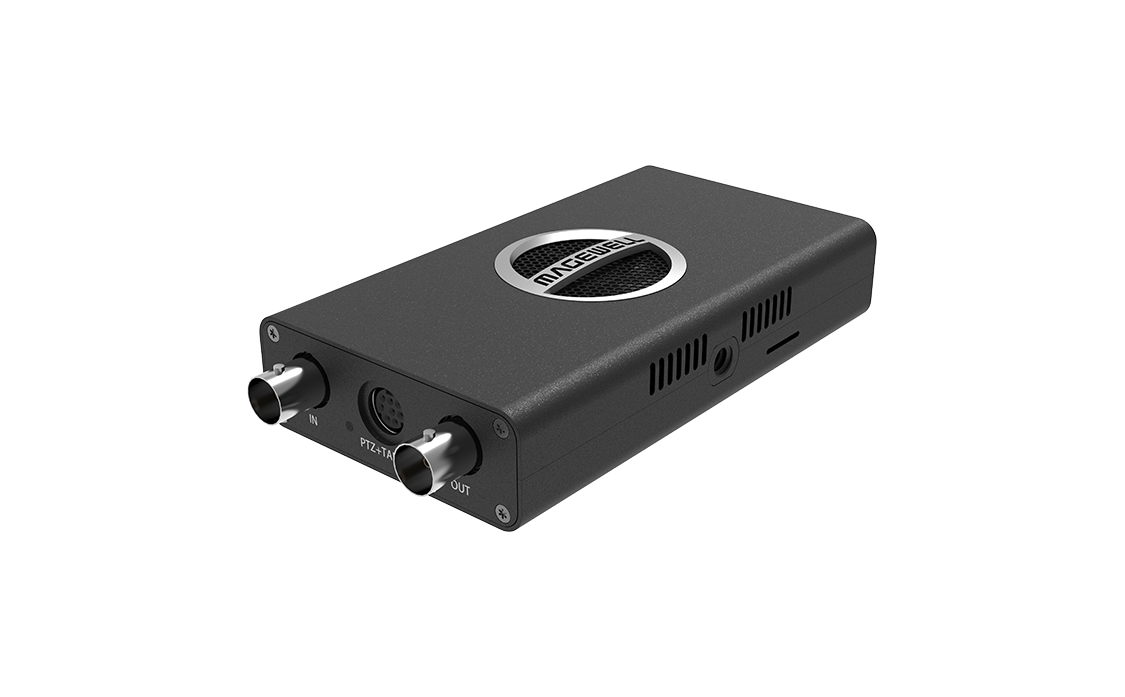

| Video Input | 1× BNC (SD/HD/3G-SDI) — max input & loop-through: 2048×1080 60fps 4:2:2 10-bit — cable equalizer up to 150m |
| Loop-through | 1× BNC (SDI loop-through) |
| Audio Input | SDI embedded (up to 8-ch, 48kHz) — 3.5mm analogue line in |
| Network Output | IP network stream (Gigabit Ethernet) |
| Encoding | H.264 / H.265 / SpeedHQ — AAC — up to 1080p60 encode |
| Streaming Protocols | NDI® High Bandwidth, NDI HX, NDI HX2, NDI HX3 — SRT Caller/Listener — RTMP/RTMPS — RTSP — HLS — TS over UDP/RTP/RIST — HTTP — MPEG-TS |
| Video Processing | De-interlacing — Up/down scaling — Frame rate conversion — Aspect ratio conversion — Colour space conversion (BT.601/709/2020) — PTZ camera control |
| Network & Power | 1× RJ45 Gigabit Ethernet — PoE+ (IEEE 802.3at) powered — Optional USB-C 12V DC |
| Management | Web UI — Magewell Control Hub — REST API — PTZ control (VISCA, PELCO-D/P via NDI) |
| Power | PoE+ (IEEE 802.3at) — Max 12.95W |
| Dimensions | 85mm × 75mm × 26mm — 115g |
| Working Environment | Operating: 0°C to 40°C — Humidity: 20–90% non-condensing |
| UK Stock | In Stock |
| Warranty | 2–3 Years (Magewell manufacturer warranty) |
Full specifications: magewell.com/tech-specs/pro-convert-sdi-plus ↗
Everything included in the box with the Pro Convert SDI Plus. Part numbers and accessory images from official Magewell documentation.




If anything is missing from your delivery, contact us within 7 days and we will arrange a replacement.
Official Magewell documentation for the Pro Convert SDI Plus. Datasheet is mirrored on our server for direct download; drivers, firmware and software live on Magewell's download centre and open in a new tab.
Browse the full Magewell literature library for all product catalogues and datasheets.
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
No. The Pro Convert SDI Plus is a standalone converter. It connects to your network and is managed via Web UI / REST API / Control Hub. Once configured it operates independently with no host PC required.
The Pro Convert SDI Plus converts its video input to NDI, RTMP, RTSP, SRT.
See the specification table above for input details.
Yes. The Pro Convert SDI Plus's network output is compatible with any software that supports its output protocol — including NDI-compatible software such as vMix, OBS (with NDI plugin), Resolume and NewTek products.
Connect your video source and plug the Pro Convert SDI Plus into your network. Access the web interface via its IP address to configure the output stream. Magewell's Device Manager software can also auto-discover devices on your network.
