Bring any SDI source into your NDI network — standalone, PoE powered.
Ask us a quick question about this product — signal compatibility, use case fit, or anything technical. We usually reply the same day.

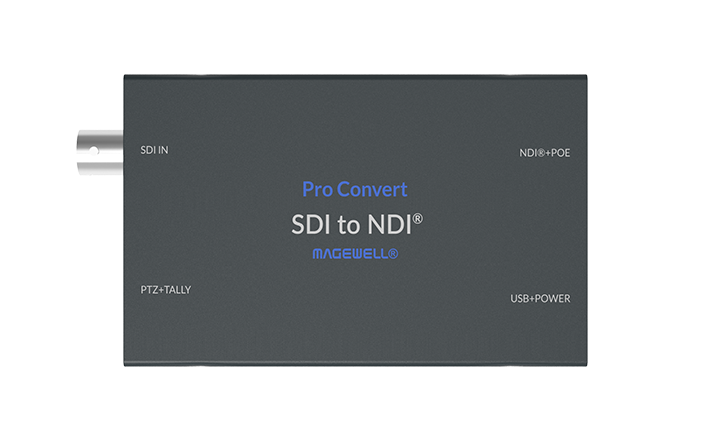

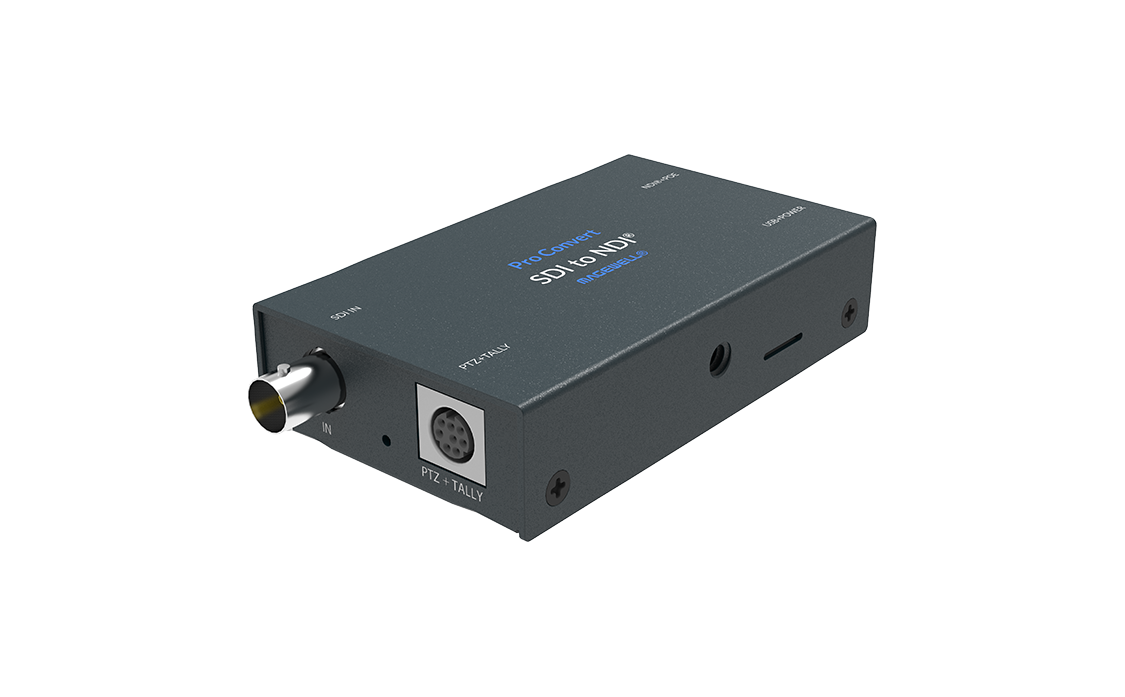

The Pro Convert SDI TX is the SDI counterpart to the HDMI TX — it takes any 3G/HD/SD-SDI source and encodes it as full-bandwidth NDI for distribution over Ethernet. With an active SDI loop-through, the downstream SDI chain continues uninterrupted while encoding runs.
For broadcast and OB facilities migrating from SDI to IP this is the most common bridge device. Existing SDI camera infrastructure stays in place, but a Pro Convert SDI TX at each camera position adds an NDI feed onto the network alongside it. The production gallery can then choose between the SDI feed (for traditional switchers) and the NDI feed (for IP-based systems like vMix or TriCaster).
PoE-powered, so a single Ethernet cable carries both power and the encoded stream from the camera position. Configured via web UI or Magewell Control Hub.
| SKU | 640600000 |
| Brand | Magewell |
| Category | Pro Convert Encoders |
| Video Input | 1× BNC (SD/HD/3G-SDI) — max: 2048×1080 60fps — cable equalizer up to 150m (3G) |
| Loop-through | None |
| Audio Input | SDI embedded (up to 8-ch, 48kHz) — 3.5mm analogue line in |
| Network Output | IP network stream (Gigabit Ethernet) |
| Encoding | H.264 / H.265 / SpeedHQ — AAC — up to 1080p60 encode |
| Streaming Protocols | NDI® High Bandwidth, NDI HX, NDI HX2, NDI HX3 — SRT Caller/Listener — RTMP/RTMPS — RTSP — HLS — TS over UDP/RTP/RIST — HTTP — MPEG-TS |
| Video Processing | De-interlacing — Up/down scaling — Frame rate conversion — Aspect ratio conversion — Colour space conversion (BT.601/709/2020) — PTZ camera control |
| Network & Power | 1× RJ45 Gigabit Ethernet — PoE+ (IEEE 802.3at) powered — Optional USB-C 12V DC |
| Management | Web UI — Magewell Control Hub — REST API — PTZ control (VISCA, PELCO-D/P via NDI) |
| Power | PoE+ (IEEE 802.3at) — Max 12.95W |
| Dimensions | 85mm × 75mm × 26mm — 110g |
| Working Environment | Operating: 0°C to 40°C — Humidity: 20–90% non-condensing |
| UK Stock | In Stock |
| Warranty | 2–3 Years (Magewell manufacturer warranty) |
Full specifications: magewell.com/tech-specs/pro-convert-sdi-tx ↗
Everything included in the box with the Pro Convert SDI TX. Part numbers and accessory images from official Magewell documentation.




If anything is missing from your delivery, contact us within 7 days and we will arrange a replacement.
Official Magewell documentation for the Pro Convert SDI TX. Datasheet is mirrored on our server for direct download; drivers, firmware and software live on Magewell's download centre and open in a new tab.
Browse the full Magewell literature library for all product catalogues and datasheets.
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
No. The Pro Convert SDI TX is a standalone converter. It connects to your network and is managed via Web UI / Control Hub. Once configured it operates independently with no host PC required.
The Pro Convert SDI TX converts its video input to NDI, RTMP, RTSP, SRT.
The Pro Convert SDI TX accepts 1x 3G/HD/SD-SDI with loop-through.
Yes. The Pro Convert SDI TX's network output is compatible with any software that supports its output protocol — including NDI-compatible software such as vMix, OBS (with NDI plugin), Resolume and NewTek products.
Connect your video source and plug the Pro Convert SDI TX into your network. Access the web interface via its IP address to configure the output stream. Magewell's Device Manager software can also auto-discover devices on your network.
