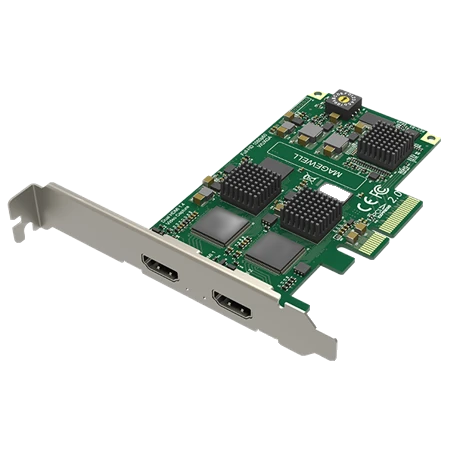

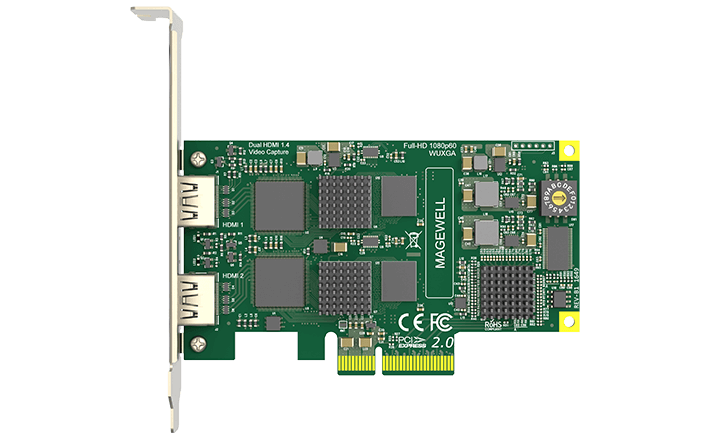

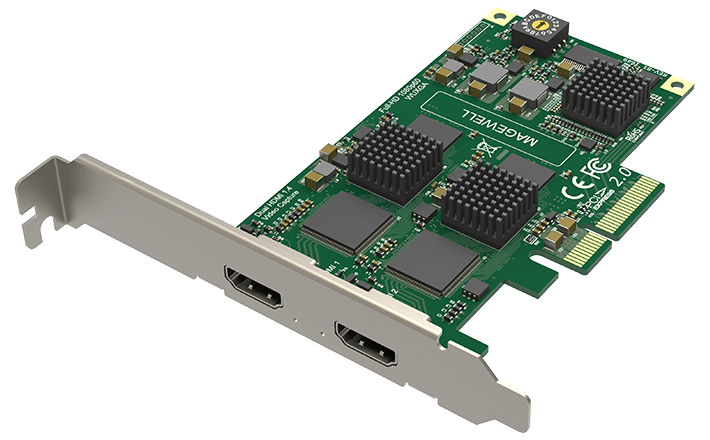

Two independent HDMI capture channels on a single low-profile PCIe x4 card.
Ask us a quick question about this product — signal compatibility, use case fit, or anything technical. We usually reply the same day.
The Pro Capture Dual HDMI gives a workstation two truly independent HDMI ingest channels on one low-profile PCIe x4 card. Each channel has its own FPGA processing pipeline, so the two streams can run at different resolutions, frame rates and colour formats without competing for bandwidth.
This is the card we recommend when the brief calls for two HDMI sources and a 1U rack server is in play — for example a small streaming venue capturing presenter laptop plus room camera, a corporate AV system handling two simultaneous huddle rooms, or a redundant capture build where the same source feeds two independent recording paths for compliance.
Because the channels are fully independent at the silicon level, mixing source types — one 1080p59.94 HDMI camera and one 1080i50 video conferencing feed, for instance — presents no issue. Both appear as separate capture devices in OBS, vMix and similar applications.
| SKU | 110800000 |
| Brand | Magewell |
| Category | Pro Capture |
| Form Factor | Low-profile PCIe x4 — 167.65mm × 68.88mm |
| Host Interface | PCIe Gen2 x4 |

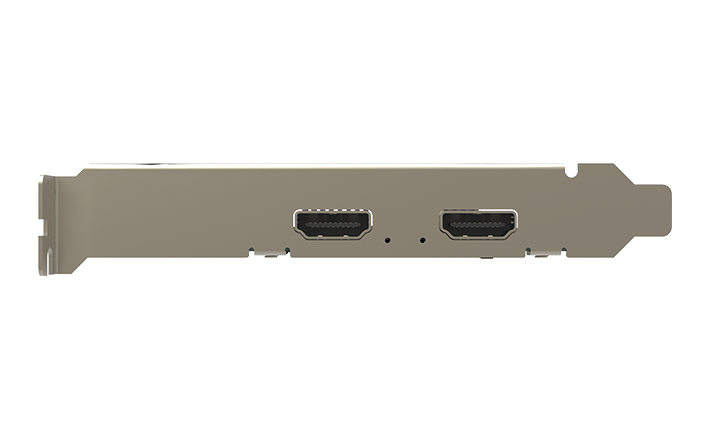

| Video Input | 2× HDMI type A (HDMI 1.4a) |
| Loop-through | None |
| Max Input Resolution | 2048×2160 per channel |
| Signal Features | 225MHz receiver, cables up to 30m — Custom EDID — 8/10/12-bit colour — RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 — Up to 8-ch IEC60958/IEC61937 audio — InfoFrames — 3D (SBS, T&B, Frame Packing) — Sony/Canon DSLR timecode |
| Video Capture Formats | 4:2:0 8-bit: NV12, I420, YV12 — 4:2:2 8-bit: YUY2, YUYV, UYVY — 4:4:4 8-bit: V308, IYU2, V408, BGR24, BGR32 — 4:4:4 10-bit: V410, Y410 — Up to 144fps (resolution & bandwidth dependent) |
| Video Processing | Full 10-bit pipeline (~180 Mpixels/s ×2) — Scaling, Cropping, De-interlace (Weave/Blend/Top/Bottom) — Aspect ratio (Anamorphic/Crop/Letterbox) — Colour space (RGB, YCbCr 601/709/2020) — Frame rate conversion — OSD (PNG up to capture res) per channel |
| Audio | HDMI embedded up to 8-channel per input, 24-bit at 48kHz |
| Multi-Stream | Unlimited simultaneous capture streams per channel — independent crop/colour/resolution/frame rate per stream |
| Latency | Ultra low — 64 video lines |
| DMA Bandwidth | ~400 MB/s (PCIe 2.0) — ~200 MB/s (PCIe 1.0) — Intel tiled GPU, AMD DirectGMA, Nvidia GPUDirect |
| Sync & Timestamp | Hardware 100ns clock — A/V synchronisation — Multi-card sync via SDK |
| Recommended OS | Windows 10/11/Server 2016/2019/2022/2025 (x86 & x64) — Linux x86/x64/ARM kernel 2.6.35+ — macOS 10.9+ / 10.12+ |
| Supported APIs | Windows: DirectShow, DirectKS, WASAPI/Wave/DirectSound — Linux: V4L2, ALSA — macOS: AVCaptureSession, AudioUnit — Magewell Capture SDK |
| Compatible Software | VLC, VirtualDub, OBS, XSplit, vMix, Wirecast, Adobe Flash Media Encoder, Microsoft Media Encoder, any DirectShow/V4L2/AVCaptureSession software |
| Multi-Card / SDK | Magewell Capture SDK — rotary switch 0–F for multi-card systems — safe firmware upgrade without shutdown |
| LED Indicator | Pulsing slowly: no signal — On: signal locked — Double blink: memory/FPGA error — Off: firmware/power fault |
| Power | Max 10W |
| Working Environment | Operating: 0°C to 60°C — Storage: −20°C to 70°C — Humidity: 5–90% non-condensing |
| UK Stock | In Stock |
| Warranty | 2–3 Years (Magewell manufacturer warranty) |
Full specifications: magewell.com/tech-specs/pro-capture-dual-hdmi ↗
Everything included in the box with the Pro Capture Dual HDMI. Part numbers and accessory images from official Magewell documentation.



If anything is missing from your delivery, contact us within 7 days and we will arrange a replacement.
Official Magewell documentation for the Pro Capture Dual HDMI. Datasheet is mirrored on our server for direct download; drivers, firmware and software live on Magewell's download centre and open in a new tab.
Browse the full Magewell literature library for all product catalogues and datasheets.
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
The Pro Capture Dual HDMI uses a Low-profile PCIe x4 slot. It will also fit in larger PCIe slots (x8, x16) as PCIe is backward compatible, but will run at the card's native lane width.
The Pro Capture Dual HDMI is a capture card. Simultaneous playback (loop-through) depends on the specific model — check the Loop-Through spec in the full specification table. ForeFront Imaging can advise if you need simultaneous I/O.
The Pro Capture Dual HDMI works with any software that supports DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS), including OBS Studio, vMix, Wirecast, Capture One, XSplit and most broadcast NLE software. Magewell's free Capture Express software is also available.
The Pro Capture Dual HDMI accepts 2x independent HDMI channels.
The Pro Capture Dual HDMI captures at up to 1920x1080 @ 60fps per channel.
Yes. Magewell Pro Capture cards are fully supported on Windows 10 and Windows 11. Driver downloads are available free from Magewell's website and from our Software page.
