Single-channel HDMI PCIe capture — the essential production ingest card.
Ask us a quick question about this product — signal compatibility, use case fit, or anything technical. We usually reply the same day.

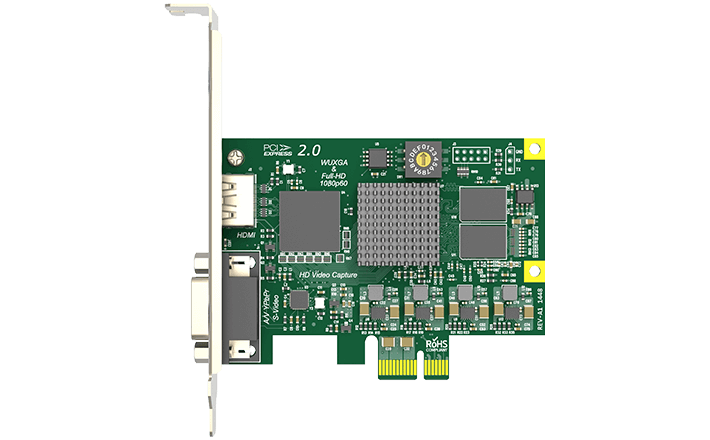

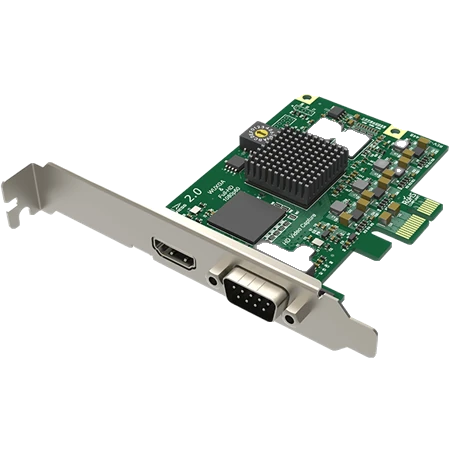

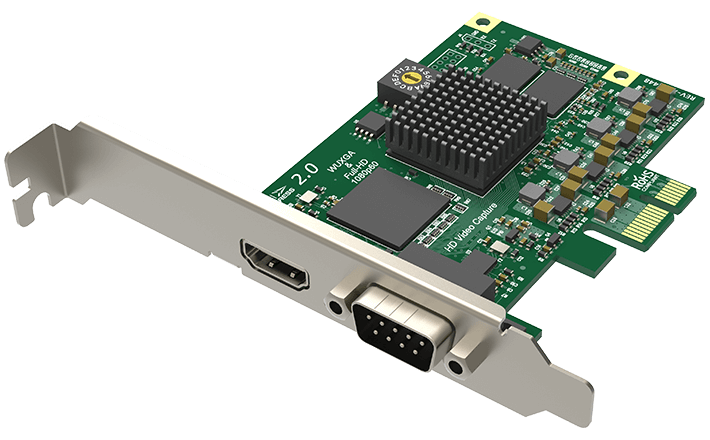

The Magewell Pro Capture HDMI is the starting point for most production capture builds. It takes a single HDMI source and delivers it to your host PC as a clean, low-latency video feed, ready for live production software, broadcast encoding, or direct recording.
The FPGA on the card handles all signal processing in hardware. The card also accepts CVBS composite, S-Video, and YPbPr component video through an internal analogue header. Low-profile PCIe x1 fits 1U rack servers. Rated for 24/7 continuous operation.
| SKU | 110400000 |
| Brand | Magewell |
| Category | Pro Capture |
| Form Factor | Low-profile PCIe x1 — 92.76mm × 68.88mm (without bracket) |
| Host Interface | PCIe Gen2 x1 |

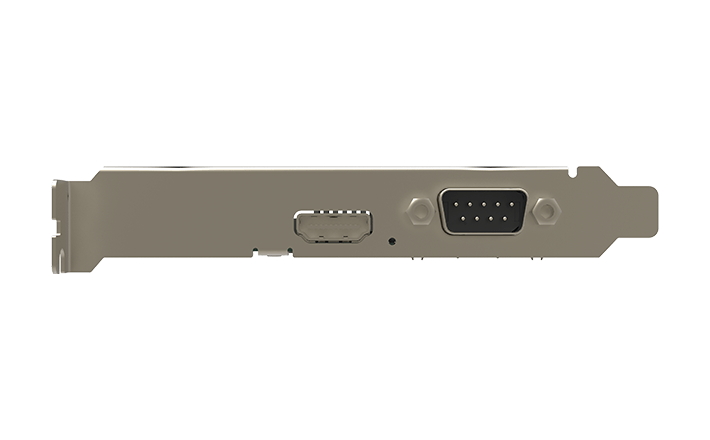

| Video Input | 1× HDMI type A (DVI 1.0 / HDMI 1.4a) + DB9 header (YC/S-Video, Composite, Component, Analogue Audio L+R) |
| Max Input Resolution | 2048×2160 pixels |
| HDMI Features | 225MHz receiver — cables up to 30m — custom EDID — 8/10/12-bit colour depth — RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 — up to 8-ch IEC60958/IEC61937 audio — InfoFrames (AVI/Audio/SPD/MS/VS) — 3D format extraction (SBS, T&B, Frame Packing) — Sony/Canon DSLR timecode |
| Analogue Input | 12-bit ADC — NTSC, PAL, SECAM — RGB & YCbCr — Sync-on-green / Sync-on-luminance — DMT/CEA/CVT/GTF timings |
| Video Capture Formats | 4:2:0 8-bit: NV12, I420, YV12 — 4:2:2 8-bit: YUY2, YUYV, UYVY — 4:4:4 8-bit: V308, IYU2, V408, BGR24, BGR32 — 4:4:4 10-bit: V410, Y410 — Up to 144fps (resolution dependent) — Max 2048×2160 |
| Video Processing | Full 10-bit pipeline (~180 Mpixels/s) — Scaling — Cropping — De-interlacing (Weave/Blend/Top field/Bottom field) — Aspect ratio conversion (Anamorphic/Crop/Letterbox) — Colour space conversion (RGB, YCbCr 601/709/2020) — Frame rate conversion — OSD composition (PNG up to 2048×2160) |
| Audio Input | HDMI embedded (up to 8-channel, 24-bit) + Analogue stereo via DB9 header |
| Multi-Stream | Unlimited simultaneous capture streams per channel — independent crop/colour/resolution/frame rate per stream |
| Latency | Ultra low — 64 video lines |
| DMA Bandwidth | ~400 MB/s (PCIe 2.0) — ~200 MB/s (PCIe 1.0) — Intel tiled GPU, AMD DirectGMA, Nvidia GPUDirect supported |
| Sync & Timestamp | Hardware 100ns clock — A/V synchronisation — Clock sync across multiple cards via SDK |
| Recommended OS | Windows 10/11/Server 2016/2019/2022/2025 (x86 & x64) — Linux x86/x64/ARM kernel 2.6.35+ — macOS 10.9+ / 10.12+ |
| Supported APIs | Windows: DirectShow, DirectKS, WASAPI/Wave/DirectSound — Linux: V4L2, ALSA — macOS: AVCaptureSession, AudioUnit — Magewell Capture SDK |
| Compatible Software | VLC, VirtualDub, OBS, XSplit, vMix, Wirecast, Adobe Flash Media Encoder, Microsoft Media Encoder, any DirectShow/V4L2/AVCaptureSession software |
| Multi-Card | Multiple cards per system — rotary switch positions 0–F — simultaneous firmware upgrade without shutdown |
| LED Indicator | Pulsing slowly: no signal — On: signal locked — Double blink: memory/FPGA error — Off: firmware/power fault |
| Power | Max 4.59W (12V: ~0.34A, 3.3V: ~0.16A) |
| Operating Temp | 0°C to 60°C — Storage: −20°C to 70°C — Humidity: 5–90% non-condensing |
| UK Stock | In Stock |
| Warranty | 2–3 Years (Magewell manufacturer warranty) |
Full specifications: magewell.com/tech-specs/pro-capture-hdmi ↗
Everything included in the box with the Pro Capture HDMI. Part numbers and accessory images from official Magewell documentation.




If anything is missing from your delivery, contact us within 7 days and we will arrange a replacement.
Official Magewell documentation for the Pro Capture HDMI. Datasheet is mirrored on our server for direct download; drivers, firmware and software live on Magewell's download centre and open in a new tab.
Browse the full Magewell literature library for all product catalogues and datasheets.
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
The Pro Capture HDMI uses a Low-profile PCIe x1 slot. It will also fit in larger PCIe slots (x8, x16) as PCIe is backward compatible, but will run at the card's native lane width.
The Pro Capture HDMI is a capture card. Simultaneous playback (loop-through) depends on the specific model — check the Loop-Through spec in the full specification table. ForeFront Imaging can advise if you need simultaneous I/O.
The Pro Capture HDMI works with any software that supports DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS), including OBS Studio, vMix, Wirecast, Capture One, XSplit and most broadcast NLE software. Magewell's free Capture Express software is also available.
The Pro Capture HDMI accepts 1x HDMI + analogue header (CVBS, S-Video, YPbPr).
The Pro Capture HDMI captures at up to 2048x2160.
Yes. Magewell Pro Capture cards are fully supported on Windows 10 and Windows 11. Driver downloads are available free from Magewell's website and from our Software page.
