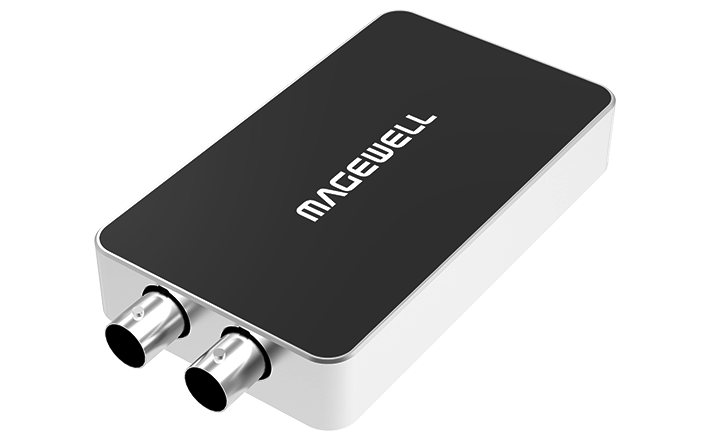

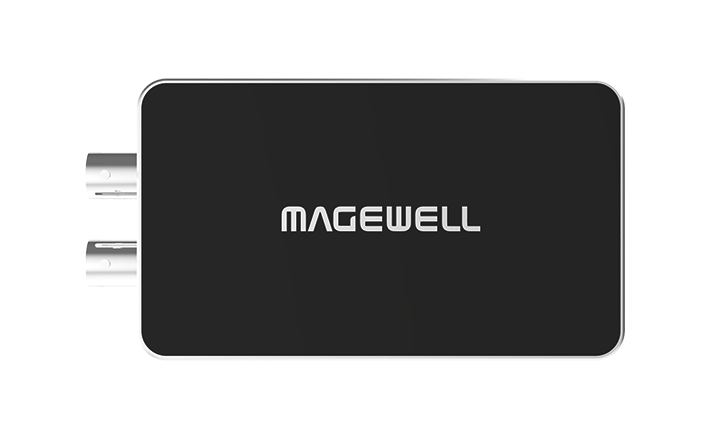

USB Capture SDI Plus
3G-SDI capture with loop-through and line-level audio embedding.

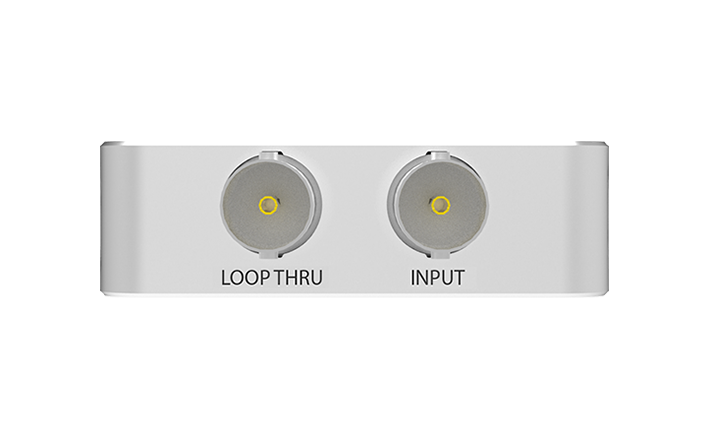

- ✓3G-SDI input with active loop-through output
- ✓Line-level analogue audio input — embed external audio
- ✓FPGA processing, zero CPU usage
- ✓1080p60 SDI capture
- ✓Driver-free on all major OS
- ✓USB bus-powered
About this product
The Magewell USB Capture SDI Plus adds an active SDI loop-through and a line-level audio input, letting you embed external audio from a mixing desk directly into your captured stream.
Built for professional broadcast environments where SDI monitoring must continue uninterrupted while capturing, and where external commentary audio needs embedding without a separate audio interface.
Related Products
New products and Magewell updates
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
Further Reading
Frequently Asked Questions
Yes. The USB Capture SDI Plus appears as a standard UVC capture device in OBS Studio on Windows, macOS and Linux — no extra plugin or driver needed. Select it as a Video Capture Device source.
The USB Capture SDI Plus supports Windows, macOS and Linux. It uses the UVC standard so it works without installing drivers on most platforms.
The USB Capture SDI Plus captures at up to 1920x1080 @ 60fps. Check the full spec sheet for the complete list of supported resolutions and frame rates.
Yes. Because the USB Capture SDI Plus presents itself as a standard webcam/capture device via UVC, it is recognised by Microsoft Teams, Zoom, Google Meet and most other video conferencing platforms without any additional software.
Yes — it draws power from the USB port itself (USB bus-powered), so no external power supply is required.
The USB Capture SDI Plus connects via USB 3.0. It is backward compatible with USB 2.0 ports but capture performance will be limited at lower USB speeds — a USB 3.0 port is recommended for full-resolution capture.
