In Stock

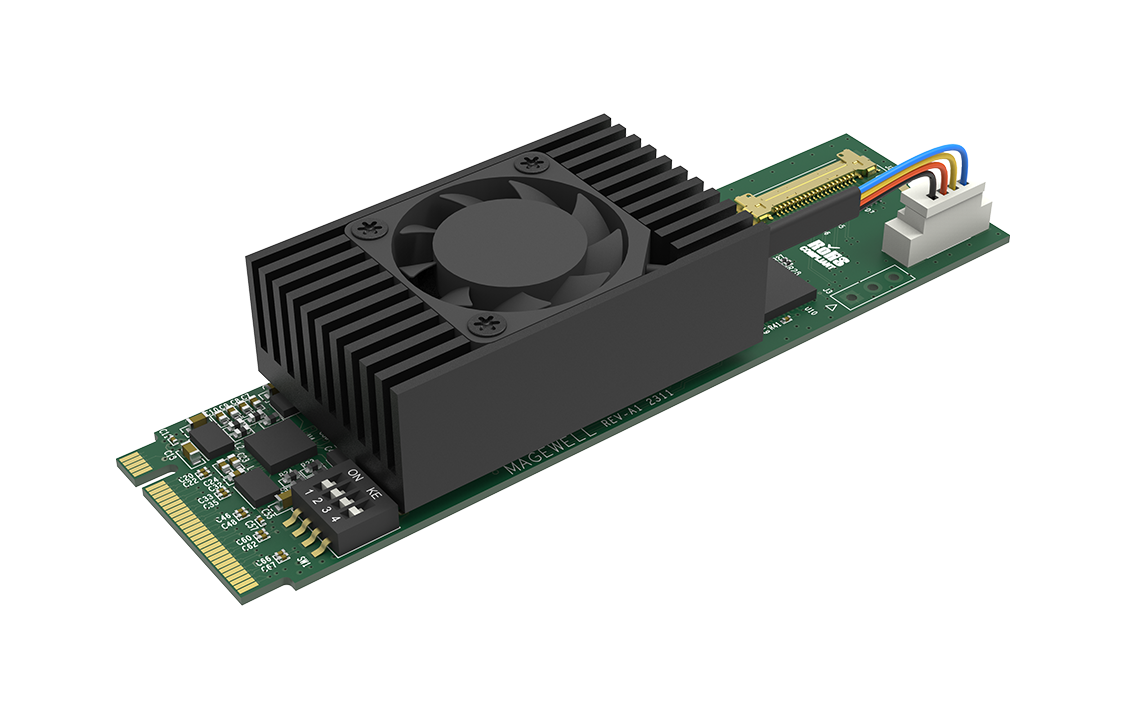

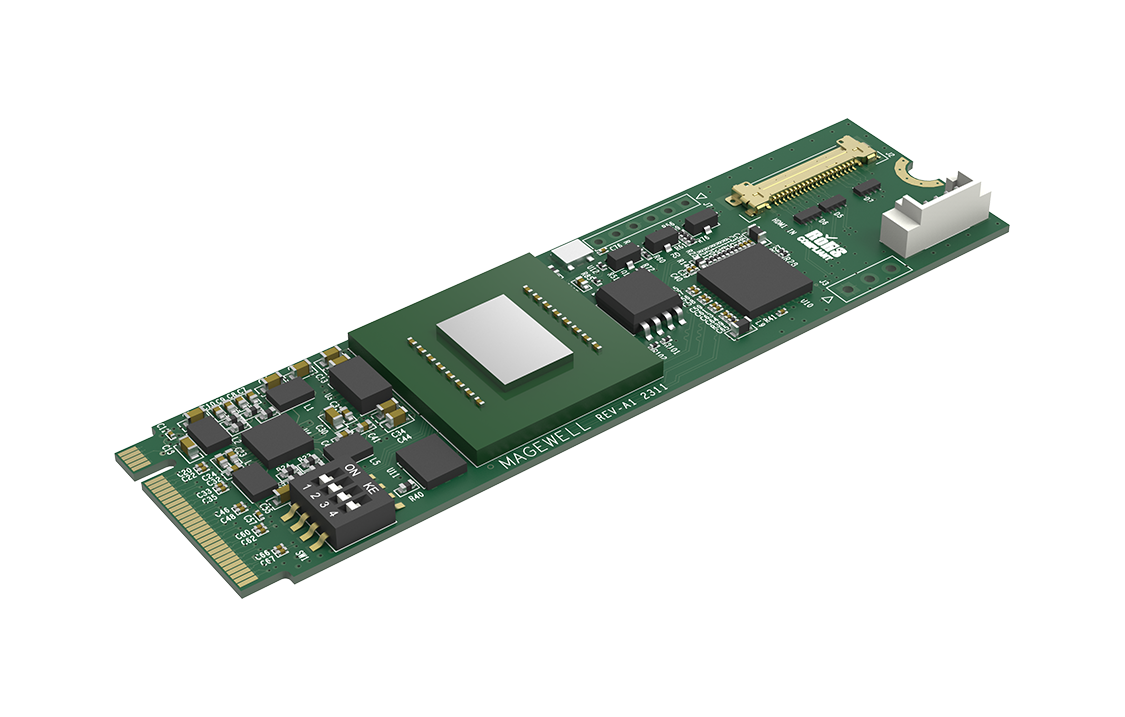

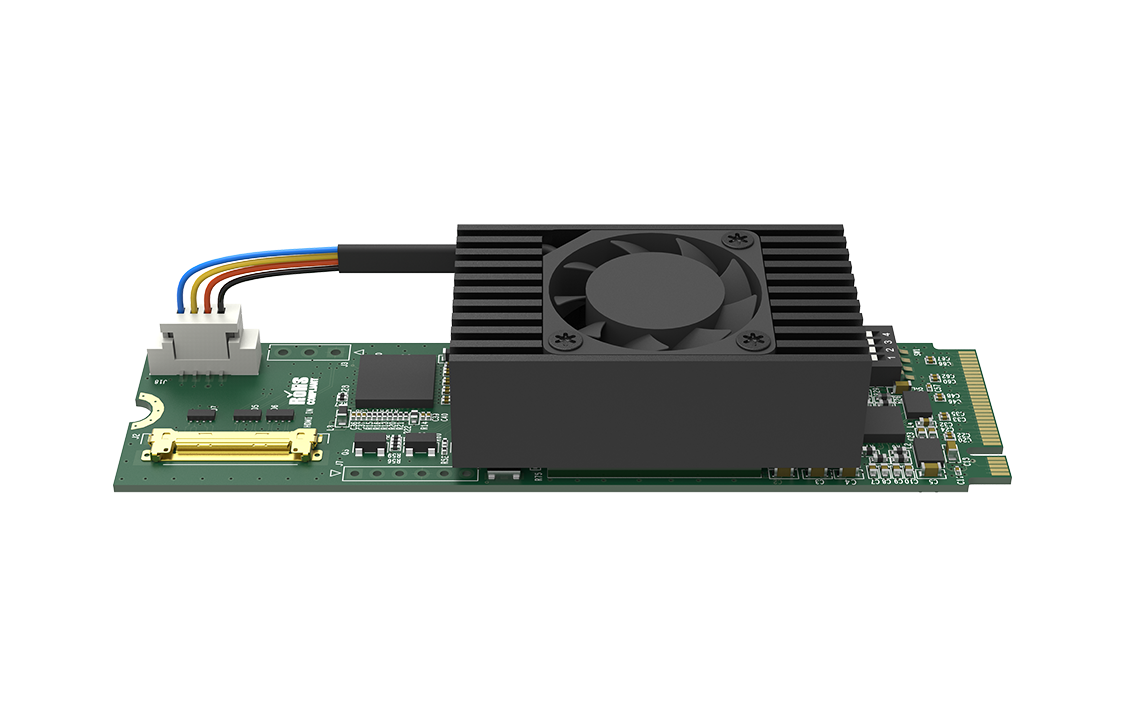

Single-channel 4K60 HDMI capture on M.2 with MCC breakout connector.
Ask us a quick question about this product — signal compatibility, use case fit, or anything technical. We usually reply the same day.
The Eco Capture HDMI 4K Plus M.2 captures 4K HDMI at the full 60 frames per second — the format that 4K HDMI 2.0 sources output natively. It is the step up from the Eco Capture HDMI 4K M.2 when 30fps is not enough.
Because a standard HDMI Type A connector is physically larger than an M.2 card, the HDMI socket is delivered on an MCC breakout cable that plugs into the card and routes the connector out to a chassis bracket. This is the standard arrangement on every M.2 video card in the industry and works reliably with any HDMI source.
Typical applications include compact 4K production builds for broadcast and live events, embedded medical 4K recorders where the surgical camera outputs HDMI 2.0, and high-resolution industrial imaging in chassis too small for a full PCIe card. The same FPGA pipeline as the full-size Pro Capture HDMI 4K Plus means frame timing and colour handling are unchanged in the smaller form factor.
| SKU | 115900000 |
| Brand | Magewell |
| Category | Eco Capture |
| Form Factor | M.2 2280 (22mm × 80mm) — M-Key PCIe Gen2 x1 |
| Host Interface | M.2 M-Key — PCIe Gen2 x1 |
| Video Input | 1× Micro HDMI type D (HDMI 2.0) |
| Loop-through | None |
| Max Input Signal | 4096×2160 60fps 4:4:4 |
| Max Capture Resolution | Up to 4096×2160 — 240fps max (bandwidth limited) |
| Signal Features | 594MHz HDMI receiver — HDMI 2.0 — HDR10/HLG — Custom EDID — RGB/YUV 4:4:4 8/10/12-bit, YUV 4:2:0 — Up to 8-ch 24-bit audio at 192kHz |
| Video Capture Formats | 4:2:0 8-bit: NV12, I420, YV12 — 4:2:2 8-bit: YUY2, YUYV, UYVY — 4:4:4 8-bit: V308, IYU2, V408, BGR24, BGR32 — 4:4:4 10-bit: V410, Y410 — Up to 144fps (PCIe bandwidth & resolution dependent) |
| Video Processing | ~360 Mpixels/s pipeline — Custom EDID — Scaling, de-interlace, colour space conversion, frame rate conversion |
| Audio | HDMI embedded up to 8-ch, 24-bit at 192kHz |
| Multi-Card / SDK | Unlimited capture streams per channel (same format) — DIP switch 0–F for multi-card systems — Safe firmware upgrade without shutdown |
| Recommended OS | Windows 10/11/Server 2016/2019/2022/2025 (x86 & x64) — Linux x86/x64/ARM kernel 2.6.35+ — macOS 10.9+ / 10.12+ |
| Supported APIs | Windows: DirectShow, DirectKS, WASAPI/Wave/DirectSound — Linux: V4L2, ALSA — Magewell Capture SDK (MWCapture) |
| Compatible Software | VLC, OBS, vMix, Wirecast, XSplit, any DirectShow/V4L2 software — Magewell USB Capture Utility |
| Power | PCIe slot power — Max 5W |
| Dimensions | 22mm × 80mm (M.2 2280) — M-Key connector |
| Working Environment | Operating: 0°C to 60°C — Storage: −20°C to 70°C — Humidity: 5–90% non-condensing |
| UK Stock | In Stock |
| Warranty | 2–3 Years (Magewell manufacturer warranty) |
Full specifications: magewell.com/tech-specs/eco-capture-hdmi-4k-plus-m2 ↗
Everything included in the box with the Eco Capture HDMI 4K Plus M.2. Part numbers and accessory images from official Magewell documentation.


If anything is missing from your delivery, contact us within 7 days and we will arrange a replacement.
Official Magewell documentation for the Eco Capture HDMI 4K Plus M.2. Datasheet is mirrored on our server for direct download; drivers, firmware and software live on Magewell's download centre and open in a new tab.
Browse the full Magewell literature library for all product catalogues and datasheets.
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
The Eco Capture HDMI 4K Plus M.2 uses an M.2 slot. Check your motherboard manual for available M.2 slots — Eco Capture M.2 cards use the PCIe lanes on the M.2 connector, not SATA, so the slot must support M.2 PCIe.
Yes. Download the Magewell Eco Capture driver from Magewell's website (free). It supports Windows 10/11 and recent Linux kernels. macOS is not currently supported for Eco Capture M.2 cards.
The Eco Capture HDMI 4K Plus M.2 accepts 1x HDMI 2.0 via MCC breakout.
Yes, multiple Eco Capture M.2 cards can be installed in the same system provided there are available M.2 PCIe slots. Each card is independently addressable.
The Eco Capture HDMI 4K Plus M.2 works with DirectShow (Windows) and V4L2 (Linux) compatible software, including OBS Studio, vMix, Wirecast and Magewell Capture Express.
