12G-SDI 4K/60fps to full NDI — the broadcast 4K60 NDI encoder.
Ask us a quick question about this product — signal compatibility, use case fit, or anything technical. We usually reply the same day.

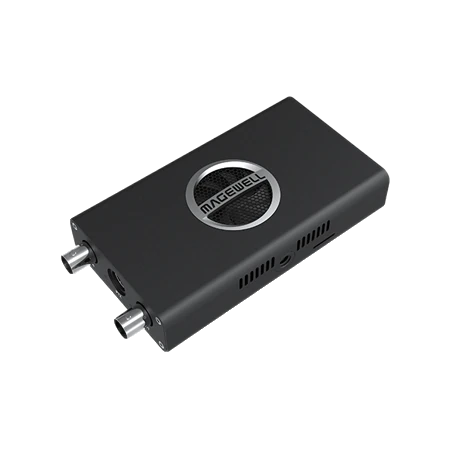

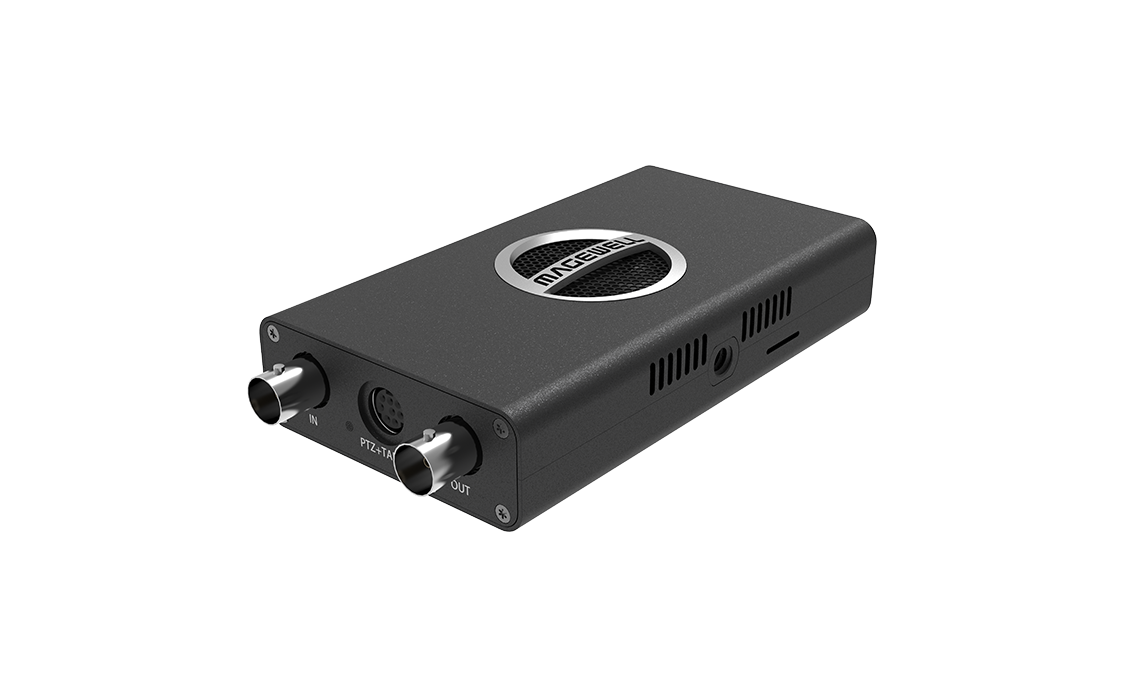

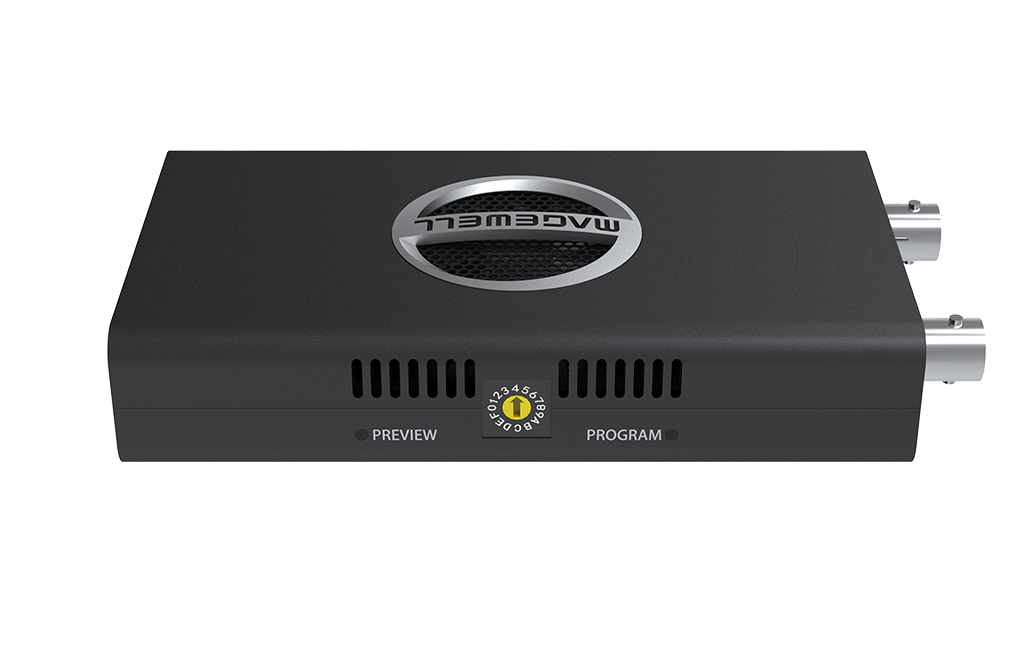

The Pro Convert 12G SDI 4K Plus is the top-end SDI to NDI encoder — 12G-SDI input at the full 4K60 (the current professional broadcast standard) encoded to full-bandwidth NDI in real time. Active loop-through preserves the SDI chain.
For the most demanding 4K NDI workflows this is the encoder we recommend. Broadcast cameras outputting 12G-SDI 4K60 are encoded at full bandwidth and full frame rate — nothing is dropped to fit. The wider single-link bandwidth of 12G simplifies cabling versus older quad-link 3G-SDI 4K workflows (one cable instead of four).
Backward compatibility with 6G, 3G, HD and SD-SDI is built in, so the device adapts to whatever signal a camera delivers. Standalone PoE-powered appliance, managed via web UI or Magewell Control Hub.
| SKU | 640900000 |
| Brand | Magewell |
| Category | Pro Convert Encoders |
| Video Input | 1× BNC (SD/HD/3G/6G/12G-SDI) — max input & loop-through: 4096×2160 60fps (12G-SDI) — cable equalizer up to 80m (12G) |
| Loop-through | 1× BNC (SDI loop-through, max 4Kp60) |
| Audio Input | SDI embedded (up to 8-ch, 48kHz) — 3.5mm analogue line in |
| Network Output | IP network stream (Gigabit Ethernet) |
| Encoding | H.264 / H.265 / SpeedHQ — AAC — up to 4Kp60 encode |
| Streaming Protocols | NDI® High Bandwidth, NDI HX, NDI HX2, NDI HX3 — SRT Caller/Listener — RTMP/RTMPS — RTSP — HLS — TS over UDP/RTP/RIST — HTTP — MPEG-TS |
| Video Processing | De-interlacing — Up/down scaling — Frame rate conversion — Aspect ratio conversion — Colour space conversion (BT.601/709/2020) — PTZ camera control — HDR10/HLG |
| Network & Power | 1× RJ45 Gigabit Ethernet — PoE+ (IEEE 802.3at) powered — Optional USB-C 12V DC |
| Management | Web UI — Magewell Control Hub — REST API — PTZ control (VISCA, PELCO-D/P via NDI) |
| Power | PoE+ (IEEE 802.3at) — Max 12.95W |
| Dimensions | 85mm × 75mm × 26mm — 115g |
| Working Environment | Operating: 0°C to 40°C — Humidity: 20–90% non-condensing |
| UK Stock | In Stock |
| Warranty | 2–3 Years (Magewell manufacturer warranty) |
Full specifications: magewell.com/tech-specs/pro-convert-12g-sdi-4k-plus ↗
Everything included in the box with the Pro Convert 12G SDI 4K Plus. Part numbers and accessory images from official Magewell documentation.




If anything is missing from your delivery, contact us within 7 days and we will arrange a replacement.
Official Magewell documentation for the Pro Convert 12G SDI 4K Plus. Datasheet is mirrored on our server for direct download; drivers, firmware and software live on Magewell's download centre and open in a new tab.
Browse the full Magewell literature library for all product catalogues and datasheets.
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
No. The Pro Convert 12G SDI 4K Plus is a standalone converter. It connects to your network and is managed via Web UI. Once configured it operates independently with no host PC required.
The Pro Convert 12G SDI 4K Plus converts its video input to NDI, RTMP, RTSP, SRT.
The Pro Convert 12G SDI 4K Plus accepts 12G-SDI (4K@60fps), 6G, 3G, HD, SD-SDI.
Yes. The Pro Convert 12G SDI 4K Plus's network output is compatible with any software that supports its output protocol — including NDI-compatible software such as vMix, OBS (with NDI plugin), Resolume and NewTek products.
Connect your video source and plug the Pro Convert 12G SDI 4K Plus into your network. Access the web interface via its IP address to configure the output stream. Magewell's Device Manager software can also auto-discover devices on your network.
