Standalone HDMI hardware encoder — stream without a PC.
Ask us a quick question about this product — signal compatibility, use case fit, or anything technical. We usually reply the same day.

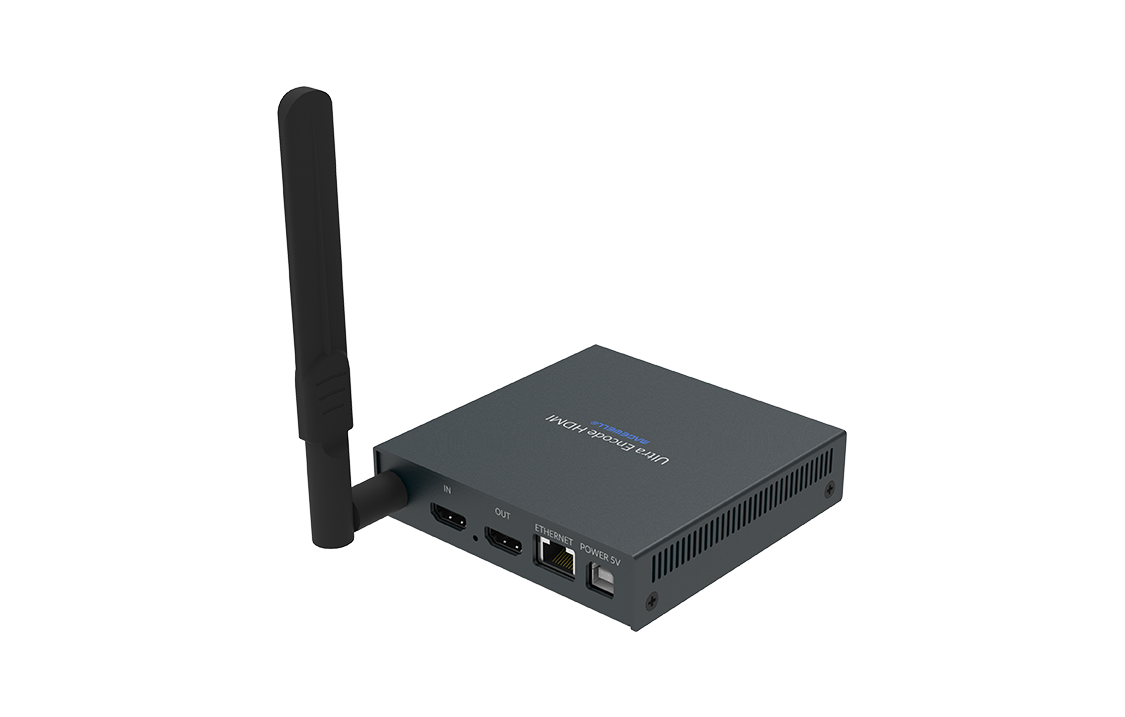

The Ultra Encode HDMI is a standalone hardware streaming encoder for HDMI sources. Connect a camera, switcher output or any HDMI signal, configure destinations through the web UI once, and the device streams continuously to RTMP, RTMPS, RTSP, SRT or NDI|HX without any host PC involved.
For permanent venue installations this is the right answer where a streaming PC is impractical — permanent church streaming setups that need to "just work" every Sunday, conference room webcasting installations, classroom recording rigs, sports venue camera positions. Configure once, leave running.
The HDMI loop-through keeps a downstream monitor connected for confidence viewing, and the device can stream to multiple platforms simultaneously — YouTube Live, Facebook Live, custom RTMP, and an NDI|HX feed for in-network production, all running at the same time.
| SKU | 531100000 |
| Brand | Magewell |
| Category | Ultra Encode |
| Form Factor | Standalone encoder — 135mm × 87mm × 30mm — 310g |
| Video Input | 1× HDMI type A (HDMI 1.4a / DVI-D) — max: 4096×2160 30fps 4:4:4/4:2:2 or 60fps 4:2:0 |
| Loop-through | 1× HDMI type A (loop-through) |
| Audio Input | HDMI embedded (up to 8-ch, 24-bit, 192kHz) — 3.5mm line in |
| Audio Output | 3.5mm headphone/line out |
| Encoding | Video: H.264 (AVC), H.265 (HEVC), SpeedHQ — Audio: AAC-LC, AAC-HE, MP3 — Container: MP4, MOV, TS — Dual stream (main + sub) — Up to 32Mbps |
| Streaming Protocols | RTMP/RTMPS — RTSP — SRT Caller/Listener (AES-128/192/256) — NDI® HX2/HX3 — HLS — TS over UDP/RTP — TVU ISSP — RIST Listener — Zixi |
| Destinations / Recording | YouTube, Facebook Live, Twitch, custom RTMP/RTMPS — Up to 6 simultaneous streaming destinations — Record to USB storage — Scheduling |
| Network | 1× RJ45 Gigabit Ethernet — Wi-Fi 802.11 a/b/g/n/ac (Station & AP modes) — Optional 4G/5G USB modem |
| Display / Control | 1.9" LCD (320×172) with real-time preview, audio meter, status — Tap controls |
| Management | Web UI (Chrome/Firefox/Edge/Safari/Opera) — Magewell Control Hub — Zixi ZEN Master — REST API for 3rd party integration |
| Power | 12V DC adapter — Max 18W |
| Dimensions | 135mm × 87mm × 30mm — 310g |
| Working Environment | Operating: 0°C to 45°C — Storage: −20°C to 70°C — Humidity: 5–90% non-condensing |
| UK Stock | In Stock |
| Warranty | 2–3 Years (Magewell manufacturer warranty) |
Full specifications: magewell.com/tech-specs/ultra-encode-hdmi ↗
Everything included in the box with the Ultra Encode HDMI. Part numbers and accessory images from official Magewell documentation.




If anything is missing from your delivery, contact us within 7 days and we will arrange a replacement.
Official Magewell documentation for the Ultra Encode HDMI. Datasheet is mirrored on our server for direct download; drivers, firmware and software live on Magewell's download centre and open in a new tab.
Browse the full Magewell literature library for all product catalogues and datasheets.
No marketing noise. Just new product launches, firmware updates, and the occasional guide.
No spam. Unsubscribe any time. Your email is never shared.
No. The Ultra Encode HDMI is a standalone hardware encoder — it requires no PC or host software. It connects to your network and is managed via Web UI / REST API. Simply connect your video source, configure the stream destination once, and it operates independently.
The Ultra Encode HDMI supports RTMP, RTMPS, RTSP, SRT, NDI|HX. It can stream simultaneously to multiple destinations.
The Ultra Encode HDMI encodes using H.264 + HEVC hardware hardware encoding, delivering low-latency output without putting load on a host CPU.
The Ultra Encode HDMI accepts 1x HDMI (up to 4Kp30 or 1080p60).
The Ultra Encode HDMI is configured via Web UI / REST API. Access the web interface by entering the device's IP address in any browser on the same network. No software installation is required.
Yes — the Ultra Encode HDMI supports NDI|HX output, allowing it to send video over your network to NDI-compatible receivers.
