USB Capture SDI Gen 2In Stock

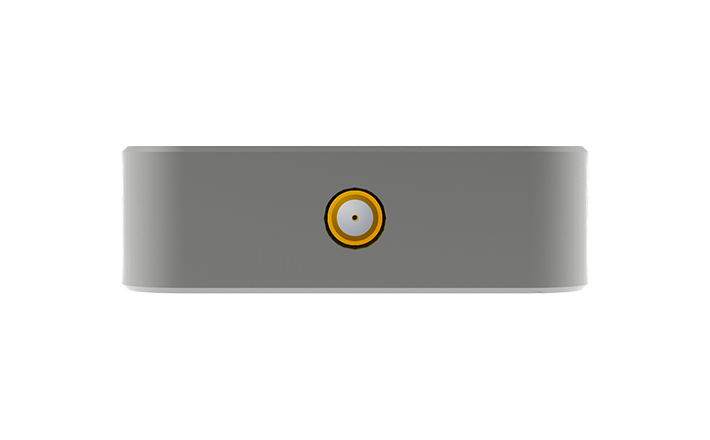

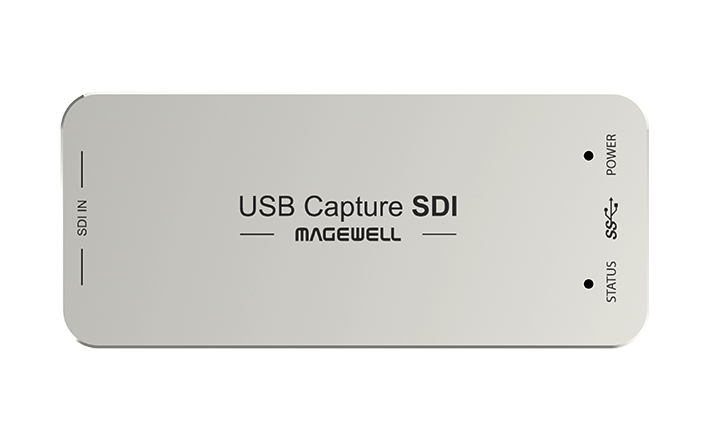

USB Capture SDI Gen 2 view 1USB Capture SDI Gen 2 view 2USB Capture SDI Gen 2 view 3
USB CaptureIn Stock

USB Capture SDI Gen 2

● In Stock  ·  Ships same day if ordered before 3pm
🎯
Free Pre-Sales Technical Consultation
Not sure if this is the right product for your workflow? Call or email us — we'll configure the right solution first time, at no charge.
📐 How it works
📹
SDI Broadcast Camera
BNC connector
→
⚡
USB Capture SDI Gen 2
USB 3.0 · No drivers · UVC
→
💻
OBS / vMix / Panopto
Any capture software
Best For
Broadcast cameras, ENG cameras, news production
Locking BNC SDI, no drivers, cross-platform
SKU: 320700000

Professional 3G-SDI capture in a pocket-sized dongle.

  • ✓3G-SDI input — backward compatible with HD-SDI and SD-SDI
  • ✓Active SDI loop-through output for local monitoring
  • ✓FPGA onboard processing, zero CPU usage
  • ✓Captures up to 1080p60 from SDI sources
  • ✓8-channel 24-bit SDI embedded audio
  • ✓Driver-free on Windows, Mac, Linux and Chrome OS
  • ✓USB bus-powered — no external power required
1080p603G-SDISDI LTFPGA
Request a Quote

Ask us a quick question about this product — signal compatibility, use case fit, or anything technical. We usually reply the same day.

💡
About your shortlist
Click Add to Shortlist on any products you'd like further information or details about. When you've finished browsing, head to our Contact form — your shortlist is automatically attached to the message so we can get back to you with whatever you need.
Not sure which products fit? Try the Compare ModelsFind My Product tool, or just send us a note and we'll guide you.

About this product

The Magewell USB Capture SDI Gen 2 captures broadcast-grade SDI video with a dedicated loop-through output for local monitoring. Connect any SD/HD/3G-SDI source to your computer via USB 3.0 with no drivers required.

The FPGA-based onboard processing handles all signal conversion in hardware, leaving your CPU free. The SDI loop-through output keeps downstream SDI equipment operational while capturing.

Ideal For

Live Events
Capture SDI camera feeds for live streaming at events and venues without a dedicated capture workstation.
Field Production
Connect professional SDI cameras to a laptop for location-based capture and streaming.
Broadcast Ingest
Capture SDI router outputs or camera feeds for live switching and recording.
Sports Production
Multi-camera SDI ingest at sports venues for live production workflows.
Hybrid Conferencing
Also suitable: Bring high-quality video into Zoom, Teams or Webex calls without relying on built-in webcams.
Houses of Worship
Also suitable: Stream and record services to YouTube, Facebook or website for remote and overflow congregations.

Related Products

Magewell USB Capture SDI Gen 2 — hdmi gen2
USB Capture
USB Capture HDMI Gen 2
Magewell USB Capture SDI Gen 2 — hdmi plus
USB Capture
USB Capture HDMI Plus
Magewell USB Capture SDI Gen 2 — sdi plus
USB Capture
USB Capture SDI Plus
Magewell USB Capture SDI Gen 2 — dvi plus
USB Capture
USB Capture DVI Plus
Stay Updated

New products and Magewell updates

No marketing noise. Just new product launches, firmware updates, and the occasional guide.

No spam. Unsubscribe any time. Your email is never shared.

Frequently Asked Questions

Yes. The USB Capture SDI Gen 2 appears as a standard UVC capture device in OBS Studio on Windows, macOS and Linux — no extra plugin or driver needed. Select it as a Video Capture Device source.

The USB Capture SDI Gen 2 supports Windows 10/11, macOS 10.9+, Linux, Chrome OS. It uses the UVC standard so it works without installing drivers on most platforms.

The USB Capture SDI Gen 2 captures at up to 1920x1080 @ 60fps. Check the full spec sheet for the complete list of supported resolutions and frame rates.

Yes. Because the USB Capture SDI Gen 2 presents itself as a standard webcam/capture device via UVC, it is recognised by Microsoft Teams, Zoom, Google Meet and most other video conferencing platforms without any additional software.

Yes — it draws power from the USB port itself (USB bus-powered), so no external power supply is required.

The USB Capture SDI Gen 2 connects via USB 3.0. It is backward compatible with USB 2.0 ports but capture performance will be limited at lower USB speeds — a USB 3.0 port is recommended for full-resolution capture.
