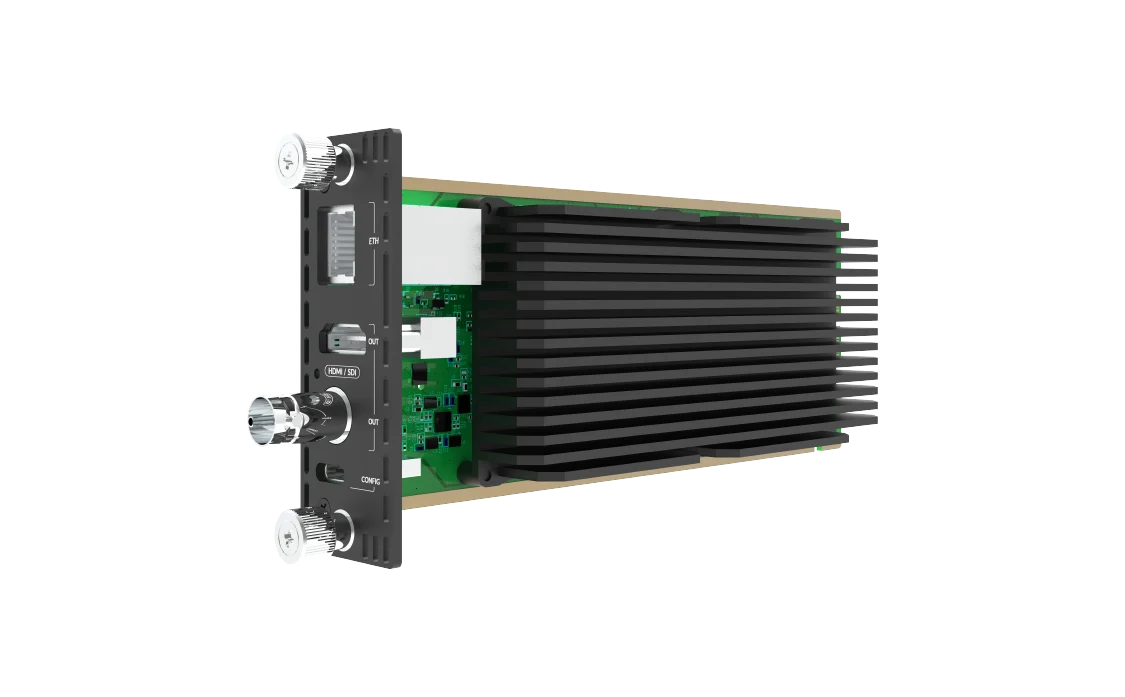

Magewell Pro Convert for NDI to AIO Module
Feed a screen over HDMI and a mixer or router over SDI from one NDI or IP stream, with both outputs live at once, up to 1080p60.
- ✓Decodes one network stream of up to 2Kp60 and outputs it as video for the equipment you already have
- ✓HDMI and SDI outputs work at the same time, each up to 1920×1080 at 60 fps, so you can feed two devices from one module
- ✓Decodes NDI High Bandwidth, NDI HX, HX2 and HX3; supports NDI 6.3
- ✓Also decodes RTSP, HTTP, HLS, RTMP, MPEG-TS over UDP / SRT / RTP and TVU streams, so one module suits local and remote sources
- ✓8-channel 48 kHz audio on both outputs, with no separate audio cabling
- ✓Hot-swappable module for the Modator 2U chassis, which powers it; draws at most 5.2 W
Watch the videos
Plays from YouTube when you press play. All our videos · Setup & guides playlist
Magewell Modator 2U
Up to ten encoder, decoder and streaming modules in any mix, in one 2U rack chassis that powers and monitors them all.
Watch on YouTubeMagewell Modator 2U: Build a Complete Venue System, Job by Job
One 2U rack running a whole venue, built one job at a time with every cable shown on the real module faceplates: sources onto the network, pictures to every screen, a live stream with recording and a four-way control-room multiview. Then hot-swap, 24/7 running, the four ways to control it and what you need.
Watch on YouTubeAbout this product
Control rooms and venues that work in NDI still have to get pictures back out to ordinary equipment: a display that wants HDMI, a vision mixer or router that wants SDI. The Pro Convert for NDI to AIO Module is the NDI decoder for that job. It takes one video stream from the network and turns it back into ordinary video for a monitor, projector, vision mixer or router. “AIO” here means it has both an HDMI output and an SDI output, and both are live together. It is a slide-in module for the Magewell Modator 2U chassis, so a rack of them can serve a whole control room or venue from one place.
HDMI and SDI together
The module decodes a stream and outputs HDMI and SDI signals simultaneously. The same decoded picture is available on both sockets all the time, with nothing to select in software. One module can feed a display over HDMI and a mixer or recorder over SDI together, which saves a separate converter between them. It also means you can decide between HDMI and SDI on the day instead of at the point of order. Each module decodes one stream, so plan one module per programme.
What goes in
- From the network. One stream of up to 2Kp60: NDI High Bandwidth, NDI HX, NDI HX2 and NDI HX3, plus H.264 and H.265 streams over RTSP, HTTP, HLS, RTMP (pull or push), MPEG-TS over UDP, SRT or RTP, and TVU. That range lets you use the same module for a studio NDI source one day and an incoming SRT contribution feed the next.
- NDI version. NDI 6.3 is supported, and the module can discover NDI devices across network segments, so sources on another part of the network are within reach.
What comes out
- HDMI. One HDMI output, up to 1920×1080 at 60 frames per second.
- SDI. One SDI output, up to 1920×1080 at 60 frames per second, covering SD, HD and 3G-SDI formats.
- Audio. 8 channels at 48 kHz, embedded in both outputs, so sound follows the picture down either cable.
- Picture controls. Image flip for inverted projector installations, and safe area controls.
- Delay. Latency is very low.
Both outputs run at up to 1080p60, which suits HD displays, mixers and routers. For a 4K display, see the Pro Convert for NDI to HDMI 4K Module.
How it fits in the chassis
- Powered by the chassis. The module slides into a slot of the Modator 2U chassis, which holds up to ten modules and supplies their power. Order the chassis with it if you are starting a new rack.
- Hot-swappable. It connects to the chassis through its Modator interface and can be swapped while the rack is running, which keeps your other outputs on screen.
- Its own network socket. The module has its own Gigabit Ethernet port (RJ45), as well as a USB Type-C port for configuration.
- Power and size. It draws at most 5.2 W, inside the chassis limit of 20 W per slot. It measures 184.4 × 30.0 × 81.5 mm and weighs about 300 g.
Setting it up
- You can configure it from the touch screen on the Modator chassis, from the Web GUI in a browser, or from Magewell Control Hub for managing many devices from one place.
- HTTP-based APIs are provided for custom integration, so you can tie the module into a control system.
Where it sits in the range
The same specification is also available in a standalone form. If one or two channels are all you need, see the standalone Pro Convert for NDI to AIO. The other modules are listed on the Modator range page.
Compatible Software
Related Products
Further Reading
Frequently Asked Questions
Yes. The module decodes a stream and outputs HDMI and SDI simultaneously, so both sockets are always live and you can feed two devices from one module.
1920×1080 at 60 frames per second on both HDMI and SDI, from streams of up to 2Kp60. For 4K output, choose the Pro Convert for NDI to HDMI 4K Module.
NDI High Bandwidth, NDI HX, NDI HX2 and NDI HX3, and H.264 or H.265 streams over RTSP, HTTP, HLS, RTMP pull or push, MPEG-TS over UDP, SRT or RTP, and TVU. One module covers both NDI on the local network and streams arriving from elsewhere.
One stream, sent as the same picture to both the HDMI and the SDI output. For two different programmes, use two modules.
A slot in the Modator 2U chassis, which supplies its power. For a freestanding unit of the same specification, see the standalone Pro Convert for NDI to AIO.
The Pro Convert for NDI to AIO Module. The chassis powers it, so it is ready to slide in; add your own video and network cables.
From the touch screen of the Modator chassis, from the Web GUI in a browser, or through Magewell Control Hub. HTTP-based APIs are available for custom integration.
