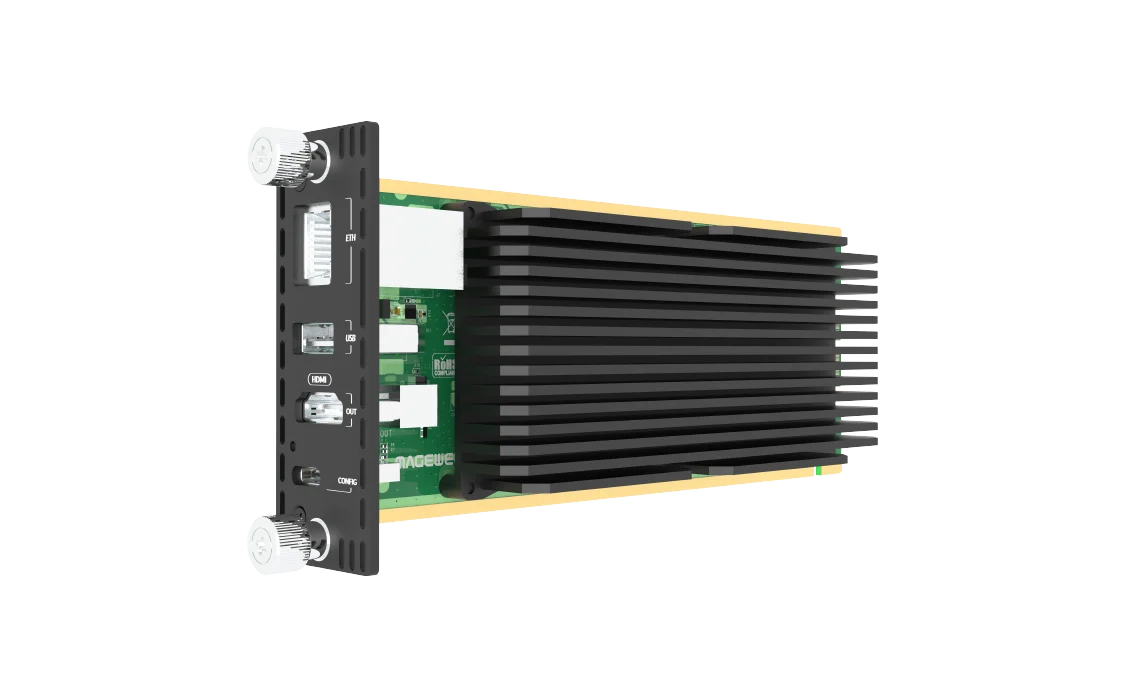

Magewell Pro Convert for NDI to HDMI Module
Show an NDI or IP stream on any HDMI screen or projector in the building, with the decoder in the rack and a 4K display filled by scaling.
- ✓Decodes one network stream of up to 2Kp60 and outputs it over HDMI, ready for a monitor, television or projector
- ✓HDMI 2.0 output, up to 4096×2160 at 60 fps (the stream is scaled up to fit), so you can use the display already on the wall
- ✓Decodes NDI High Bandwidth, NDI HX, HX2 and HX3; supports NDI 6.3
- ✓Also decodes RTSP, HTTP, HLS, RTMP, MPEG-TS over UDP / SRT / RTP and TVU streams, so one module suits studio, signage and remote feeds
- ✓8-channel 48 kHz audio on the HDMI output, so sound reaches the screen on the same cable
- ✓Hot-swappable module for the Modator 2U chassis, which powers it; draws at most 4.3 W
Watch the videos
Plays from YouTube when you press play. All our videos · Setup & guides playlist
Magewell Modator 2U
Up to ten encoder, decoder and streaming modules in any mix, in one 2U rack chassis that powers and monitors them all.
Watch on YouTubeMagewell Modator 2U: Build a Complete Venue System, Job by Job
One 2U rack running a whole venue, built one job at a time with every cable shown on the real module faceplates: sources onto the network, pictures to every screen, a live stream with recording and a four-way control-room multiview. Then hot-swap, 24/7 running, the four ways to control it and what you need.
Watch on YouTubeAbout this product
Once video is on the network, somebody still has to get it onto the screens: the monitors in a gallery, the televisions in a foyer, the projector in a hall. For AV teams with HD sources and a lot of displays, the Pro Convert for NDI to HDMI Module is the NDI decoder that does it from the equipment room. It takes one video stream from the network and turns it into an HDMI signal for a monitor, television, projector or video wall processor. It is a slide-in module for the Magewell Modator 2U chassis, so a rack of them can feed every screen in a building from one place.
HD streams on any screen, including 4K
The module decodes streams of up to 2Kp60, which in practice means sources up to about 1080p at 60 frames per second. Its HDMI socket can output up to 4096×2160 at 60 frames per second. So a 1080p stream can be scaled up to fill a 4K screen, and you can use whatever display is already on the wall. Scaling fits the picture to the display, with the detail of the original stream. For 4K sources, choose the Pro Convert for NDI to HDMI 4K Module, which decodes up to 4Kp60.
What goes in
- From the network. One stream of up to 2Kp60: NDI High Bandwidth, NDI HX, NDI HX2 and NDI HX3, plus H.264 and H.265 streams over RTSP, HTTP, HLS, RTMP (pull or push), MPEG-TS over UDP, SRT or RTP, and TVU. That breadth lets you point it at a camera, a signage stream or a remote feed.
- NDI version. NDI 6.3 is supported, and the module can discover NDI devices across network segments, which helps when sources and screens sit on different parts of the network.
What comes out
- HDMI. One HDMI 2.0 output, up to 4096×2160 at 60 frames per second, 4:4:4, 8-bit, which suits HD and 4K displays alike.
- Audio. 8 channels at 48 kHz, embedded in the HDMI output, so there is no separate audio cable to run to the display.
- Picture controls. Image flip for inverted projector installations, and safe area controls. A ceiling-hung projector shows the picture the right way up without extra hardware.
- USB. A USB Type-A 3.0 port for connecting peripherals.
- Delay. Latency is very low.
How it fits in the chassis
- Powered by the chassis. The module slides into a slot of the Modator 2U chassis, which holds up to ten modules and supplies their power. You look after one rack instead of a decoder and power adapter behind every screen. Order the chassis with it if you are starting a new rack.
- Hot-swappable. It connects to the chassis through its Modator interface and can be swapped while the rack is running, so the other screens stay on.
- Its own network socket. The module has its own Gigabit Ethernet port (RJ45), as well as a USB Type-C port for configuration.
- Power and size. It draws at most 4.3 W, inside the chassis limit of 20 W per slot. It measures 184.4 × 30.0 × 81.5 mm and weighs about 290 g.
Setting it up
- Configure it from wherever is handiest: the touch screen on the Modator chassis, the Web GUI in a browser, or Magewell Control Hub for managing many devices from one place.
- HTTP-based APIs are provided for custom integration, so your control system can drive it.
Where it sits in the range
The same specification is also available in a standalone form. If one or two channels are all you need, see the standalone Pro Convert for NDI to HDMI. The other modules are listed on the Modator range page.
Compatible Software
Related Products
Further Reading
Frequently Asked Questions
It decodes streams of up to 2Kp60. The HDMI output can run at up to 4096×2160 at 60 frames per second, so a lower-resolution stream can be scaled up to fit a 4K display.
Choose the Pro Convert for NDI to HDMI 4K Module, which decodes up to 4Kp60. This module decodes up to 2Kp60 and scales the picture to suit the display.
NDI High Bandwidth, NDI HX, NDI HX2 and NDI HX3, and H.264 or H.265 streams over RTSP, HTTP, HLS, RTMP pull or push, MPEG-TS over UDP, SRT or RTP, and TVU. One module handles NDI on your own network and streams coming in from outside.
One HDMI output. For HDMI and SDI together, choose the Pro Convert for NDI to AIO Module.
A slot in the Modator 2U chassis, which supplies its power. For a freestanding unit of the same specification, see the standalone Pro Convert for NDI to HDMI.
The Pro Convert for NDI to HDMI Module. The chassis powers it, so it is ready to slide in; add your own HDMI and network cables.
From the touch screen of the Modator chassis, from the Web GUI in a browser with nothing to install, or through Magewell Control Hub. HTTP-based APIs are available for custom integration.
