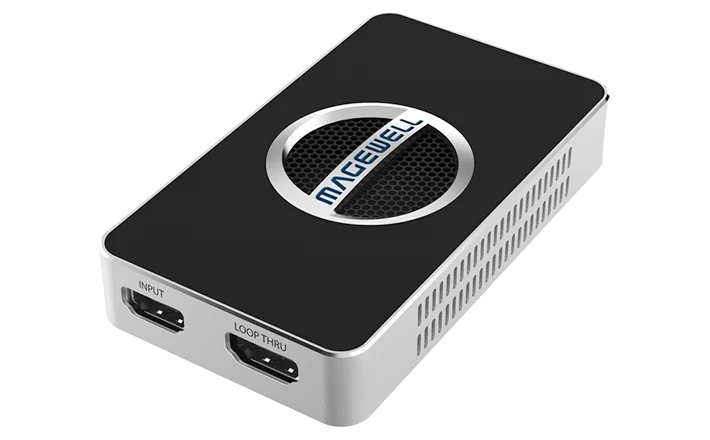

Magewell USB Capture HDMI 4K Plus
Keep your 4K 60 fps picture on the room display while your computer captures it in 4K at up to 30 fps over USB.
- ✓One HDMI 2.0 input up to 4096×2160 at 60 fps in 4:4:4, so you can leave a 4K source at its native output
- ✓HDMI loop-through at the same maximum as the input, so the monitor or projector keeps the full picture with no splitter to buy
- ✓Captures 4096×2160 or 3840×2160 at up to 30 fps, and 1080p at up to 60 fps for smooth HD streaming from the same source
- ✓3.5 mm microphone input and 3.5 mm headphone output, so you can add a voice and listen without an extra audio interface
- ✓Driver-free installation on Windows, Linux, macOS and Chrome OS
- ✓USB 3.0, also compatible with USB 2.0
- ✓Powered from the USB port, about 7 W maximum (1.4 A at 5 V), so there is no power supply to carry
Watch the videos
Plays from YouTube when you press play. All our videos · Setup & guides playlist
Magewell USB Capture setup guide
Which model and USB port, every connection, using it as a camera in OBS, Zoom and Teams, the USB Capture Utility settings that matter, several units on one computer, and common fixes.
Watch on YouTube Planning sheet (PDF)Magewell USB Capture range
Plug-and-play HDMI, SDI, DVI and 4K capture over USB. Your computer sees the device as a webcam, so it works in OBS, vMix, Zoom, Teams and other software with no drivers to install.
Watch on YouTubeAbout this product
When the source is a 4K camera, laptop or media player and the room display has to stay at full quality, you need a capture device that does not force everything down to HD. The USB Capture HDMI 4K Plus is a 4K HDMI to USB capture device. It takes one HDMI signal, up to 4K at 60 frames per second, and passes it to a computer over USB so streaming, recording or conferencing software can use it as a video source. Its HDMI loop-through keeps the display fed, and a microphone input and headphone output are built in.
4K at 60 goes in. 4K at 30 is captured.
The HDMI input and the loop-through both handle up to 4096×2160 at 60 frames per second in full 4:4:4 colour. Capture to the computer at 4K is up to 30 frames per second. The 4K capture formats are 4096×2160 and 3840×2160 at 23.98, 24, 25, 29.97 and 30. So a 4K 60 source is shown at 60 on the loop-through monitor, and the computer receives 4K at up to 30. At 1920×1080 capture goes up to 60 frames per second, and 2560×1440 is captured at 60.
What goes in
- HDMI. One HDMI 2.0 input, which also accepts DVI-D. Custom EDID is supported, which lets you control what resolution the source is told to send. If your workflow depends on HDR, check with us before ordering.
- HDMI audio. Up to eight embedded channels on the input. Up to two channels are passed to the computer.
- Microphone. A 3.5 mm microphone socket carries two channels of audio into the capture, so a presenter or commentator can be recorded with the picture.
What comes out
- Loop-through. One HDMI output that passes the source on to a monitor or projector, up to 4096×2160 at 60 frames per second in 4:4:4. The room display keeps the source at up to 4K 60 while you capture.
- To the computer. Uncompressed video over USB in NV12, I420, YUY2, UYVY, RGB24 or RGB32 format.
- Headphones. A 3.5 mm headphone socket plays either the sound from the HDMI signal or sound from the computer.
Where it earns its place
The device can crop, scale up or down, de-interlace (turn an interlaced picture into full frames), change aspect ratio, convert colour format, convert frame rate, and flip or mirror the picture. This is FPGA-based processing with zero CPU usage. In plain terms, the conversion work is done inside the device, which frees your computer for the software you are running. Scaling makes the picture fit the size you ask for, using the detail in the source, so you can take a 4K source and hand your streaming software 1080p without changing anything at the source.
- Power. It runs from the USB port, with no additional power source required. The maximum draw is about 7 W (1.4 A at 5 V), more than the HDMI Plus (about 4.5 W), so plug it directly into the computer.
- Size. 98.1 × 56.8 × 17 mm, which slips into a laptop bag. A 63 cm USB 3.0 cable is in the box.
Setting it up
- Driver-free. The USB Capture family installs without a driver and detects the input automatically. Connect the source, plug the USB cable into the computer, then pick the device in your software.
- USB port. The connection is USB 3.0. It is compatible with USB 2.0 and USB 3.1 Gen 1 as well.
- Operating systems. Windows 10 and 11 (and Windows Server 2016 to 2025), Linux with kernel 2.6.35 and above on x86, x64 and ARM, Mac OS X 10.9 and above, macOS 10.12 and above, and Chrome OS.
- Software. It works with Zoom Rooms, Microsoft Teams, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio, XSplit and QuickTime Player, plus other DirectShow, V4L2 or AVCaptureSession software.
- Settings and firmware. Magewell’s free USB Capture Utility shows and changes the capture settings and upgrades the firmware.
Where it sits in the range
The USB Capture HDMI Plus also accepts a 4K input but captures at up to 2048×2160, and draws less power. The USB Capture HDMI 4K Pro is the next 4K model up; ask us which one suits your source. The whole family is on the USB Capture range page.
Compatible Software
Related Products
Further Reading
Frequently Asked Questions
Up to 30 fps at 4096×2160 or 3840×2160. It accepts 4K at 60 fps on the HDMI input and passes it to the loop-through at 60, so the display is unaffected. At 1920×1080 capture goes up to 60 fps.
It is an HDMI output that passes the source on to a monitor or projector while the device captures, at up to 4096×2160 and 60 fps in 4:4:4. It saves buying a separate splitter.
A microphone input and a headphone output. The microphone input carries two channels into the capture. The headphone output plays the HDMI sound or sound from the computer, so you can monitor at the device.
Installation is driver-free, with automatic input detection. The optional USB Capture Utility is for checking and changing settings and upgrading firmware.
Yes. OBS Studio, Microsoft Teams and Zoom Rooms are compatible, along with Skype for Business, Google Hangouts, GoToMeeting, VLC, XSplit and QuickTime Player, and other DirectShow, V4L2 or AVCaptureSession software.
Windows 10 and 11 (and Windows Server 2016 to 2025), Linux with kernel 2.6.35 and above on x86, x64 and ARM, Mac OS X 10.9 and above, macOS 10.12 and above, and Chrome OS.
From the USB port, with no additional power source required. The maximum draw is about 7 W (1.4 A at 5 V), so plug it directly into the computer. The box contains a 63 cm USB 3.0 cable.
