Magewell Eco Capture 12G SDI 4K Plus M.2

Eco Capture 12G SDI 4K Plus M.2

Single channel 4Kp60 capture card

  • Captures 1-channel single-link 12G SDI or quad-link 3G SDI + embedded audio
  • High throughout for capture and supports higher frame rates
  • M.2 2280 standard size for small or portable systems

Quote Me

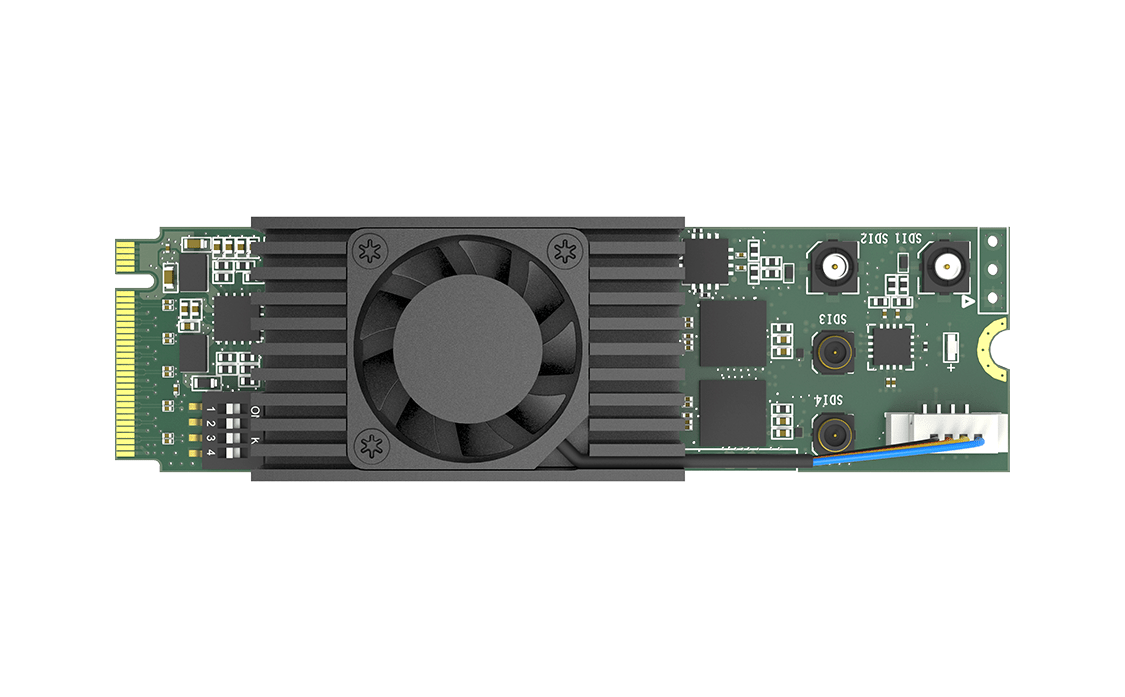

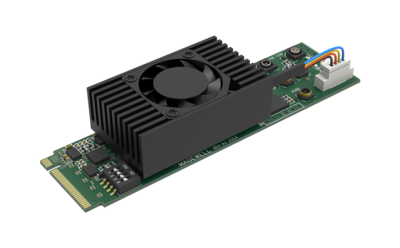

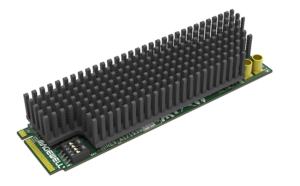

The Magewell Eco Capture 12G SDI 4K Plus M.2


Magewell Eco Capture 12G SDI 4K Plus M.2

The Magewell Eco Capture 12G SDI 4K Plus M.2, Single channel 4Kp60 capture card,

  • Captures 1-channel single-link 12G SDI or quad-link 3G SDI + embedded audio
Ideal for use in small and embedded systems where full-sized PCIe slots are not available. The cost-effective Eco Capture family offers systems integrators and OEM developers a robust capture solution with low power consumption for space-constrained applications. The low-latency Eco Capture devices feature a high-speed PCIe 2.0 bus interface with an M.2 connector and measure just 22x80mm (0.87×3.15in), matching the M.2 2280 size specification.
SDI_4K_spec_4  SDI_4K_spec_4
SDI_4K_spec_4  12G SDI 4K spec

Specifications and Features


Input Interface

  • SD/HD/3G/6G/12G SDI
  • Supports input resolution up to 4096×2160 60fps

Host Interface

  • M.2 2280 Type M (PCIe Gen3 x4)

Video Engine

  • Auto detection of input signal format
  • Color formats conversion
  • Low latency mode
  • SG-DMA transmission mode
  • Multiple replicated capture streams
  • Closed caption (SDK required)



  • 2-year warranty
  • Continuously work for 24hx7
  • LED status indicator
  • Multiple devices on one host
  • On-board dip switch to set card number


Eco Capture 12G SDI 4K Plus M.2 Specifications

document Download

Input Features

  • Max input at 4096×2160 60fps 4:2:2 10-bit
  • Input single SD/HD/3G/6G/12G SDI, dual 6G-SDI to 12G-SDI , or quad 3G-SDI to 12G-SDI
  • SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G (ST 2081) /12G (ST 2082) standard
  • Support for 4K (4096×2160) mode
  • Up to 8-channel 48KHz embedded audio
  • Input SDI signals transmitted up to 75m for 12G-SDI, 80m for 6G-SDI, 200m for 3G-SDI, 430m for SD signal
  • Support for Closed Caption via SDK

Process and Capture Features

  • Video processing pipelines with ~700Mpixels/s processing bandwidth
  • ~2400MB/s per channel DMA bandwidth in PCIe 3.x system
  • ~1600MB/s per channel DMA bandwidth in PCIe 2.x system
  • ~800MB/s per channel DMA bandwidth in PCIe 1.x system
  • Capture videos up to 4096×2160, frame rates up to 240fps. Typical outputs include (actual capture frame rate can be limited by the PCIe bandwidth and internal working frequency.):
    • 4096x2160p 5/10/15/25/29.97/30/50/60
    • 3840x2160p 5/10/15/25/29.97/30/50/60
    • 1920x1080p 5/10/15/25/29.97/30/50/60/120
    • 1280x720p 5/10/15/25/29.97/30/50/60/120 etc.
  • Output NV12/I420/YUYV/UYVY/RGB24/RGB32 videos
  • Support custom output formats using Magewell Capture SDK
  • Support custom EDID, up/down scaling, de-interlacing, color space conversion and frame rate conversion
  • Multiple capture streams, unlimited capture streams for any one input channel
  • Support timestamp & A/V synchronization
    • Hardware based 100ns high resolution clock
    • Audio frames (192 audio samples) & video frames are stamped with hardware clock
    • Hardware clock can be synchronized across cards (via SDK)
  • Support extraction of SMPTE timecode using SDK
  • Support extracting ANC metadata for custom DID/SDID
  • Support firmware upgrade


  • The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
  • Windows DirectShow/DirectKS/Wave API/DirectSound/WASAPI
  • Linux V4L2/ALSA

Supported OS

  • Windows 10/11/Server 2016 (x86 & x64) and above
  • Linux (x86, x64 & ARM architecture)

Input Interfaces

  • 2 x SD/HD/3G-SDI
  • 2 x SD/HD/3G/6G/12G-SDI

Host Interfaces

  • M.2 2280 Type M (PCIe Gen3 x4)

Supported Softwares

  • VLC
  • VirtualDub
  • OBS
  • XSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Adobe Flash Media Encoder
  • Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software

LED Indicator

  • Status LEDs indicate the working state of each channel:
    • Pulsing slowly: input signal unlocked
    • On: input signal locked
    • Double blinks: memory failed or FPGA configuration failed
    • Off: firmware or power supply abnormal

Form Factor

  • M.2 2280 standard size (22 x 80 mm)


  • 2 x 3G BNC (Part number: ELE00018)
  • 2 x 3G H.FL75–2LPG–084N2-A–140 (14cm) (Part number: ELE00019)
  • 2 x 12G DFL75–2LPP–084N9D-A–140 (14cm) (Part number: ACC10020)
  • 2 x 12G BNC (Part number: ACC10021)

Power Consumption

  • Max current at 3.3V: ~ 1.96 A
  • Max power consumption: ~ 6.5 W

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing



acc acc acc acc

2 x 3G BNC

Part number:

2 x 3G SDI Cable

Part number:

2 x 12G SDI Cable

Part number:

2 x 12G BNC

Part number:
