Pro Convert SDI 4K Plus

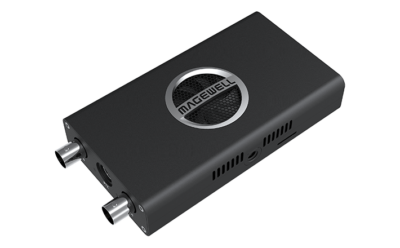

 Magewell Pro Convert SDI 4K Plus encoder converts SDI input signals up to 4K Ultra HD into full-bandwidth NDI streams with extremely low latency, enabling users to effortlessly connect SDI-equipped sources to NDI-enabled media networks, devices and applications.

  • Convert one channel of SD/3G/2K/6G-SDI signal with embedded audio to NDI® stream
  • Loop-through one channel of SD/3G/2K/6G-SDI signal with embedded audio
  • 1 x RJ45 + PoE NDI Output.
  • 6G/3G/HD/SD-SDI Supported.
  • Input up to DCI 4K30 10-Bit 4:2:2 Video.

Magewell PN: 64030 US; 64032 EU; 64033 UK;
64034 AU; 64035 KR; 64036 JP

The device is supplied with different options of power adapters.

Description

The plug-and-play Magewell Pro Convert SDI 4K Plus supports video up to 4K at 30 frames per second with embedded audio over a 6Gbps SDI interface. Automatic input format detection and DHCP-based network configuration eliminate the need for manual setup. Users can simply connect the device, and the encoder will convert or encode the source video automatically at its native resolution and frame rate. An SDI loop-through connection allows the input signal to be sent simultaneously to additional displays or equipment without external splitters or routers, enabling sources to be easily used in new IP workflows without disrupting the customer’s existing traditional video infrastructure.

The Magewell Pro Convert SDI 4K Plus offers a wide range of valuable features for live production use. The compact device features a 1/4″-20 thread for use with standard camera-mounting accessories, while preview and program tally lights provide visual indication when the output NDI stream is being used by another application. A PTZ camera can be connected to the converter and controlled via NDI, while power for the unit can be supplied via Power over Ethernet (PoE) or the included power adapter.

Magewell Pro Convert NDI to HDMI 4K

The 4K SDI model is the second offering in the Pro Convert product line. It joins the recently-introduced Pro Convert HDMI 4K Plus, which can convert HDMI inputs up to 4K at 60fps. Additional Pro Convert models, including 1080p60 configurations for users not requiring 4K resolution, are also planned.

Interface

Pro Convert SDI Plus

For users wanting greater control of the conversion process and the rich features of the Pro Convert SDI 4K Plus device, an intuitive browser-based interface provides access to status monitoring, advanced settings and FPGA-based video processing. Functions such as up/down/cross-conversion, de-interlacing and image adjustments are performed directly within the hardware, reducing unnecessary network bandwidth and CPU usage to maximize resource availability for other applications in the NDI workflow.

About NDI® –  (Network Device Interface) software is in the hands of millions of customers worldwide and allows multiple video systems to identify and communicate with one another over IP. NDI can encode, transmit and receive many streams of high quality, low latency, frame-accurate video and audio in real time. This benefits any network-connected video device, including cameras, converters, video mixers, graphics systems, capture cards, and many other production devices.

Further resources

Magewell Bridge for NDI® Select
NewTek NDI® Tools Select
Compatible Software Select
User Manual for Pro Convert Encoders Download
User Manual PRO Convert Decoders Download
Short FAQs about Pro Convert Download
Description of Mini-DIN8 Breakout Download
Pro Convert Product Selector & Downloads Select
InterfaceNDI EncodingFirmwareOthers
Input interfaces
• BNC x1
• Support up to 4096×2160p30

Loop-through Interface
• BNC x1
• Support up to 4096×2160p30

USB Interface
• USB 2.0 for power and data transfer

Network Interface
• 10/100/1000 Mbps Ethernet
• Support IEEE 802.3af PoE

Power Interface
• DC+5V

PTZ Interface
• Mini-DIN-8
Up to 4Kp60 4:2:2Upgradable firmwareLED Indicators

Tally Lights

2-year Warranty

SD Card Slot

1/4-20 Mounting Hole

Specifications

Supported Web Browser Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above
Supported Software
OBS
XSplit
vMix
VidBlasterX
Wirecast
streamstar SW
mimoLive
Any other NewTek NDI-enabled encoding or streaming software
Input Interfaces

BNC
• SD/HD/3G/6G SDI
Loop-through Interface

BNC
• SD/HD/3G/6G SDI
Storage InterfaceSD Card (functions to be developed)
PTZ + TALLY Control
Mini-DIN–8 jack
Screw Mounting Hole
¼–20 mounting hole
Network Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface

USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM
Input feature
Support for up to 4096x2160 30fps input resolution
SDI Specific Features
Integrated cable equalizer extending the cable length as follows:
• up to 180m for SD-SDI signals
• up to 180m for HD-SDI signals
• up to 150m for 3G-SDI signals
• up to 100m for 6G-SDI signals
Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS/6G (SMPTE 2081) standards
Support for 2K (2048x1080) & 4K (4096x2160) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 16 (mono) audio channels
Support for extraction of audio formation information & channel status data
Limited support of 3Gb-DS: only the first stream can be captured
Limited support for capture of the first link of dual link interfaces:
• YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
• YCbCr 4:4:4 10-bit: captured as 4:2:2
• RGB 4:4:4: R/B sub-sampled
NDI® Output Format
Support for 4:2:2 8-bit output
Support for up to 4096x2160 60fps output resolution
Support for NDI 4.1
Video Processing FeaturesSupport for capture resolutions up to 4096x2160
Video brightness, contrast, saturation, hue adjustment
Video de-interlacing
• Top field only
• Bottom field only
Video aspect ratio conversion
• Auto or manual selection of output aspect ratio
Video color format conversion
• Auto or manual selection of input color format & quantization range
• Auto or manual selection of output color format, quantization range & saturation range
• Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
• Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
• Support for Limited or Full quantization range
• Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video mirror flip
NDI® Source Name

Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.
Support for setting board-index, from 0 to F, through the on-board rotary switch
Firmware Upgrade
Support for manual update using Web UI
LED Indicator
Status LEDs indicate the working state of the device:
• Power supply: on/off
• Tally: preview/program
• Input signal: input signal locked/unlocked
• Loopthrough signal: loopthrough connected and signal detected/undetected
Form Factor117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Accessories
USB 2.0 A to B Cable
5V/2.1A power adaptor
Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)
L-bracket
LED matrix panel (optional)
Power Consumption
5V max current: ~1.5A
Max power consumption: ~7W
Working Environment
Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

Accessories

Pro Convert SDI 4K Plus Pro Convert SDI 4K Plus Pro Convert SDI 4K Plus Pro Convert SDI 4K Plus
Power Adapter (US/EU/UK/AU/JP)x1
Part number: 98017
Power Adapter (KR) x1
Part number: 98015
USB Type A to Type B cable x1
Part number: 90065
Mini DIN8 to DIN8+DB9 cable x1
Part number: 90110
Pro Convert SDI 4K Plus Pro Convert SDI 4K Plus
Tally Light x1
Part number: 99090
L bracket x1
Part number: 92240



Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.

Downloads

Magewell Bridge for NDI® Select
NewTek NDI® Tools Select
Compatible Software Select
User Manual for Pro Convert Encoders Download
User Manual PRO Convert Decoders Download
Short FAQs about Pro Convert Download
Description of Mini-DIN8 Breakout Download

Firmware

V1.0.588

39.1 MB | 2020.02.20

Download



Descriptions:

a. Add “Full frame rate for low bandwidth” function, which supports outputting video with full frame rate in low-bandwidth condition.

b. Add “Audio Reference Level” function, which supports adjusting audio modes.

c. Add “Discovery Server” function, which supports discovering NDI devices across network segments.

d. Add “UDP Unicast” function, which supports retrieving NDI streams with UDP mode.

e. Add new PTZ control protocols: Visca UDP, Pelco-D, and Pelco-P.

f. Optimize the layout of the Web UI.

g. Fix some bugs.
