Pro Convert HDMI TX

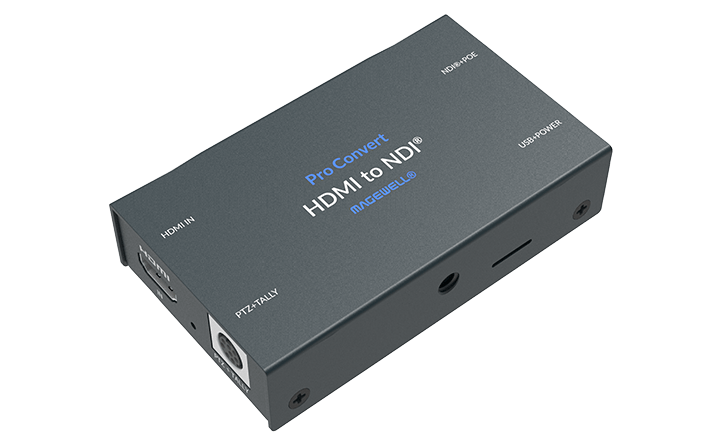

Magewell Pro Convert HDMI TX NDI Encoder allows you to convert an HDMI signal with embedded audio to an NDI stream. It supports resolutions up to 2048 x 1200 at 60p on both input and NDI output. The device can be powered via an included power adapter or over PoE using the NDI port

  • Support for NDI.
  • Support for encoding videos and embedded audio.
  • Support for PoE (Power over Ethernet).
  • Support for plug-and-play.
  • Support for Ethernet over USB.
  • Support for connection and management of PTZ camera.
  • Support for web-based UI remote control.

Magewell PN: 64050 US; 64052 EU; 64053 UK;
64054 AU; 64055 KR; 64056 JP

The device is supplied with different options of power adapters.


Quote Me

Description

The Magewell Pro Convert TX NDI encoders lower the cost of transitioning into IP-based video production and AV workflows. Magewell’s award-winning Pro Convert family of hardware converters enables users and systems integrators bring HDMI or SDI video signals into and out of AV-over-IP workflows using NewTek’s popular NDI technology. While the flagship Pro Convert Plus models include signal loop-through connections and can be flexibly switched between encoding and decoding modes, Pro Convert TX configurations offer a lower-cost entry point for customers needing only a low-latency NDI encoder to transform baseband sources into high-quality NDI streams.

Pro Convert family of NDI encoders, built on NewTek’s extremely popular NDI media-over-IP technology, help users reliably bring traditional video signals into IP-based live production and AV infrastructures. Available in 4K and 1080p60 configurations with a choice of input interfaces, the converters enable users to easily and cost-effectively connect their existing equipment into NDIenabled networks. The ultra-compact Pro Convert devices are ideal for both in-studio and portable field use. Value-added features for live production applications include a 1/4″-20 thread for standard camera-mounting accessories, preview and
program tally lights, and NDI-based PTZ camera control. The units can be powered by the included AC adapter or via Power over Ethernet (PoE) for further deployment simplicity.

Magewell Pro Convert hdmi tx

Pro Convert TX devices still include the Pro Convert family’s popular value-added features including Power over Ethernet (PoE) support; program and preview tally lights; NDI-based PTZ camera control; and a standard 1/4″-20 thread for camera mounting. Automatic input format detection and network configuration enable plug-and-play ease of use, while an intuitive browser-based interface provides access to status monitoring and advanced conversion settings such as FPGA-based video processing. The Pro Convert HDMI TX supports inputs up to 2048×1200 via its HDMI 1.4 interface, while the Pro Convert SDI TX handles sources up to 1080p60 over 3G-SDI

INTERFACE

Pro Convert HDMI TX

The Magewell Pro Convert HDMI TX enables users can control advanced settings, select between NDI source streams and monitor the status of the decoder through a browser-based interface; wired or wireless keyboard or mouse; or using two on-device buttons that overlay an intuitive menu on the HDMI output. The device supports eight channels of audio in the NDI stream, with user control of audio gain, sample rate, channel selection and on-screen VU metering. Additional convenience and integration settings include image flip for inverted projector installations; safe area controls for ensuring the display of important content; and remote control of PTZ source cameras.

About NDI® –  (Network Device Interface) software is in the hands of millions of customers worldwide and allows multiple video systems to identify and communicate with one another over IP. NDI can encode, transmit and receive many streams of high quality, low latency, frame-accurate video and audio in real time. This benefits any network-connected video device, including cameras, converters, video mixers, graphics systems, capture cards, and many other production devices.

Further resources

Magewell Bridge for NDI® Select
NewTek NDI® Tools Select
Compatible Software Select
User Manual for Pro Convert Encoders Download
User Manual PRO Convert Decoders Download
Short FAQs about Pro Convert Download
Description of Mini-DIN8 Breakout Download
Pro Convert Product Selector & Downloads Select



InterfaceNDI EncodingFirmwareOthers
Input interfaces
• HDMI x1
• Support up to 2048x1200p60

USB Interface
• USB 2.0 for power and data transfer

Network Interface
• 10/100/1000 Mbps Ethernet
• Support IEEE 802.3af PoE

Power Interface
• DC+5V

PTZ Interface
• Mini-DIN-8
Up to 2048x1200 60fpsUpgradable firmwareLED Indicators

Tally Lights

2-year Warranty

SD Card Slot

1/4-20 Mounting Hole

Specifications

Supported Web Browser (tested)Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above
Supported Software (tested)
OBS
XSplit
vMix
VidBlasterX
Wirecast
streamstar SW
mimoLive
Any other NewTek NDI-enabled encoding or streaming software
Input Interfaces

HDMI
• DVI-D 1.0
• HDMI 1.4
Storage InterfaceSD Card (functions to be developed)
PTZ + TALLY Control
Mini-DIN–8 jack
Mounting Hole
¼–20 mounting hole
Network Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface

USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM
Input feature
Support input video resolutions at up to 2048x1200
HDMI Specific Features
165MHz HDMI receiver
Adaptive HDMI equalizer support for cables lengths up to 30M
Support for customized EDID
Support for extraction of AVI/Audio InfoFrames
Full colorimetry support
Support up to 2048x1200 4:4:4/4:2:2 60fps input signals
Support 8 input and 2 output IEC60958 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
NDI® Output Format
Support for 4:2:2 8-bit output
Support for up to 2048x1200 60fps
Support for NDI 4.1
Video Processing FeaturesVideo processing pipelines with 160 Mpixels/s
Video brightness, contrast, saturation, hue adjustment
Video de-interlacing
• Top field only
• Bottom field only
Video aspect ratio conversion
• Auto or manual selection of output aspect ratio
Video color format conversion
• Auto or manual selection of input color format & quantization range
• Auto or manual selection of output color format, quantization range & saturation range
• Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
• Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
• Support for Limited or Full quantization range
• Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video mirror flip
NDI® Source Name

Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.
Support for setting board-index, from 0 to F, through on-board rotary switch
Firmware Upgrade
Support for manual update using Web UI
LED Indicator
Status LEDs indicate:
• the state of power supply: on/off
• Input signal indicator: locked/unlocked
Form Factor100.9smm (L) x 60.2mm (W) x 23.3mm (H)
Accessories
USB 2.0 A to B Cable
5V/2.1A power adaptor
Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)
Tally lights
L-bracket
LED matrix panel (optional)
Power Consumption
5V max current: ~1.5A
Max power consumption: ~6W
Working Environment
Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

Accessories

Pro Convert HDMI TX Pro Convert HDMI TX Pro Convert HDMI TX Pro Convert HDMI TX
Power Adapter (US/EU/UK/AU/JP)x1
Part number: 98017
Power Adapter (KR) x1
Part number: 98015
USB Type A to Type B cable x1
Part number: 90065
Mini DIN8 to DIN8+DB9 cable x1
Part number: 90110
Pro Convert HDMI TX Pro Convert HDMI TX
Tally Light x1
Part number: 99090
L bracket x1
Part number: 92240



Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.

Downloads

Magewell Bridge for NDI® Select
NewTek NDI® Tools Select
Compatible Software Select
User Manual for Pro Convert Encoders Download
User Manual PRO Convert Decoders Download
Short FAQs about Pro Convert Download
Description of Mini-DIN8 Breakout Download

Firmware

V1.0.588

39.1 MB | 2020.02.20

Download



Descriptions:

a. Add “Full frame rate for low bandwidth” function, which supports outputting video with full frame rate in low-bandwidth condition.

b. Add “Audio Reference Level” function, which supports adjusting audio modes.

c. Add “Discovery Server” function, which supports discovering NDI devices across network segments.

d. Add “UDP Unicast” function, which supports retrieving NDI streams with UDP mode.

e. Add new PTZ control protocols: Visca UDP, Pelco-D, and Pelco-P.

f. Optimize the layout of the Web UI.

g. Fix some bugs.
