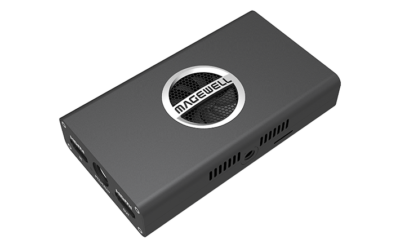

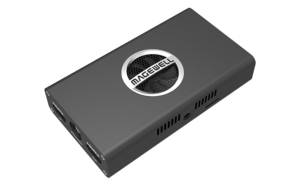

Pro Convert HDMI 4K Plus

Magewell Pro Convert HDMI 4K Plus encoder converts HDMI 2.0 signals into full-bandwidth NDI streams with extremely low latency and is truly plug-and play

  • One HDMI input, one HDMI loop-through output with embedded audio
  • Convert one HDMI signal with 8 channels of embedded audio to an NDI stream
  • Supports up to 4K60 input

Magewell PN: 64010 US; 64012 EU; 64013 UK; 64014 AU; 64015 KR; 64016 JP

The device is supplied with different options of power adapters.


Quote Me

Description

Magewell Pro Convert HDMI 4K Plus encoder converts HDMI 2.0 signals into full-bandwidth NDI streams with extremely low latency and is truly plug-and play, with automatic input signal format detection and DHCP-based network configuration eliminating the need for manual setup. Source video is converted at its native resolution and frame rate by default, while a browser-based interface offers users control of FPGA-based up/down/cross-conversion, de-interlacing, image adjustments and other video processing. Performing these functions within the Pro Convert HDMI 4K Plus hardware can reduce network bandwidth usage and processing requirements for subsequent tools in the production workflow.

Supporting the growing adoption of 4K video in professional production workflows, the Pro Convert HDMI 4K Plus transforms sources up to 4K Ultra HD at full 60 frames per second. Measuring just 117.5mm by 66.7mm (4.63” by 2.63”) and 23.4mm (0.92”) thick, the exceptionally compact and energy-efficient device can be powered over its Ethernet connection (PoE) or the included power adapter. The Pro Convert HDMI 4K Plus can make HDMI input signals from any type of device available on a network as an NDI source, and offers value-added features for camera-mounted use including tally lights and NDI-based PTZ camera control

Magewell Pro Convert NDI to HDMI 4K

The Magewell Pro Convert HDMI 4K Plus IP encoder hardware provides a standalone, plug-and-play on-ramp from HDMI sources to NDI-based production networks, while the Magewell Bridge software for NDI enables users of Magewell’s popular capture devices to convert one or more channels of source video into live NDI streams

Interface

Pro Convert HDMI plus

For existing users of Magewell products or customers who prefer a software based conversion solution, Magewell Bridge for NDI allows video and audio from any Magewell capture device to appear as a live source to any other NDI-enabled software and systems on the network. Running on the Windows operating system, the software is compatible with Magewell’s USB Capture and USB Capture Plus external devices, Pro Capture PCIe cards and Eco Capture M.2 hardware.

The Magewell Bridge software supports all resolutions and frame rates available through the associated capture device – including Ultra HD video with Magewell’s 4K capture models – plus up to eight channels of audio. The software can convert multiple input channels to NDI simultaneously when used with multi-channel capture card models or several Magewell capture devices in the same computer.

About NDI® –  (Network Device Interface) software is in the hands of millions of customers worldwide and allows multiple video systems to identify and communicate with one another over IP. NDI can encode, transmit and receive many streams of high quality, low latency, frame-accurate video and audio in real time. This benefits any network-connected video device, including cameras, converters, video mixers, graphics systems, capture cards, and many other production devices.

Further resources

Magewell Bridge for NDI® Select
NewTek NDI® Tools Select
Compatible Software Select
User Manual for Pro Convert Encoders Download
User Manual PRO Convert Decoders Download
Short FAQs about Pro Convert Download
Description of Mini-DIN8 Breakout Download
Pro Convert Product Selector & Downloads Select



InterfaceNDI EncodingFirmwareNDI® Decoding FeaturesOthers
Input interfaces
• HDMI x1
• Support up to 4096×2160p60

Loop-through Interface
• HDMI x1M
• Support up to 4096×2160p60

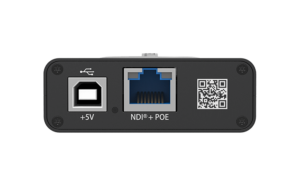

USB Interface
• USB 2.0 for power and data transfer

Network Interface
• 10/100/1000 Mbps Ethernet
• Support IEEE 802.3af PoE

Power Interface
• DC+5V

PTZ Interface
• Mini-DIN-8
Up to 4Kp60 4:2:2Upgradable firmware• Support for decoding full NDI® and NDI HX in NDI 4.x

• Support for decoding streams of NDI, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP

• Support for decoding videos in H.264 and H.265 format
LED Indicators

Tally Lights

2-year Warranty

SD Card Slot

1/4-20 Mounting Hole

Specifications

Supported Web Browser (tested)Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above
Supported Software (tested)
OBS
XSplit
vMix
VidBlasterX
Wirecast
streamstar SW
mimoLive
Any other NewTek NDI-enabled encoding or streaming software
Input Interfaces

HDMI
• DVI-D 1.0
• HDMI 1.4
• HDMI 2.0
Loop-through Interface

HDMI
• DVI-D 1.0
• HDMI 1.4
• HDMI 2.0
Storage InterfaceSD Card (functions to be developed)
PTZ + TALLY Control
Mini-DIN–8 jack
Screw Mounting Hole
¼–20 mounting hole
Network Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface

USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM
Input feature
Support for input video resolutions up to 4:4:4 8-bit 4096x2160 60fps
HDMI Specific Features
600MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio InfoFrames
Full colorimetry support
Support for up to 4096x2160 4:4:4 60fps input signals
Support for 8 channel IEC60958 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
NDI® Output Format
Support for 4:2:2 8-bit output
Support for up to 4096x2160 60fps or 1920x1080 240fps
Support for NDI 4.1
Video Processing FeaturesVideo processing pipelines with 4096x2160 60fps
Video brightness, contrast, saturation, hue adjustment
Video de-interlacing
• Top field only
• Bottom field only
Video aspect ratio conversion
• Auto or manual selection of output aspect ratio
Video color format conversion
• Auto or manual selection of input color format & quantization range
• Auto or manual selection of output color format, quantization range & saturation range
• Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
• Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
• Support for Limited or Full quantization range
• Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video mirror flip
NDI® Source Name

Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.
Support for setting board-index, from 0 to F, through on-board rotary switch
Firmware Upgrade
Support for manual update using Web UI
LED Indicator
Status LEDs indicate:
• the state of power supply: on/off
• Tally: preview/program
• the state of input signal: locked/unlocked
• the state of loopthrough signal: loopthrough connected and signal detected/undetected
Form Factor117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Accessories
USB 2.0 A to B Cable
5V/2.1A power adaptor
Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)
L-bracket
LED matrix panel (optional)
Power Consumption
5V max current: ~2A
Max power consumption: ~10W
Working Environment
Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

Accessories

Pro Convert HDMI 4K Plus Pro Convert HDMI 4K Plus Pro Convert HDMI 4K Plus Pro Convert HDMI 4K Plus
Power Adapter (US/EU/UK/AU/JP)x1
Part number: 98017
Power Adapter (KR) x1
Part number: 98015
USB Type A to Type B cable x1
Part number: 90065
Mini DIN8 to DIN8+DB9 cable x1
Part number: 90110
Pro Convert HDMI 4K Plus Pro Convert HDMI 4K Plus
Tally Light x1
Part number: 99090
L bracket x1
Part number: 92240



Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.

Downloads

Magewell Bridge for NDI® Select
NewTek NDI® Tools Select
Compatible Software Select
User Manual for Pro Convert Encoders Download
User Manual PRO Convert Decoders Download
Short FAQs about Pro Convert Download
Description of Mini-DIN8 Breakout Download

Firmware

V1.0.588

39.1 MB | 2020.02.20

Download



Descriptions:

a. Add “Full frame rate for low bandwidth” function, which supports outputting video with full frame rate in low-bandwidth condition.

b. Add “Audio Reference Level” function, which supports adjusting audio modes.

c. Add “Discovery Server” function, which supports discovering NDI devices across network segments.

d. Add “UDP Unicast” function, which supports retrieving NDI streams with UDP mode.

e. Add new PTZ control protocols: Visca UDP, Pelco-D, and Pelco-P.

f. Optimize the layout of the Web UI.

g. Fix some bugs.
