Magewell USB Capture SDI Plus

Magewell PN: 32050

One Channel 2K Capture Device

  • Capture SD/HD/3G/ 2K SDI + embedded audio
  • Loop-through SD/HD/3G/2K SDI
  • Audio input via Line in
  • Extract SDI embedded audio and output via Line out
  • SDI to USB Capture

Quote Me

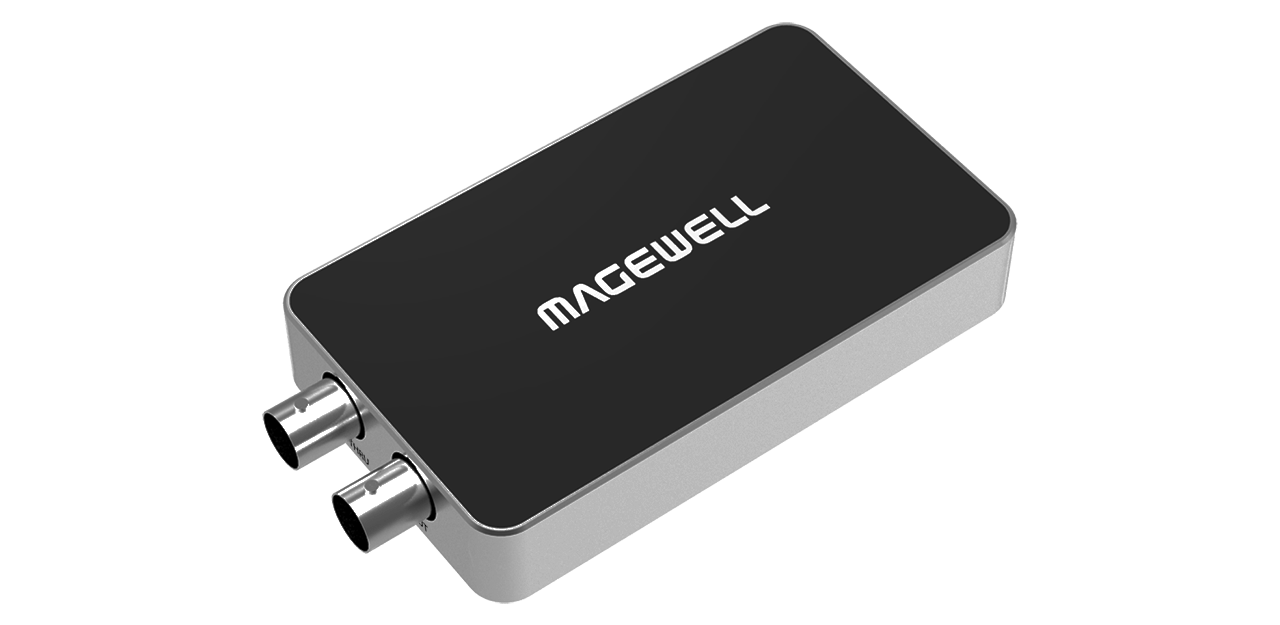

The Magewell USB Capture SDI Plus is a one-channel 2K capture device that interfaces with your computer via USB 3.0. The USB to SDI capture features loop-through BNC input/output that allows you to see your video on a downstream device, while you are capturing it into your computer.

The Magewell USB Capture SDI Plus is a one-channel 2K capture device that interfaces with your computer via USB 3.0. The USB capture features loop-through BNC input/output that allows you to see your video on a downstream device, while you are capturing it into your computer.

The Magewell USB Capture SDI Plus captures SD /HD /3G-A /3G-B/2K SDI signals from a wide range of devices. Devices such as HD cameras (professional /surveillance /video conference), video switchers and so on. Max input resolution and frame rate is 2048×1080. The USB capture can deliver the captured video to the computer at up to 2048×1080 and can be used to capture a video output device or the desktop of the streaming computer.

magewell usb capture hdmi plus The Magewell USB Capture SDI has similar functionality for professional broadcast and production workflows, capturing video up to 1080p60 with embedded audio via 3Gbps SDI. SDI loop-through passes the input to other production and display devices without the need to buy into extra routing equipment. Line-level, analogue input and output connections enable capture and monitoring of stereo audio. The SDI Plus models use Magewell’s hardware-based video processing. This is for deinterlacing, up/down conversion and image controls. So that the computer’s CPU is not involved and remains free for third-party software. Users have USB Capture Plus Utility software to control their processing settings and access detailed status information.

USB Capture Downloads
USB SDI Capture FaQs
Compatible Software


Supported OSWindows
• Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture)
• Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64)
• CentOS 6.5/7 (x86 & x64)
• Fedora 25/26/27 (x86 & x64)
• Red hat 6.5 and above (x86 & x64)
• Other Linux OS with kernel version 2.6.35 and above
• OS X 10.9/10.10/10.11
• macOS 10.12/10.13
Chrome OS
Recommended OS (tested)Windows
• Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
• Ubuntu 12.04/14.04/16.04 (x86 & x64)
• Ubuntu 17.04/17.10 (x64)
• CentOS 6.5/7.2 (x86 & x64)
• Fedora 25/26 (x64)
• Red hat 6.5 (x86 & x64)
• OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
• macOS 10.12/10.13.2/10.13.3
Supported APIsWindows
• DirectShow
• Wave API/DirectSound/WASAPI
• V4L2
OS X/macOS
• QuickTime
• AV Foundation
Supported SoftwareVLC
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software

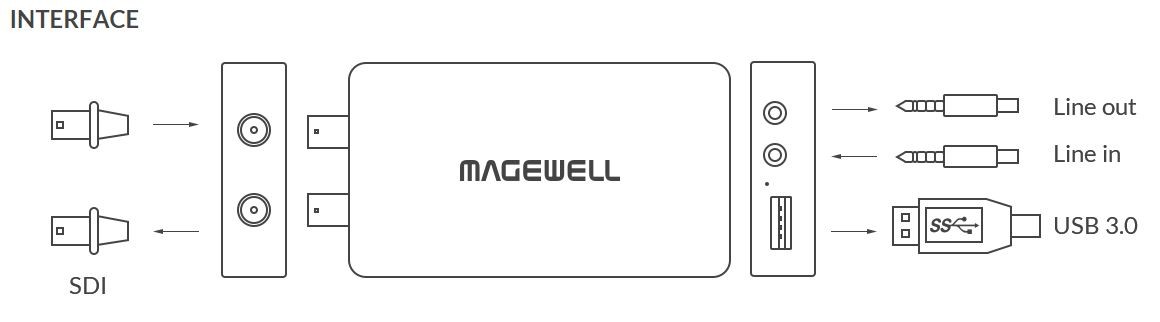

Input InterfacesBNC
3.5mm audio jack)
• unbalanced Line In interface
Host InterfaceUSB 3.0
• compatible with USB 2.0
• compatible with USB 3.1 Gen 1

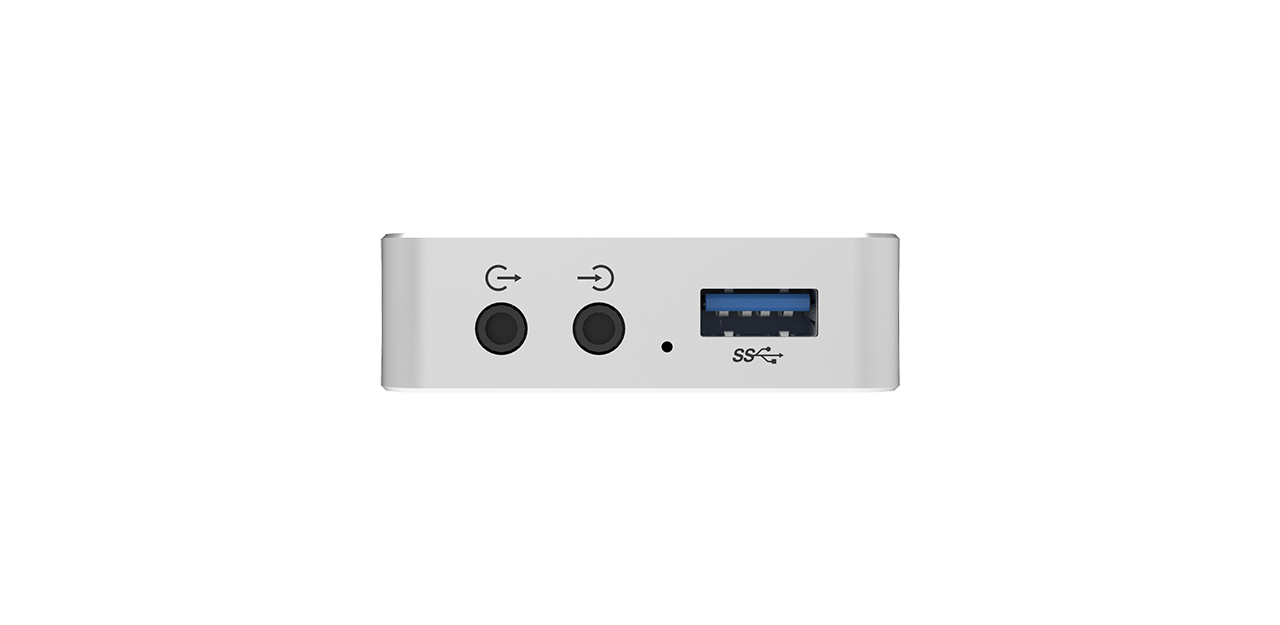

Output Interface3.5mm audio jack
• unbalanced Line Out interface

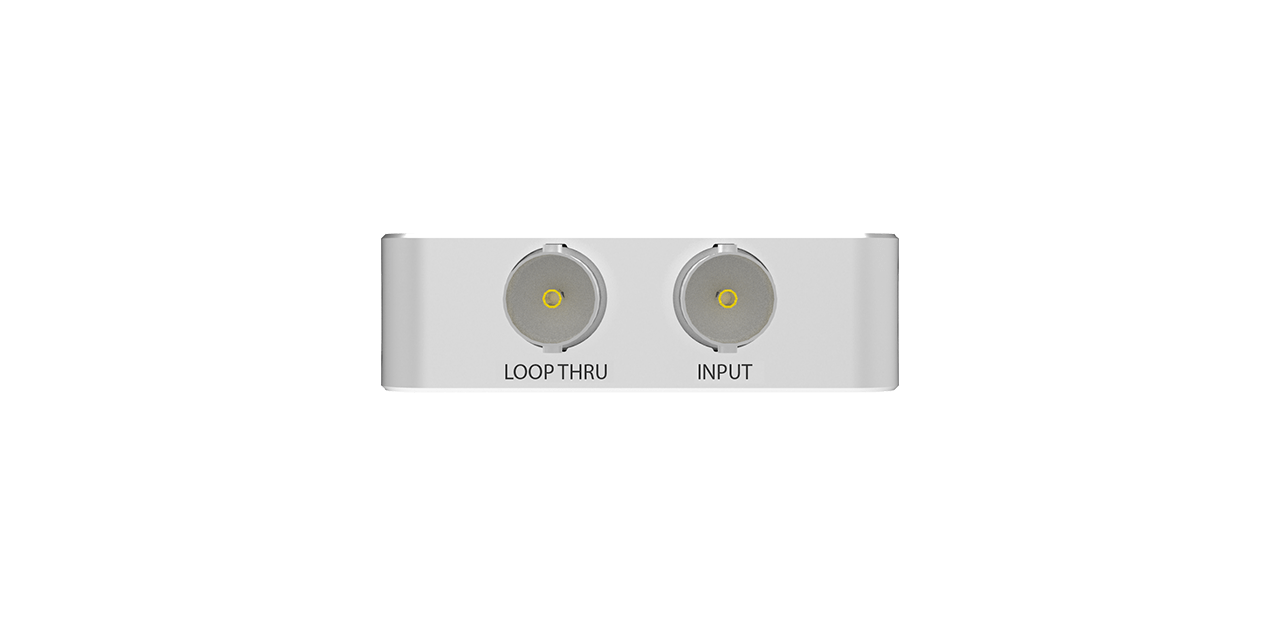

Loop-through InterfaceBNC
Input featuresSupport for up to 2048x1080 input resolution
SDI Specific Features
Integrated cable equalizer supporting cable lengths up to 140M for 3G-SDI signals
Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
Support for 2K (2048x1080) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 2 (mono) audio channels at 48KHz
Support for extraction of audio formation information & channel status data
Limited support of 3Gb-DS: only the first stream can be captured
Limited support for capture of the first link of dual link interfaces:
• YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
• YCbCr 4:4:4 10-bit: captured as 4:2:2
• RGB 4:4:4: R/B sub-sampled
Analog Audio FeaturesExtract the embedded SDI audio and output via 3.5mm unbalanced Line out
Capture analog audio via 3.5 mm unbalanced Line In interface
Video Capture formatSupport for capture resolutions up to 2048x1080
Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB 3.0 controller are as follows.)
• 1920x1080 YUY2 (up to 70fps)
• 1920x1080 RGB24 (up to 60fps)
Support for YUY2 & UYVY 4:2:2 8-bit
Support for RGB24 & RGB32 4:4:4 8-bit
The default capture format is YUY2. More capture formats can be set using USB Capture Utility.
Video Processing FeaturesVideo processing pipelines with 160 Mpixels/s processing bandwidth
Video cropping
Video scaling
Video de-interlacing
• Weave
• Blend top & bottom field
• Top field only
• Bottom field only
Video aspect ratio conversion
• Auto or manual selection of input aspect ratio
• Auto or manual selection of capture aspect ratio
• Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
• Auto or manual selection of input color format & quantization range
• Auto or manual selection of capture color format, quantization range & saturation range
• Support for RGB, YCbCr 601, YCbCr 709 color formats
• Support for Limited or Full quantization range
• Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Vertical flip and mirror
Multiple devices on one computerSupport for connecting multiple USB devices to one system
Support for setting the device serial number as the device name shown in the system using USB Capture Utility
SDKThe USB Capture SDK provide functions including signal status extraction, capture configuration, etc.
Firmware UpgradeMultiple devices in one system can be upgraded simultaneously
LED IndicatorStatus LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor110.7mm (L) x 56.8mm (W) x 17mm (H)
AccessoriesUSB 3.0 cable
Power Consumption5V max current: ~0.5 A
max power consumption: ~2.5 W
Working Environment
Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing



USB Capture Utility V3

USB Capture Utility V3

Utility V3 is a free software for USB Capture and USB Capture Plus devices. Users can easily check and set the capture-related parameters, upgrade the firmware by themselves and export info needed for technical support with the help of the Utility.

Download the Utility for USB Capture Family and for USB Capture Plus Family.


Features Include;

• Capture Format Setting

• Audio Volumn Control

• Mirror and Flip

• EDID Editing and Importing

• Firmware Update

• Export Diagnose Report

Magewell USB Capture SDI Plus

For full description, visit the full page; USB Capture Utility V3 Utility V3 also provide functions such as cropping, deinterlacing, device name setting, aspect ratio conversion, timing adjustment, status image setting, etc. For detailed introduction of the settings and functions, please check the Utility V3 User Manual.



Download: User Manual USB Capture Utility

Download: Product Catalogue

Download Software: USB Capture Utility V3


Magewell USB Capture SDI Plus

USB 3.0 Cable

Part number: 90062
