Magewell Eco Capture Range
ECO CAPTURE FAMILY
FLEXIBLE INTERFACE CHOICES
Offer single/dual/quad-channel video capture. Support HDMI (up to 4K) or SDI (up to 2K) signals.
 |
 |
 |
 |
||
|
Eco Capture Dual HDMI M.2 |
Eco Capture Dual |
Eco Capture |
Eco Capture Quad |
Offer single/dual/quad-channel video capture. Support HDMI (up to 4K) or SDI (up to 2K) signals.
Power consumption 30%-70% lower (model-dependent) than standard Pro Capture cards with similar input(s).
Use high-speed interface with M.2 connector (PCIe Gen2) providing sufficient bandwidth for capturing multiple HD signals or one 4Kp30 signal. The card is in M.2 standard size of 22 x 80 mm.
Users can use the OS and software they are familiar with to ensure high efficiency.
COMPATIBILITY OF MULTIPLE OPERATING SYSTEMS
Support Windows, Linux. Users can choose their favorite OS.
Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64). Linux (based on V4L2, support x86, x64 &ARM architecture).
FIRMWARE UPDATE
Optimize or enhance the performance or add functions to the products without changing the hardware. Users can update the firmware for multiple cards simultaneously by themselves.
POWERFUL AND EASY-TO-INTEGRATE SDK
Provide various APIs and advanced functions to Windows and Linux professional users.
SOFTWARE COMPATIBILITY
Support operating system native video capture APIs, including DirectShow, DirectKS, V4L2, ALSA and QuickTime. Support DirectSound based audio acquisition interface, extended interface based on IKsPropertySet. Compatible with almost all software based on DirectShow architecture.
COMPATIBILITY OF MULTIPLE OPERATING SYSTEMS
Support Windows, Linux. Users can choose their favorite OS.
Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64). Linux (based on V4L2, support x86, x64 &ARM architecture).
FIRMWARE UPDATE
Optimize or enhance the performance or add functions to the products without changing the hardware. Users can update the firmware for multiple cards simultaneously by themselves.
POWERFUL AND EASY-TO-INTEGRATE SDK
Provide various APIs and advanced functions to Windows and Linux professional users.
SOFTWARE COMPATIBILITY
Support operating system native video capture APIs, including DirectShow, DirectKS, V4L2, ALSA and QuickTime. Support DirectSound based audio acquisition interface, extended interface based on IKsPropertySet. Compatible with almost all software based on DirectShow architecture.
Users don’t need to select the input signal format to have it correctly recognized.
AUTO-DETECTION OF INPUT SIGNAL
When the signal is connected, the card will automatically detect the input signal and link the audio input with the video input.
SUPPORT 3D HDMI
Support 3 types of 3D HDMI signals: frame packed, top-and-bottom, and side-by-side.
TIMECODE
Eco Capture cards can analyze the time information (hour, minute, second and frame) in HDMI signal output by Sony/Canon DSLR.
CLOSED CAPTION
Eco Capture SDI cards support closed caption 608 by enabling this function in the driver filter and show the closed caption in the captured video. They can support closed caption 708 when SDK is used.
AUTO-DETECTION OF INPUT SIGNALWhen the signal is connected, the card will automatically detect the input signal and link the audio input with the video input.
SUPPORT 3D HDMI
Support 3 types of 3D HDMI signals: frame packed, top-and-bottom, and side-by-side.
TIMECODE
Eco Capture cards can analyze the time information (hour, minute, second and frame) in HDMI signal output by Sony/Canon DSLR.
CLOSED CAPTION
Eco Capture SDI cards support closed caption 608 by enabling this function in the driver filter and show the closed caption in the captured video. They can support closed caption 708 when SDK is used.

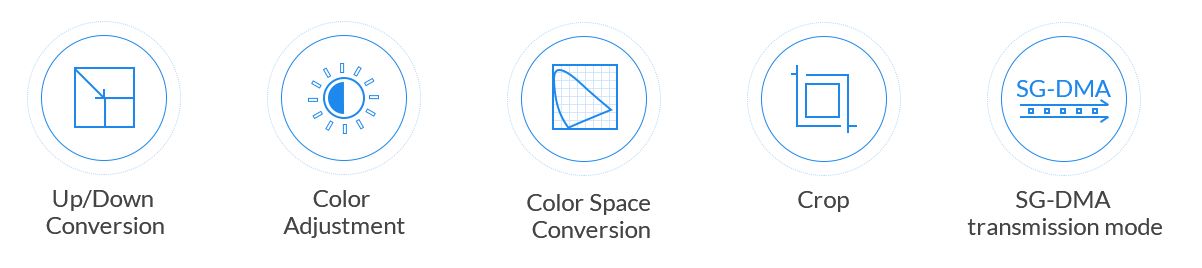

FPGA-based video processing, effectively reducing CPU usage.
Showing all 8 results
-
![Eco Capture 12G SDI 4K Plus M.2]()
MORE INFOMagewell Eco Capture 12G SDI 4K Plus M.2
£625.00 (ex VAT)Eco Capture 12G SDI 4K Plus M.2Single channel 4Kp60 capture card
SKU:- Captures 1-channel single-link 12G SDI or quad-link 3G SDI + embedded audio
- High throughout for capture and supports higher frame rates
- M.2 2280 standard size for small or portable systems
-
![Magewell Eco Capture SDI 4K Plus M.2]()
MORE INFOMagewell Eco Capture SDI 4K Plus M.2
£639.00 (ex VAT)Magewell PN:
Single channel 4K capture card
SKU: 115600000
- Captures SD/HD/3G/6G/12G SDI + embedded audio
The high-performance Magewell Eco Capture SDI 4K Plus M.2 captures one channel of 4K video up to 4096×2160 at full 60 frames per second over a single-link, 12G-SDI interface.
-

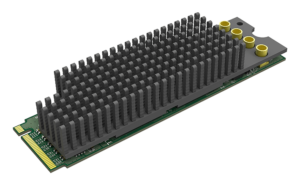

![Eco Capture Quad SDI M.2]()
MORE INFOMagewell Eco Capture Quad SDI M.2
£605.00 (ex VAT)Magewell PN: 11540
Four-channel 2K capture card
- Captures SD/HD/3G/2K SDI x 4 + embedded audio.
- High-speed interface with M.2 connector (PCIe Gen2) provides sufficient bandwidth for capturing multiple HD signals or one 4Kp30 signal.
- M.2 standard size of 22 x 80 mm (3.15 x 0.87 inch).
- Low Power Consumption. Power consumption 30%-70% lower (model-dependent) than standard Pro Capture cards with similar input(s).
- Multiple Replicated Capture Streams.
Magewell Eco Capture Product Select is designed for use in small and embedded systems where full-sized PCIe slots are unavailable or impractical
-
![]()

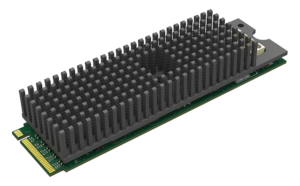

MORE INFOMagewell Eco Capture HDMI 4K M.2
£625.00 (ex VAT)Magewell PN: 11520
Single channel 4k capture card
- Captures one channels of 4K video up to 4096×2160 (including 3840×2160 Ultra HD) with HDMI + embedded audio
- Ultra-compact M.2 2280 size (22x80mm / 0.87” x 3.15”)
- M.2 2280 type M (PCIe Gen2 x4)
- Windows/Linux
The Magewell Eco Capture HDMI 4K M.2 Card allows you to connect an HDMI source to your computer and capture up to DCI 4K 4096 x 2160 resolution with embedded audio.
-

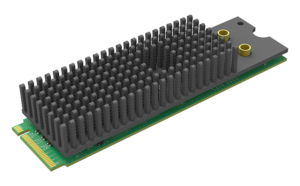

![Magewell Eco Capture Dual SDI M.2]()
MORE INFOMagewell Eco Capture Dual SDI M.2
£310.00 (ex VAT)Magewell PN: 11530
Two-channel 2K capture card
- Two channel 2K capture card
- SD/HD/3G/2K SDI x 2 + embedded audio
- Small form factor M.2 2280 Type M (PCIe Gen2 x4)
- Windows / Linux
The Magewell Eco Capture Dual SDI M.2 Card supports 2 x SDI input sources simultaneously and allows you to capture up to 2048 x 1080 resolution (via 2K/3G/HD/SD-SDI) with embedded audio from each source to your computer.
-

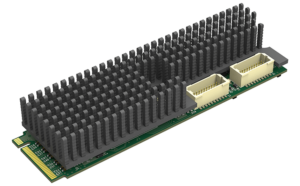

![Magewell Eco Capture Dual HDMI M.2]()
MORE INFOMagewell Eco Capture Dual HDMI M.2
£310.00 (ex VAT)Magewell PN: See description
Two-channel 2K capture card
- 2-Ch HDMI 2K Capture Card for PC/Linux
- 2 x HDMI Inputs
- Small Form Factor M.2/PCIe 2.0 Interface
- Up to 2048 x 2160 Resolution Per Input
The Magewell Eco Capture Dual HDMI M.2 Card supports two HDMI input sources simultaneously and allows you to capture up to 2048 x 2160 resolution with embedded audio from each source to your computer.
